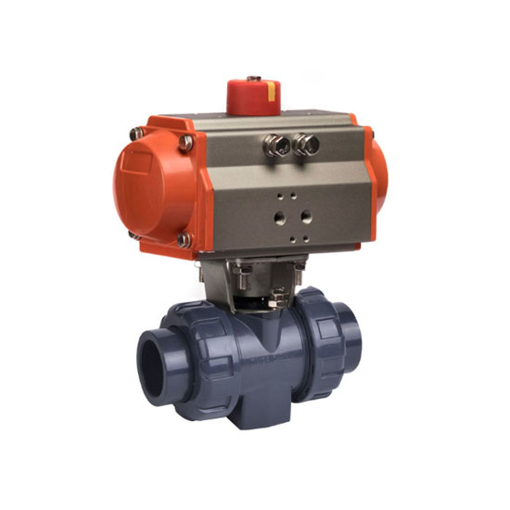

4" Pneumatic PVC Ball Valve, 2 Way

Buy 4 inch 2 way pneumatic PVC ball valve with high performance actuator online. Air actuated ball valve comes with 50mm (DN50) threaded port, UPVC/CPVC body material, working temperature from -10 °C to 90 °C, perfect for air and fluid service.

SKU: T-PBV-100A

Wholesale Price - The more you buy, the more you save

Quantity

10+

20+

50+

Price

3% OFF

5% OFF

10% OFF

$652.88

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

Favorable price industrial 4 in. 2 way union air actuated PVC ball valve with pneumatic actuator for sale. Compact full port pneumatic plastic ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. Our full port ball valve is made from high performance PVC material, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Model	T-PBV-100A
Power Source	Compressed Air
Actuator Type	Double Acting
Ball Valve Type	2 Way
Port Size	4 inch (DN100, 100mm)
Bore Size	100mm
Pressure Range	<=1000PSI (6.9MPa)
Air Pressure	0.3 - 0.8MPa
Air Supply Port	1/4 inch
Environment Temperature	-10 °C to 60 °C
Medium Temperature	UPVC: -10 °C to 45 °C, CPVC: -15 °C to 90 °C
Medium Pressure	1.6MPa
Seat Material	Plastic (PTFE)
Ball Valve Material	PVC/UPVC/CPVC
Actuator Body Material	Aluminium Alloy
Applicable Medium	Water, Air, Hot Water, Steam, etc.

Pneumatic Actuator Dimension

Actuator Dimension of Pneumatic Actuated Ball Valve

Actuator Dimension of Pneumatic Actuated Ball Valve 1

Q: Φ70/Φ102mm
A: 268mm
B: 120mm
C: 55mm
D: 65mm
E: 157mm
F: 125mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4"
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

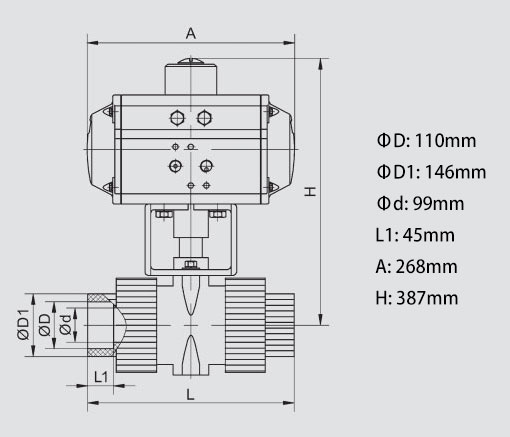

Body Dimension

2 Way 4 inch Pneumatic Actuated PVC Ball Valve Body Dimension
