When you want to mix concrete, cement, stones, mud, mortar, buy this electric mini concrete mixer that gives you high performance. It has 500 litre (17.5 cubic foot) small drum capacity, 400kg mixing capacity and 4kW motor power, a construction tool applies to engineering & construction, farm and so on.
Mini Concrete Mixer Specification
| Model |
T-500L |
| Drum Capacity |
500L (17.5 cu.ft) |
| Motor Power |
4kW |
| Motor Type |
Single phase motor |
| Motor Rotation Speed |
1380-1400 rpm |
| Voltage |
220-240V AC 50Hz |
| Speed of Mixing |
20r/min |
| Stirring Amount |
400kg |
| Water Supply Mode |
Manual |
| Mixing Way |
Automatic |
| Working Cycle Period |
1 min |
| Barrel Thickness |
2.5mm |
| Barrel Diameter |
750mm |
| Barrel Mouth Diameter |
420mm |
| Barrel Height |
1030mm |
| Overall Width |
790mm |
| Overall Length |
1600mm |
| Overall Height |
1360mm |
| Net Weight / Gross Weight |
110 / 115 kg |
| Application |
Construction industry |
| Warranty |
12 months |
| After-sales Service Provided |
Online support, no overseas service provided |
Features of Mini Concrete Mixer
- All-steel construction, mini concrete mixer has long life span.
- Large wheels, it's easy to move the mini concrete mixer to anywhere.
- Pure copper motor with strong power, high efficiency.
- The upper end of the motor is equipped with waterproof baffle, which can effectively protect the motor and make it more reliable to use.
- Suitable for construction site, homeuse, farm.

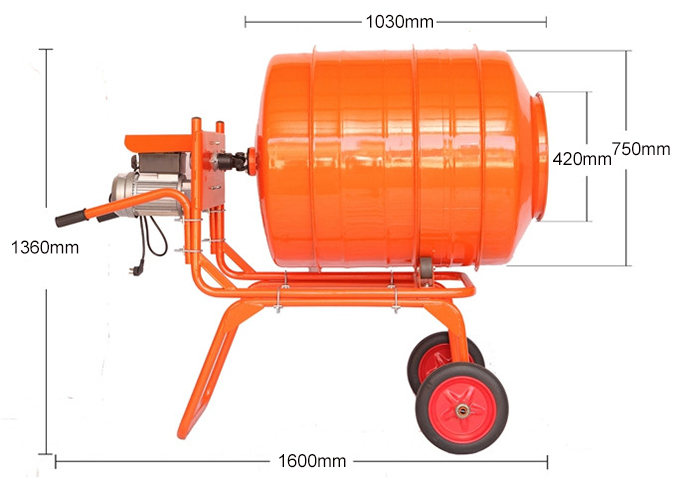

500L Concrete Mixer Dimension
Tips: 500L electric mini concrete mixer for rural concrete road construction
The client intends to build a rural concrete road with 1.5 meters wide, 3 kilometers long and 10 cm thick. Since the scale of this concrete cement project is not large, the customer wants to buy a small concrete mixer at wholesale price through Tool.com to mix concrete for engineering work. He wants to control the cost at around $100,000 and ask whether the use of a small concrete mixer can meet such requirements.
We assist customers to make economical and practical solutions for this case. According to calculations, the total cost of laying such a cement country road is about 180,000 dollars. In addition to labor costs, small concrete mixer prices and electricity costs etc., the overall construction cost about 200,000 dollars. It is suggested that since it is a country road, whether to consider reducing the concrete surface to about 6 cm, the budget can be reduced to about half. The client adopted our company's plan to reduce the cement hardening of the country road to 7 cm, which happened to control the budget at about 100,000 dollars. For this, the client was satisfied. Finaly, he purchase 3 sets of 500L (17.5 cu.ft) portable small concrete mixers to prepare for construction work.
