- Bench drill machine with automatic control switch and safety shield, has good safety performance.
- Tungsten steel shaft, high-precision diamond chuck, three-jaw clamping more tightly, without falling off the drill.
- 5-level variable speed, according to hardness of the processed material, select the corresponding speed, so as to obtain the desired effect.
- The fuselage is small in size, simple in operation, easy to maintain, not easy to wear, low in consumable cost, and saves construction time.
|Main Shaft Trip
|Spindle to Beat
||Axis to Column Surface
||Output Shaft to Workbench Surface
||Output Shaft Bottom Seat Surface
|The Base Size

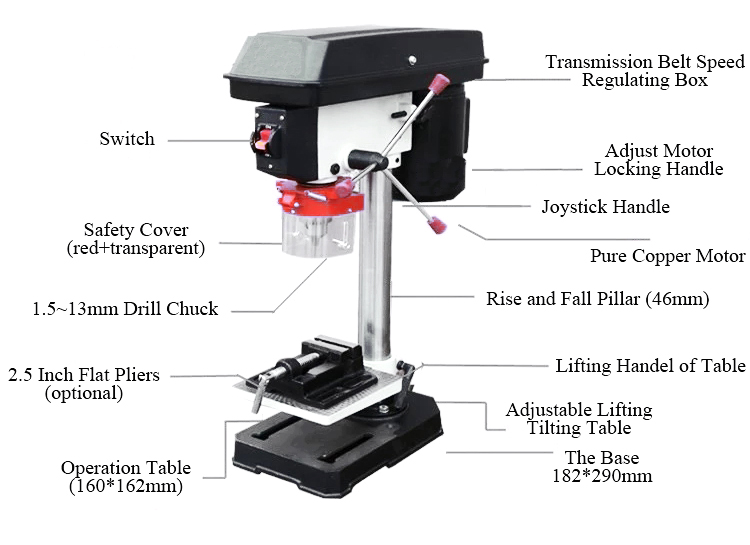

Structure Diagram of 13mm Bench Drill Machine
Dimension Drawing of 13mm Bench Drill Machine
Tips: What is a bench drill machine?
Bench drill machine is a small drill press that can be placed on worktable and the main shaft is vertically arranged. Drilling diameter of bench drill machine is generally 13mm~25mm.
Bench drilling machine motor drives the runner through 5 levels (or 12 levels) speed change, so that the main shaft can change a variety of speeds. The head frame can be moved up and down on the round column, and can be turned to any position around the center of the round column for processing, and adjusted to appropriate position and locked with a handle. Worktable can move up and down on the round column, and can rotate to any position around the column. When locking screw of the locking handle on workbench seat is loosened, workbench can also be inclined 45° to the left and right in vertical plane. If the workpiece is small, it can be drilled on worktable. If the workpiece is large, turn away the worktable and drilling directly on the bottom surface of drill press.
