2.56 Inch Electric Jig Saw, 2.4A

Electric jig saw can cut 2.56 inch wood or 0.3 inch steel, applicable materials include wood, plastic and metal. It has compact structure and small size, easy for handheld operation. Low price, suitable for DIY, novice and professional woodworking.

Specification

Features

• Compact structure, small size and lightweight for handheld easily.
• Electric jig saw has 4 pendulum action settings for fast cutting in different materials.
• T-shank blade, high efficiency. Dust extraction, environmental protection and safety.

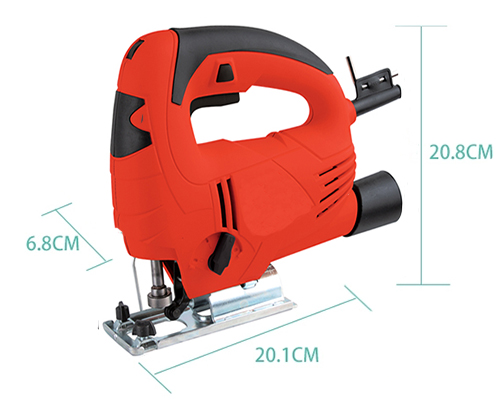

Electric Jig Saw Dimensions & Details

Saw Blade Installation for Electric Jig Saw

1. Open the quick chuck button.
2. Insert the saw blade.
3. Release the button, installation is complete.

As shown in the following diagram.

Guide Ruler Installation for Electric Jig Saw

1. Loosen the screws on guide ruler position.
2. Insert guide ruler.
3. Tighten the screws.

As shown in the following diagram.

Tips: What is the role of electric jig saw?

• Electric jig saw is mainly composed of universal motor, reduction gear, reciprocating rod, balance plate, bottom plate, switch, and speed regulator, etc.
• Working principle: The motor is reduced by gears. The eccentric roller sleeve on the big gear drives the reciprocating rod and saw blade to reciprocate for sawing.
• According to various curves (or straight lines), electric jig saw can be used to cut geometric figures with a smaller radius of curvature on various types of plates. Using saw blades with different teeth, it can cut wood, metal, plastic, rubber, leather, cardboard, etc. Electric jig saw is widely used in automobile, shipbuilding, wooden mold, furniture manufacturing, setting and advertising processing, etc.
