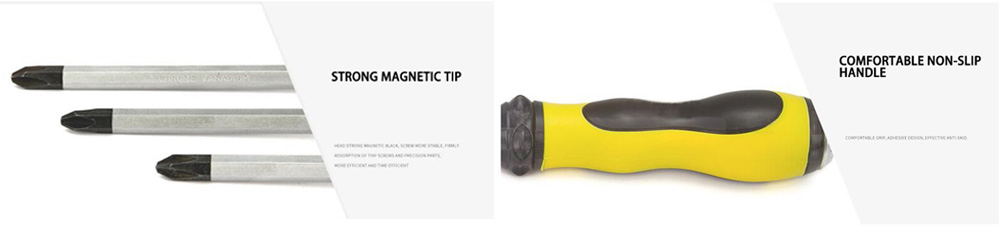

Low price Phillips screwdriver for wholesale. The Phillips head screwdriver features superior CR-V shaft, strong magnetic tip and comfortable non-slip handle, durable and easy to tighten and loosen PH2/PH3/PH4 cross-head screws.
|Size (Shaft Diameter*Length)
||6.3*100mm, 6.3*150mm, 8*200mm, 10*200mm, 12*200mm
||Chrome-Vanadium Steel (CR-V)
|Bit Holding Mechanism
Tips: Phillips Screwdriver Sizes
The Phillips screwdriver, also called cross-head screwdriver, generally has seven tip sizes from small to large: PH000, PH00, PH0, PH1, PH2, PH3, PH 4.
The general relationship between the diameter of the screwdriver shaft and the tip sizes as follows.
- The 4mm to 4.5mm shaft diameter generally achieve the cross head PH1, which can cover PH000, PH00, PH0, PH1. This series of Phillips screwdriver is basically a precision screwdriver set, which is necessary for disassembling small electronic equipment, glasses, watches, radios, recorders and the like. This is mainly sold based on set, of which PH000 is very small and not often used.
- The 6mm shaft is generally used for the cross head PH2 screw. This is the most commonly used specification in medium-sized screwdrivers, so you can buy one separately for fastening screws on the casing of monitors, radios, TVs, etc., and fixing transformers, etc.
- The 8mm shaft is used for PH3 and the 10mm shaft is used for PH4. Basically, it may be used in mechanical equipment. It is rarely used in electronic assembly, unless it is used as an electric box controller.
