    12 Ton Battery Powered Hydraulic Crimping Tool

    Hydraulic crimping tool for sale. Powered by 18V 3.0Ah lithium battery. Crimping force 12 ton (120KN), crimping range 16-400mm², with 12 dies. Stroke 42mm, cycle 6-18s. Used for terminal, cable, pipe, good quality and affordable price.
    SKU: T-HCPT-400
    $1,063.08
    i h
    Free shipping
    Delivery date: 6-12 days

    Rechargeable crimping pliers, lithium battery fast charging. Mainly used for crimping copper and aluminum terminals. Applicable crimp C-clamp and H-clamp.

    Specification

    Model T-EZ-400
    Crimping Force 12 Ton (120KN)
    Crimping Range 16-400mm2
    Stroke 42mm
    Crimp Times/Charge 120 times per saturation voltage (copper wire 150mm2)
    Crimping Cycle 6-18s (according to cable diameter)
    Voltage 18V Lithium
    Battery Capacity 3.0Ah
    Charging Voltage AC 100V~240V, 50Hz~60Hz
    Charging Time 2 hours
    Crimping Dies 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
    Weight 7.5 kg

    Features

    • The crimping joint can positioning accurately and the crimping speed is fast. 12 pairs of alloy dies replaceable, wear-resistant, impact-resistant, high strength but without losing accuracy.
    • It can control all tool functions with one key, and automatically return to the position after crimping.
    • Double speed and double acting hydraulic device design. During the process of low pressure crimping, piston advances rapidly. After the mold contacts terminal, piston advances slowly to ensure crimping quality.

    Full Set Product Diagram

    Full Set of 12 Ton Crimping Tool, 16-400mm² 12 Dies

    ① Hydraulic Crimping Pliers
    ② 1 Charger
    ③ 2 Batteries
    ④ 12 Dies

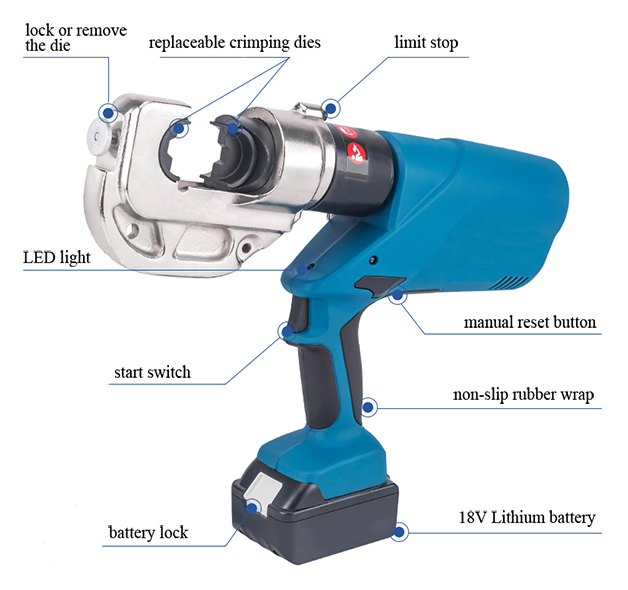

    Structure Diagram of Hydraulic Crimping Tool

    Structure Diagram of 12 Ton Crimping Tool, 16-400mm² 12 Dies

    Dimension Drawing of Hydraulic Crimping Tool

    Dimension Drawing of 12 Ton Crimping Tool, 16-400mm² 12 Dies

    H-type Clamp Crimping Steps Diagram

    H-type clamp crimping steps diagram

    Tips: Charging the crimping tool battery.

    When battery capacity indicator shows that the battery capacity is insufficient, it must be charged in time. A dedicated charger must be used for charging.

    Connect charger to power supply, the green indicator light flashes at a frequency of 1 Hz. Then insert battery into charger slot, and you will hear a "click" sound, which indicates that it is inserted in place. After 120 minutes (maximum 140 minutes), charging is complete. Press the battery button and pull out battery.
