    Air Wrench

    View as Grid List
    Sort by
    Display per page
    3/8" Air Impact Wrench, 500 ft/lb, 9000rpm

    3/8" Air Impact Wrench, 500 ft/lb, 9000rpm

    T-AIW-3500
    Low price 3/8 inch stubby air impact wrench for sale, maximum torque 500 ft/lb, no load speed 9000 rpm, air inlet size 1/4 inch, working pressure 0.6 – 0.7 MPa. With forward and reverse speed-control switch, best pneumatic impact wrench for loosening and tightening nuts or bolts.
    Wholesale $178.39
    1/2" Air Impact Wrench, 400 ft/lb, 8000rpm

    1/2" Air Impact Wrench, 400 ft/lb, 8000rpm

    T-AIW-2400
    Economical price 1/2" (half inch) air impact wrench online, maximum torque 400 ft/lb (550Nm), no load speed 8000rpm, air inlet size 1 /4 inch, working pressure 0.6 – 0.8 MPa. Best pneumatic impact wrench, used to change tires on small cars or tighten and loosen bolts of mechanical equipment.
    Wholesale $184.49
    1/2" Air Impact Wrench, 600 ft/lb, 7500rpm

    1/2" Air Impact Wrench, 600 ft/lb, 7500rpm

    T-AIW-12600
    Cheap 1/2" (half inch) air impact wrench for sale, maximum torque 600 ft/lb (850Nm), no load speed 7500rpm, air inlet size 1/4 in., working pressure 0.6 – 0.8 MPa. With speed-control switch, ergonomic handle, best for replacing tires on small cars and tightening or loosening mechanical equipment bolts.
    Wholesale $163.40
    1/2" Air Impact Wrench, 1000 ft/lb, 7000rpm

    1/2" Air Impact Wrench, 1000 ft/lb, 7000rpm

    T-AIW-21000
    Favorable price 1/2" (half inch) air impact wrench for sale, maximum torque 1000 ft/lb (1350Nm), no load speed 7000rpm, air inlet size 1/4 in., working pressure 0.6 – 0.8 MPa. Designed with forward/reverse switch, ergonomic handle, best air tool for tire work on small cars and mechanical equipment applications.
    Wholesale $201.88
    3/4" Air Impact Wrench, 650 ft/lb, 7000rpm

    3/4" Air Impact Wrench, 650 ft/lb, 7000rpm

    T-AIW-3650
    Cheap pneumatic impact wrench for sale, 3/4 inch drive, maximum torque 650 ft/lb (900Nm), no load speed 7000rpm, air inlet size 1 /4 inch, working pressure 0.6 – 0.8MPa. With lightweight and ergonomic design, perfect for loosening and tightening car tire lug nuts.
    Wholesale $193.92
    3/4" Air Impact Wrench, 1000 ft/lb, 5000rpm

    3/4" Air Impact Wrench, 1000 ft/lb, 5000rpm

    T-AIW-1000
    Affordable price 3/4 inch air powered impact wrench for sale, maximum torque 1000 ft/lb (1350Nm), no load speed 5000rpm, air inlet size 3/8 inch, working pressure 0.6 – 0.8MPa. Best pneumatic air impact wrench for loosening and tightening lug nuts and changing tires on small and medium cars.
    Wholesale $253.96
    1" Air Impact Wrench, 1200 ft/lb, 4500rpm

    1" Air Impact Wrench, 1200 ft/lb, 4500rpm

    T-AIW-1200
    1 inch drive heavy duty air impact wrench at favorable price, maximum torque 1200 ft/lb (1600Nn), no load speed 4600rpm, 3/8 in. air inlet, working pressure 0.6 – 1.0 MPa, perfect for tire jobs on small and medium cars.
    Wholesale $355.75
    1" Air Impact Wrench, 1600 ft/lb, 4200rpm

    1" Air Impact Wrench, 1600 ft/lb, 4200rpm

    T-AIW-11600
    Cheap 1 in. drive heavy duty pinless air impact wrench with D-handle for sale, maximum torque 1600 ft/lb (2200Nm), no load speed 4200rpm, air inlet size 1/2 in. working pressure 0.62 – 1.0 MPa. Best pneumatic impact wrench for loosening and tightening lug nuts and changing tires of cars.
    Wholesale $507.29
    1" Air Impact Wrench, 2400 ft/lb, 3600rpm

    1" Air Impact Wrench, 2400 ft/lb, 3600rpm

    T-AIW-12400
    Favorable price 1 inch drive heavy duty pinless air impact wrench with 8 inch extended anvil, max. torque 2400 ft/lb (3260Nm), no load speed 3600rpm, air inlet size 1/2 in., working pressure 0.65 – 1.0 MPa, D-handle design. Powerful pneumatic impact wrench, ideal for medium and large vehicle and mechanical equipment applications.
    Wholesale $693.73
    1" Air Impact Wrench, 4100 ft/lb, 3500rpm

    1" Air Impact Wrench, 4100 ft/lb, 3500rpm

    T-AIW-14100
    Best price 1" drive heavy duty pinless air impact wrench for sale, maximum torque 4100 ft/lb (5600Nm), no load speed 3500rpm, air inlet size 1/2 in. working pressure 0.63 – 1.0 MPa, 8 inch extended anvil, ideal air impact for vehicle tire work and mechanical equipemt applications.
    Wholesale $711.50
    3/8" Mini Air Ratchet Wrench, 25 ft/lb, 250rpm

    3/8" Mini Air Ratchet Wrench, 25 ft/lb, 250rpm

    T-ARW-825
    Wholesale price 2 in 1 mini air ratchet wrench for sale, maximum torque 25 ft/lb (34Nm), no load speed 250rpm, air consumption 5.0 CFM, 3/8 inch square drive head with an inner hole size 1/4 inch, for use with both different sizes of socket and 1/4" screwdriver bits. Stubby and lightweight air ratchet, best for fastening bolts and screws in tight spaces.
    Wholesale $131.97
    3/8" Air Ratchet Wrench, 65 ft/lb, 160rpm

    3/8" Air Ratchet Wrench, 65 ft/lb, 160rpm

    T-ARW-865
    Low price 3/8 inch air ratchet wrench for sale, maximum torque 65 ft/lb (88Nm), no load speed 160rpm, working pressure 0.62 MPa, air inlet 1/4 inch. Powered by air compressor or used as a hand tool. Lightweight but high torque, best for fastening bolts of automobiles and mechanical equipment.
    Wholesale $96.58
    1/4" 3/8" Air Ratchet Wrench, 30 ft/lb, 450rpm

    1/4" 3/8" Air Ratchet Wrench, 30 ft/lb, 450rpm

    T-ARW-4830
    Air ratchet wrench for sale with 1/4 inch screwdriver socket, 1/4" – 3/8" socket adapter, 5 pcs 6 point metric impact sockets. Maximum torque 30 ft/lb, no load speed 450rpm, working pressure 0.62 MPa, air inlet 1/4 in. Powered by compressed air, perfect for fastening bolts in narrow place.
    Wholesale $135.41
    1/2" Air Ratchet Wrench, 50 ft/lb, 180rpm

    1/2" Air Ratchet Wrench, 50 ft/lb, 180rpm

    T-ARW-250
    Economical 1/2" (half inch) air ratchet wrench at wholesale price, maximum torque 50 ft/lb (68Nm), no load speed 180rpm, 1/4 in. air inlet, high torque, powered by air compressor. Best for fastening bolts of automobiles and mechanical equipment.
    Wholesale $168.77
    1/2" Air Ratchet Wrench, 60 ft/lb, 160rpm

    1/2" Air Ratchet Wrench, 60 ft/lb, 160rpm

    T-ARW-260
    Wholesale price 1/2 inch air ratchet wrench, maximum torque 60 ft/lb (80Nm), no load speed 160rpm, working pressure 0.65 MPa, air inlet 1/4 inch, lightweight but high torque, powered by air compressor. Best air ratchet for fastening bolts in hard-to-reach places.
    Wholesale $69.98

    Wholesale price air impact wrenches and air ratchet wrenches for sale at Tool.com, we offer 1 inch, 1/2 inch, 3/4 inch and 3/8 inch air impact wrenches, 1/2 inch, 1/4 inch and 3/8 inch air ratchet wrenches for your choices. With the features of adjustable torque, ergonomic handle and forward and reverse switch, our air wrenches help you work easily and efficiently.

    Our 1 inch heavy duty pneumatic impact wrenches are suitable for medium and large automotive and mechanical equipment for use in loosening or tightening lug nuts and bolts. The 3/4 inch air wrenches, such as 3/4" air impact wrench with 650 ft/lb, are perfect for small and medium automobile, motorcycle and mechanical equipment use. 3/8 inch, 1/2 inch mini air impact guns are commonly used in household and replacing tires of small cars. 3/8", 1/4‘ and 1/2" air ratchet wrenches can be applied for small mechanical equipment, electronic appliances, and home appliances, especially in narrow places like air conditions and refrigerator compressor. So shop our best air wrenches at favorable price online now! Of course, if you don't find the air impact with required torque, please feel free to contact us and we are happy to help you!

    Features of Air Impact Wrench Parts

    High performance air wrenches are constructed from high quality materiels. Tool.com offers you a wide selection of qualified air impact and air ratchet from top China suppliers. The core parts of our air impact wrenches are made from high quality material with good hardness, stable performance, high durability, and long use life.

    Inner parts of air wrench details

    Twin-Hammer Impact Mechanism
    >>The inner parts are very important for air wrenches, which can affect user's working efficiency and its service life. The air impact on Tool.com are manily constructed with twin-hammer impact mechanism for stable performance and high durability. The inner parts of an air impact wrench generally come with a spindle, ring, cylinder, rotor, bearing and 6 blades.

    Spindle of air wrench details

    Spindle. It is made of high-strength nickel-molybdenum alloy which is hardened by carburizing and quenching and processed through precision CNC with high hardness and high precision to ensure a more stable blow torque.

    Rotor of air wrench details

    Rotor. Its material is from special alloy structural steel. It comes with professional heat treatment and high-precision CNC processing and provides impact fatigue resistance and high precision.

    Ring of air wrench details

    Ring. It comes from low-carbon chromium-nickel-molybdenum alloy and has carburizing and quenching heat treatment with stronger impact resistance and wear resistance.

    Bearing of air wrench details

    Bearing. It is constructed with industrial-grade deep groove ball bearings with smooth rotation, wear resistance, impact resistance and long service life.

    Cylinder of air wrench details

    Cylinder. It features high density powder metallurgy manufacturing and vacuum quenching oil immersion treatment with precise grinding, high precision and smooth working surface, making the motor output more powerful.

    Blades of air wrenc details

    Blades. They are made of new materials so that the breaking strength is increased by 50%, the thermal stability is increased by 80% and the wear resistance is good.

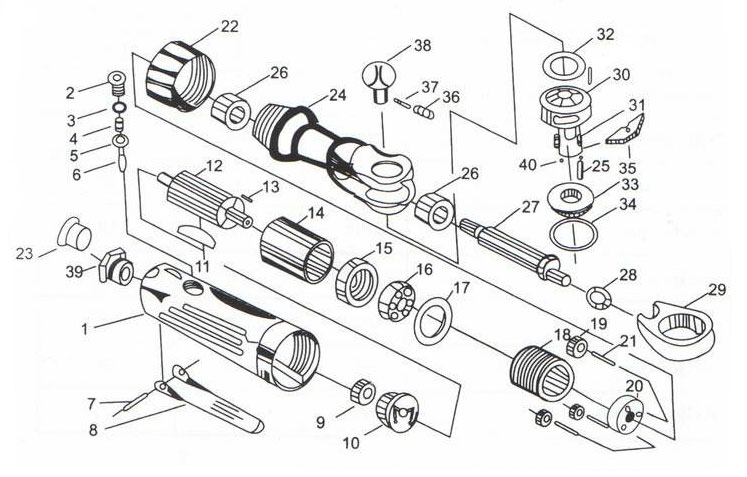

    Diagram of Air Ratchet Wrench

    Air ratchet wrench diagram

    No.

    Description

    No.

    Description

    No.

    Description

    No.

    Description

    1

    Housing

    11

    Rotor Blades

    21

    Gear Pin

    31

    Steel Ball

    2

    Throttle Cap

    12

    Rotor

    22

    Hexagon Cap

    32

    Washer

    3

    O-ring

    13

    Spring Pin

    23

    Air Hose Joint

    33

    Pushing Washer

    4

    Spring

    14

    Cylinder

    24

    Ratchet Handle

    34

    Retaining Ring

    5

    Throttle Valve Plunger

    15

    Front End Plate

    25

    Spring

    35

    Spring

    6

    O-Ring

    16

    Front Ball Bearing

    26

    Bearing

    36

    Ratchet Pawl

    7

    Spring Pin

    17

    Gasket

    27

    Crank Shafe

    37

    F/R Lock Pin

    8

    Trigger

    18

    Gear Sleeve

    28

    Drive Bushing

    38

    F/R Bar

    9

    Rear Ball Bearing

    19

    Gear

    29

    Ratchet Yoke

    39

    Air Hose Joint

    10

    Rear End Plate

    20

    Gear Plate

    30

    Ratchet Anvil

    40

    Hard Chrome Steel Ball

    Common Troubleshooting of Air Wrench

    Before repairing, assembling and disassembling the air impact wrench, be sure to cut off the gas supply.

    Failure Phenomenon

    Possible Reasons

    Solutions

    The air impact wrench does not rotate or the speed slows down and it cannot stop rotating after the trigger is released.

    The air throttle or air inlet of motor is blocked by foreign matters.

    Check and remove the foreign matters.

    Rotor blades are worn or cracked.

    Replace the rotor blades.

    The gear part or the bearing is damaged.

    Replace the gear or the bearing.

    The throttle O-ring is worn or out of position.

    Replace the throttle O-ring.

    The air wrench cannot stop rotating.

    The throttle O-ring is worn or out of position.

    The throttle stem is bent and deformed.

    Replace the throttle stem.

    The motor does not rotate.

    The rotor is blocked by foreign matter.

    Check and remove the foreign matter.

    The bearing was burnt out.

    Replace the bearing.

    The air pressure is too low.

    Increase the air pressure to the required value.

    The motor does not rotate but the exhaust volume is high.

    The rotor blades are blocked.

    Check and remove the foreign matter.

    The motor rotor is stuck due to rust.

    Remove rust and add lubricating oil.

    Safety Precautions of Air Wrench

    In order to enable you to use this air wrench correctly and not to be injured at work, please carefully read the following items before using it and strictly implement it as required.

    • The maximum use air pressure cannot exceed 10.0kg/cm².
    • When the pneumatic impact wrench is used for a long time, it should be avoided to directly use the quick air inlet connector.
    • When the air wrench is not used,be sure to turn off the air supply and unplug the tool and the air supply connector during replacing tool accessories or performing maintenance.
    • Please wear goggles or face protection at any time to prevent foreign matter or accidents from injuring your body during operating or replacing tool accessories.
    • When operating tools, do not wear jewelry, neckwear (scarves, ties, etc.), or wear loose clothing. Keep a certain distance between your body and tools to reduce the risk of entanglement.
    • Do not directly touch the rotating shaft to avoid injury to your hands or other parts of your body by tools. Wear gloves to protect your hands during operation.
    • Non-professionals cannot modify the tool structure by themselves, or replace other manufacturers' parts and accessories.
    • Do not leave too long air pipes in aisles or work areas to prevent staff from tripping and slipping.
    • Go for treatment and stop working immediately once injured at work.

    Maintenance of Air Wrench

    In order to keep your pneumatic wrench in good working condition for a long time, please maintain the tools according to the following items.

    • Use proper pressure air
      Please use the air pressure in the range of 6.3-8.0kg/cm². The exhaust volume of air compressor is 520L/min and the power up to 5HP or more. If the air pressure is too low, the working efficiency of the tool will be significantly reduced or even it fails to work normally. If the air pressure is too high, its working efficiency can be improved, but it is easy to damage the internal parts and shorten the service life of the air wrench.
    • Use proper air pressure pipe
      The inner diameter of the pneumatic pipe of the 1/2" air impact wrench must be 0.8 to 1.0cm. The longer the pipe is, the lower the pressure will be.
    • Use filter
      The moisture, dust, rust and other foreign matter in the compressed air are the main causes of premature aging of pneumatic tool parts. Therefore, it is necessary to install a filter. The foreign matter is filtered in the air to provide clean and dry gas for air wrench. The filter must have enough flow and be cleaned frequently, otherwise it will affect normal operation due to insufficient flow. In addition, after a period of time of usage, a large amount of moisture will accumulate inside the air compressor, which must be discharged regularly to ensure that the gas is dry and increase the life of the tool.
    • Lubrication of air wrench
      All pneumatic tools must be regularly and appropriately lubricated to ensure normal and long-term work. The correct way of lubrication is to achieve through the "three-point combination" device (water and oil grid). When the airflow passes through the water and oil grid, it will atomize the lubricating oil in the oil tank and send it into the tool inside to lubricate the relevant parts and reduce the wear rate of the parts. The water and oil grid device should be as close as possible to the tool air inlet.
      The choice of lubricant is also very important. Using incorrect lubricating oil will cause damage to the tools. Generally, there are special lubricating oil for air wrench tools, such as spindle oil, sewing machine oil or SEA 5 lubricating oil. Concentrated oil is strictly prohibited.
      If there is no water and oil grid device for the moment, drip 3-4 drops of lubricating oil from the air inlet of the tool before each work, or unscrew the screw at the pre-designed lubricating hole of the tool, fill in the lubricating oil and then lock it.
      For air wrenches with hammering rotation, user should check whether the lubricating oil in the hammering part is sufficient every month and use SEA 30 lubricating oil for lubrication.

    Note: If the pneumatic impact wrench tools suffer from insufficient torque, no rotation and impact force, etc. during use, please check and troubleshoot item by item according to the above instructions.
