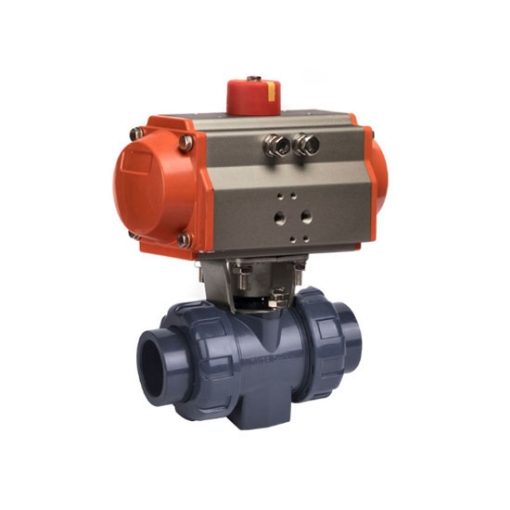

    3" Pneumatic PVC Ball Valve, 2 Way

    Economical price industrial 3 inch 2 way pneumatic PVC ball valve with high performance pneumatic actuator, requires compressed air to work. Port size 80mm (DN80) NPT, UPVC/CPVC body material, working temperature from -10 °C to 90 °C. Ideal for water and gas service.
    SKU: T-PBV-80A
    Wholesale Price - The more you buy, the more you save
    Quantity
    10+
    20+
    50+
    Price
    3% OFF
    5% OFF
    10% OFF
    $432.45
    i h
    Free shipping
    Delivery date: 6-12 days

    Buy favorable price 3 in. 2 way union air actuated PVC ball valve with pneumatic actuator online. Compact pneumatic plastic ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. Our full port ball valve is made from high performance PVC material, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

    Specification

    Model T-PBV-80A
    Power Source Compressed Air
    Actuator Type Double Acting
    Ball Valve Type 2 Way
    Port Size 3 inch (DN80, 80mm)
    Bore Size 88mm
    Pressure Range <=1000PSI (6.9MPa)
    Air Pressure 0.3 - 0.8MPa
    Air Supply Port 1/4 inch
    Environment Temperature -10 °C to 60 °C
    Medium Temperature UPVC: -10 °C to 45 °C, CPVC: -15 °C to 90 °C
    Seat Material Plastic (PTFE)
    Ball Valve Material PVC/UPVC/CPVC
    Actuator Body Material Aluminium Alloy
    Applicable Medium Water, Air, Hot Water, Steam, etc.

    Pneumatic Actuator Dimension

    Actuator Dimension of Pneumatic Actuated Ball Valve Actuator Dimension of Pneumatic Actuated Ball Valve 1 Q: Φ50/Φ70mm
    A: 250mm
    B: 105mm
    C: 49.5mm
    D: 55.5mm
    E: 145mm
    F: 115mm
    G: 30mm
    H: 80mm
    I: PF
    J: M6
    K: 1/4"
    O: 20mm
    P: 40.5mm
    S: 4mm
    T: 4mm
    U: 12mm
    V: 24mm
    W: 16mm
    X: 32mm

    Body Dimension

    2 Way 3 inch Pneumatic Actuated PVC Ball Valve Body Dimension

    Tips: What is Pneumatic PVC Ball Valve?

    2 way pneumatic PVC ball valve is the plastic ball valve with a pneumatic actuator. The pneumatic actuator has fast opening and closing speed, so it is commonly called pneumatic quick cut off ball valve. The air actuated ball valve are usually equipped with various accessories, such as solenoid valve, three pieces air source treatment, limit switch, locator, control box, etc., which realizes local or remote control. You can control the ball valve switch in the control room, which saves human resources and time to a great extent. Pneumatic ball valves can be closed tightly with only a 90 degrees rotation by the pneumatic actuator providing compressed air. It just need very little torque. The pneumatic actuator ball valve is not only used for water, solvent, acid, natural gas and other general working mediums, but also suitable for oxygen, hydrogen peroxide, methane and ethylene service.
