    3 Ton Battery Powered Hydraulic Pipe Crimper, 6 Dies

    Hydraulic crimper for crimping aluminum-plastic and stainless steel pipe. Powered by 18V 3.0Ah lithium battery. Crimping force 3 ton (32KN), working pressure 52Mpa, with 6 dies. Stroke 35mm, cycle 5-8s.
    SKU: T-HCPT-1550
    $1,526.85
    i h
    Free shipping
    Delivery date: 6-12 days

    Application: Connect aluminum-plastic pipes, PEX pipes, PB pipes, etc. with copper pipe fittings, copper joints. Press stainless steel sleeves, copper sleeves, aluminum sleeves.

    Specification

    Model T-EZ-1550
    Crimping Force 3 Ton (32KN)
    Rated Working Pressure 52Mpa
    Stroke 35mm
    Crimp Times/Charge 350 times DN20 stainless steel pipe fittings
    Crimping Cycle 5-8s (according to cable diameter)
    Voltage 18V Lithium
    Battery Capacity 3.0Ah
    Charging Voltage AC 100V~240V, 50Hz~60Hz
    Charging Time 2 hours
    Crimping Dies DN15, DN20, DN25, DN32, DN40, DN50
    Weight 6.5 kg

    Features

    • Precise crimping tube head, accurate positioning, 360° free rotation.
    • Electronic brake function, stop working when release the switch to ensure safe operation.

    Full Set Product Diagram

    Full Set of 3 Ton Hydraulic Pipe Crimper, 6 Dies

    ① Hydraulic Pipe Crimper
    ② 1 Charger
    ③ 2 Batteries
    ④ 6 Dies

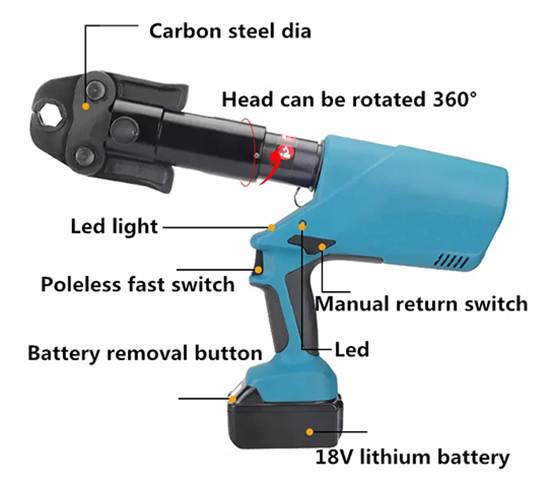

    Structure Diagram of Hydraulic Pipe Crimper

    Structure Diagram of 3 Ton Hydraulic Pipe Crimper, 6 Dies

    Dimension Drawing of Hydraulic Pipe Crimper

    Dimension Drawing of 3 Ton Hydraulic Pipe Crimper, 6 Dies

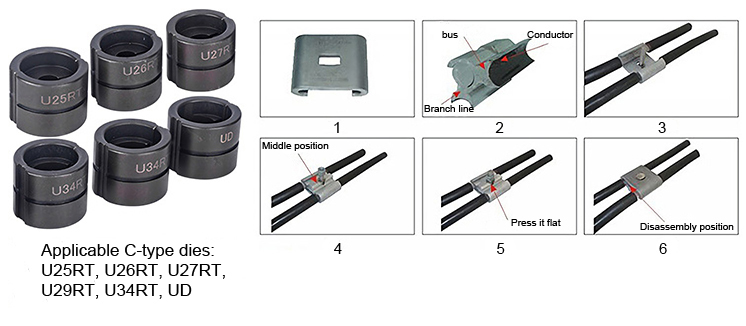

    C-type Clamp Crimping Steps Diagram

    C-type clamp crimping steps

    Tips: What should be done after crimping with battery powered pipe crimper?

    1. After crimping, remove the battery. First press the battery button, and then pull out the battery. As shown in Figure 1.
    2. Take out the crimping die. Press the die lock button first, and then pull out the crimping die. As shown in Figure 2 and Figure 3.
    3. Wipe clean the pipe crimper and accessories. Add a small amount of lubricating oil to movable parts and put them into tool box.

    Take off battery and die of hydraulic pipe crimper
