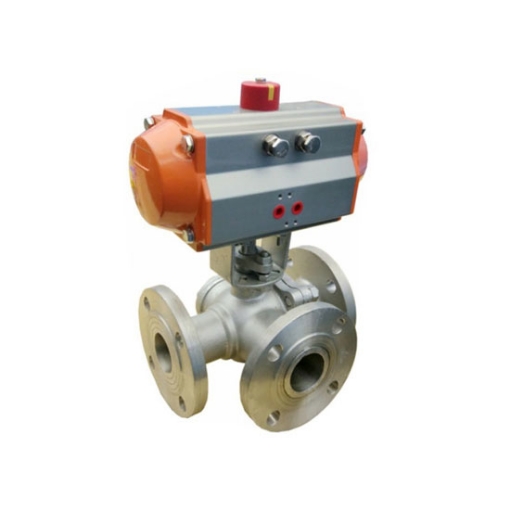

    5" Pneumatic Flanged Ball Valve, 3 Way

    Industrial 5 inch 3 way pneumatic flanged type ball valve with pneumatic actuator for sale. Air actuated ball valve comes with 5 in. flanged port, stainless steel body material, working temperature from -30 °C to 180 °C, perfect for water, gas control and other fluid service.
    SKU: T-PBV-125A
    *
    $3,187.48
    i h
    Delivery date: 6-12 days
    Overview

    3 Way flanged type ball valve with pneumatic actuator requires compressed air to work, which has such advantages as small fluid resistance, simple structure, high performance and reliable sealing. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

    Specification

    Ball Valve Model T-Q644F-16P-DN125 T-Q644F-16P-DN125
    Ball Valve Type (Optional) 3 Way Flanged Type, L Port 3 Way Flanged Type, T Port
    Port Size 5 inch (DN125, 125mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Medium Pressure 1.6MPa
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 304)
    Pneumatic Actuator Model ATO-AT160D ATO-AT160D
    Bore Size 160mm 160mm
    Air Supply Port 1/4 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Pneumatic Actuator Dimension

    Actuator Dimension of Pneumatic Actuated Ball Valve Actuator Dimension of Pneumatic Actuated Ball Valve 1 Q: Φ102/Φ125mm
    A: 450mm
    B: 193mm
    C: 89mm
    D: 104mm
    E: 226mm
    F: 197mm
    G: 30mm
    H: 80mm
    I: PF
    J: M6
    K: 1/4"
    O: 30mm
    P: 80mm
    S: 4mm
    T: 4mm
    U: 12mm
    V: 24mm
    W: 16mm
    X: 32mm

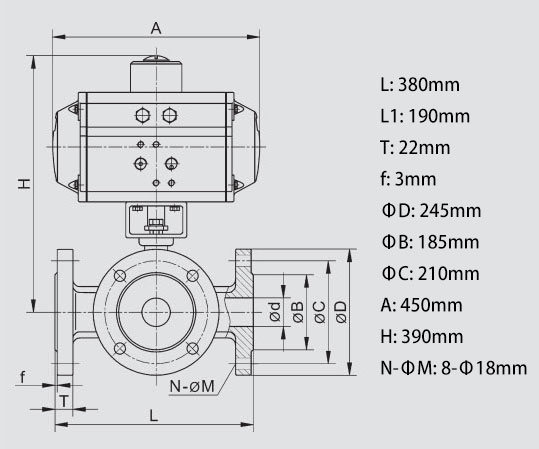

    Body Dimension

    3 Way 5 inch  Pneumatic Actuated Flanged Type Ball Valve Body Dimension

    Three Way Ball Valve Flow Patterns

    T Port:

    3 Way Pneumatic Ball Valve Flow Patterns T Port

    L Port:

    3 Way Pneumatic Ball Valve Flow Patterns L Port

    Tips: How to Use Pneumatic Flanged Ball Valve?

    1. Remove the protective cover on both sides of the flange end and clean the ball valve when it is fully open.
    2. Before installation, the pneumatic actuator and ball valve should be tested according to the specified requirement. It can be installed after the test passing.
    3. Flush and remove all the remaining impurities from the pipe before you connect with it. Those impurities will damage the valve seat and ball.
    4. During installation, please don’t use the pneumatic actuator as the lifting point to avoid the actuator and accessories damage.
    5. The air actuated ball valve should be installed in the horizontal or vertical direction of the pipeline.
    6. The pipeline should not sag or bear external forces. Pipe supports or supports can be used to eliminate the deviation of the pipeline.
    7. After connecting with the pipe, cross lock the flange connection bolt with the specified torque.
