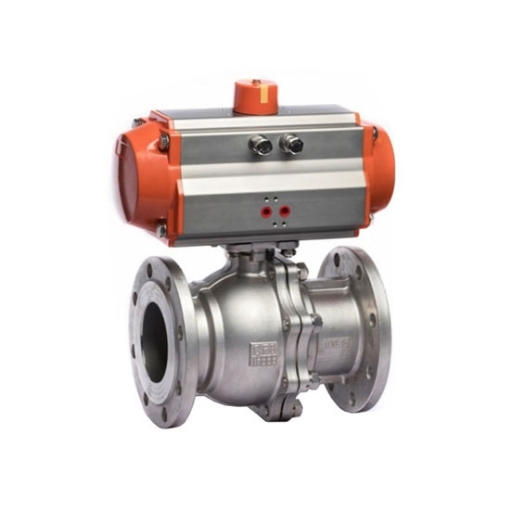

8" Pneumatic Flanged Ball Valve, 2 way

Add a Review

Affordable price 8 inch 2 way full port ball valve with pneumatic actuator for sale, requires compressed air to work. Air actuated ball valve comes with 200mm (DN200) flanged type port, stainless steel body material, PTFE seat material, working temperature from -20 °C to 180 °C.

SKU: T-PBV-200A

$2,342.86

Qty:

i h

Delivery date: 6-12 days

Overview

Industrial 8 inch 2 way large full port ball valve with pneumatic actuator is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid service.

Specification

Model	T-PBV-200A
Power Source	Compressed Air
Actuator Type	Double Acting
Ball Valve Type	2 Way
Port Size	8 inch (DN200, 200mm)
Bore Size	210mm
Pressure Range	<=1000PSI (6.9MPa)
Air Pressure	0.3 - 0.8MPa
Air Supply Port	1/4 inch
Environment Temperature	-10 °C to 60 °C
Medium Temperature	-20 °C to 180 °C
Seat Material	Plastic (PTFE)
Ball Valve Material	Stainless Steel (SS 316/304)
Actuator Body Material	Aluminium Alloy
Applicable Medium	Water, Air, Hot Water, Steam, etc.

Pneumatic Actuator Dimension

Actuator Dimension of Pneumatic Actuated Ball Valve

Actuator Dimension of Pneumatic Actuated Ball Valve 1

Q: Φ140mm
A: 530mm
B: 226mm
C: 113mm
D: 113mm
E: 297mm
F: 257mm
G: 30mm
H: 130mm
I: PF
J: M6
K: 1/4"
O: 30mm
P: 90mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

2 Way 8 inch Pneumatic Actuated Flanged Type Ball Valve Body Dimensions
