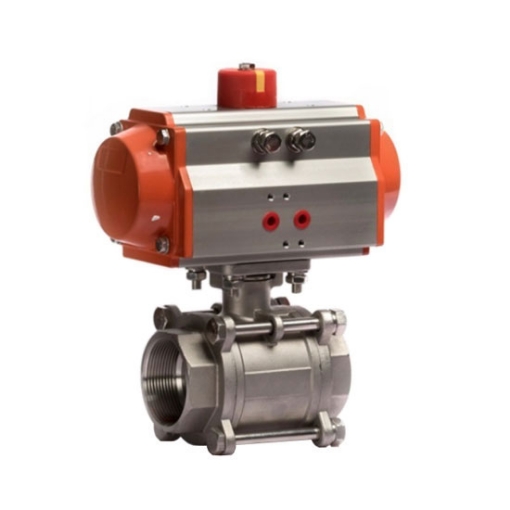

    1-1/2" Pneumatic Ball Valve, 2 Way, Stainless Steel

    Industrial 1-1/2 inch 2 way pneumatic actuated ball valve with pneumatic actuator for sale, requires compressed air to work, threaded port size 40mm (DN40), PTFE seat material, working temperature from -10°C to +180 °C. Ball valve body made from stainless steel, high performance and reliable.
    SKU: T-PBV-40A
    Wholesale Price - The more you buy, the more you save
    Quantity
    10+
    20+
    50+
    Price
    3% OFF
    5% OFF
    10% OFF
    $251.48
    i h
    Free shipping
    Delivery date: 6-12 days
    Overview

    1-1/2 inch two way full port ball valve with pneumatic actuator for sale online, requires compressed air to work. The seat material is made from PTFE that has good sealing performance. Compact air actuated pneumatic ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air fluid service.

    Features

    • Wear resistance. The valve spool of our pneumatic actuated ball valve is made from alloy steel with spray welding, so it will not wear out when you use it.
    • Good sealing performance. it has reliable sealing performance due to the seal of the air actuated ball valve is artificial grinding, it can’t be used until the spool and seal ring completely match.
    • Light Switch. The bottom of the pneumatic ball valve uses the spring to allow the seal ring and the valve spool hold together tightly, so it will not make much noise when you open or close it.
    • Widely application. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

    Specification

    Ball Valve Model T-Q611F-16P-DN40
    Ball Valve Type 2 Way Threaded Type
    Port Size 1-1/2 inch (DN40, 40mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Medium Pressure 1.6MPa
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 304)
    Pneumatic Actuator Model T-AT063D
    Bore Size 63mm
    Air Supply Port 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Pneumatic Actuator Dimension

    Actuator Dimension of Pneumatic Actuated Ball Valve Actuator Dimension of Pneumatic Actuated Ball Valve 1 Q: Φ36/Φ50mm
    A: 167mm
    B: 82mm
    C: 35mm
    D: 47mm
    E: 113mm
    F: 85mm
    G: 30mm
    H: 80mm
    I: PF
    J: M6
    K: 1/4"
    O: 20mm
    P: 40.5mm
    S: 4mm
    T: 4mm
    U: 12mm
    V: 24mm
    W: 16mm
    X: 32mm

    Body Dimension

    2 Way Pneumatic Actuated Stainless Steel Ball Valve Body Dimension

    Tips: How to Maintain Stainless Steel Pneumatic Ball Valve

    Stainless steel pneumatic ball valve is as known as pneumatic quick cut off ball valve because its switch speed is very fast. In daily use, it is better to maintain the pneumatic ball valve.

    • Before use, check whether the fixing screws of all connecting parts are fastened.
    • Check whether the solenoid valve works normally and there is no leakage phenomenon.
    • Check whether the positioner works normally and there is air leakage.
    • Observe whether there is air leakage in pneumatic actuator, especially at the connection of the valve stem and the two end covers.
    • Try to avoid too much floating ash covering the actuator and keep the working environment clean.
    • Check whether the air source treatment device, the filter, pressure reducing valve and oil mist device are normal, and observe whether the pressure is between 0.3 and 0.8MPa.
