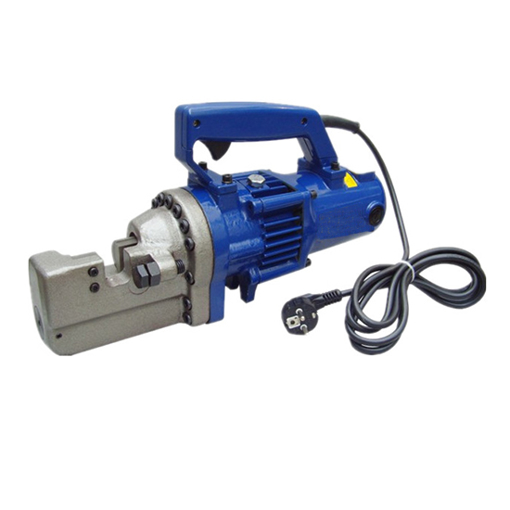

The electric rebar cutter provides the best way to cut rebar, steel bar, round bar, steel rod, iron rod, screw, etc. The portable rebar cutting machine is driven by hydraulic system and 1600W motor. No sparks and dust.
Specification
Model |
T-ERCT-RC22 |
Cutting Range |
Ф4-Ф22mm (1/6.35"~7/8") |
Voltage |
110V/60Hz, 220V/50Hz |
Output Power |
1.6kW |
Machine Length |
550mm |
Weight |
21.5kg |
Package |
steel case |
Inapplicable Materials: anchor chain, high hardness round steel, alloy with unknown composition, flat iron, stainless steel, various U-shaped locks.

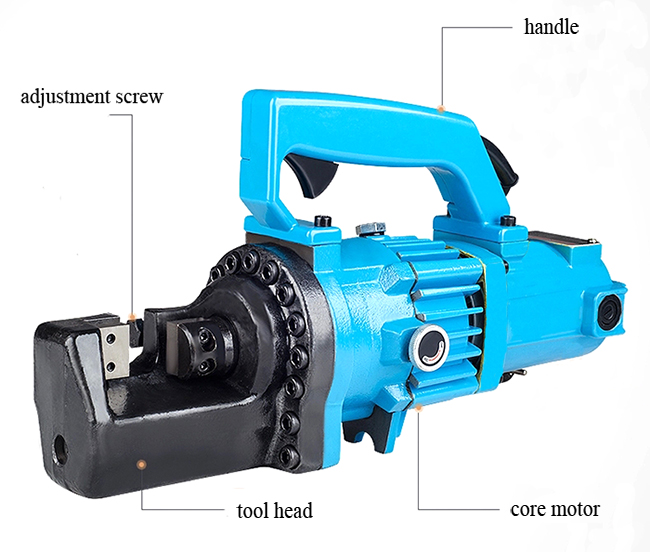

Electric Rebar Cutter Structure Diagram

Electric Rebar Cutter Standard Configuration

① electric rebar cutter |
② hydraulic oil |
③ open end wrench |
④spare screw for blade |
⑤ Allen wrench |
Tips: Electric rebar cutter usage guide.
- Surface of rebar workbench should be kept level with the lower part of cutter. The length of the workbench can be determined according to the length of the processed rebar.
- Before starting the electric rebar cutter, check and confirm that the cutter has no cracks, tool holder bolts are fastened, and protective cover is firm. Then check the gear meshing gap and adjust cutter gap.
- After starting the electric rebar cutter, make rebar cutter to operate without load for a period of time. After confirming that all transmission parts and bearings are operating normally, start cutting off.
- When the electric rebar cutter does not reach the normal speed, it must not start to cut. When cutting, use the middle and lower parts of cutter, hold rebar firmly, align the cutting edge, and cut quickly. Operator should stand on the side of the fixed blade and press rebar strongly to prevent the end of rebar from popping out and hurting people. It is strictly forbidden to hold rebar on both sides of the blade with both hands and leaning over to feed material.
