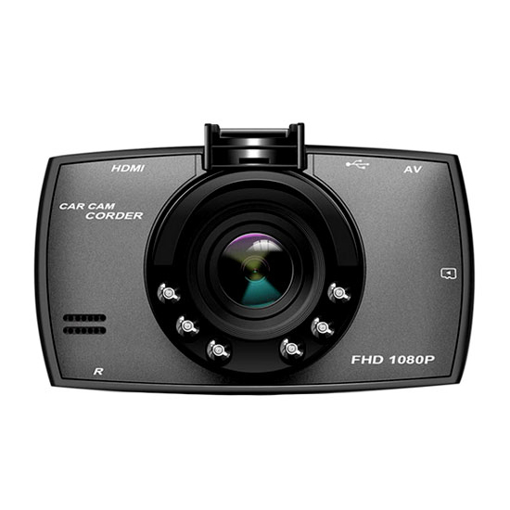

2.8" car dash cam has 4 interfaces for TF card, USB (power supply), AV and HDMI, a 170 degree front camera and a optional 120 degree rear camera. It supports 8G/16G/32G TF card for long time recording.
Features:
- Reverse image
Car-level rear camera supports reverse image, and automatically switches to this mode when the car is reversing.
- 24-hour parking monitoring
DVR dash cam can be equipped with a step-down cable and realize 24-hour parking monitoring. It can guard all-weather real-time monitoring of theft, scratching, and recording accidents.
- Replay viewing
Use the car dash cam to view the playback video anytime, anywhere, and observe the recorded content to quickly resolve driving disputes.
- Loop recording
Enable 1/3/5 minutes loop recording.
- Motion detection
Intelligent detect movement and recognize moving objects.
- Blank screen recording
The video can be recorded even when the screen is off, which can save power consumption and improve driving safety.
- Full-automatic working
Dash cam will automatically start to record when the car is ignited, without manual operation. After stopping and powering off vehicle, the dash camera will automatically shut down after a 10-second delay to protect the car battery. (Except when the cigarette lighter is continuously powered after the car is off, or the dash cam is connected to an additional battery.)
Specification:
| Basic |
Model |
T-DCAM-G30 |
| Weight |
0.3kg |
| Size |
143*113*90mm |
| Certification |
CE, FCC, RoHS |
| Warranty |
12 months |
| Packing included |
1 * dash cam 1 * cigarette lighter power cable 1 * bracket 1 * TF card 1 * rear camera (optional) 1 * user manual 1 * color box 1 * step-down cable 12VDC to 5VDC (optional) |
Dash cam
|
Display |
2.8 inch IPS screen |
| Display resolution |
1080P |
| Visual angle |
Front camera: 170° Rear camera: 120° |
| Camera pixel |
5.0MP |
| Power supply |
5V/1A (convert from 12VDC cigarette lighter) |
| Supporting memory card* |
8G/16G/32G (TF card) |
| System language |
English, French, Germany, Thai language, Japanese, Spanish, Russian, Portuguese, Simplified Chinese, Traditional Chinese |
| Weight |
50g |
| Size |
87*49*15mm |
| Color |
Black |
| Interfaces |
TF card, USB (power supply), AV, HDMI |
| Installation |
Installing on front windshield, fixed by suction cup bracket |
| Functions |
Parking monitoring (optional) Replay viewing Loop recording Motion detection Blank screen recording Reverse image (optional) |
| Master Carton |
Set/Carton |
1 |
5 |
10 |
50 |
| 1 carton gross weight |
0.3kg |
1.7kg |
3.35kg |
15.8kg |
| 1 carton size |
142*113*90mm |
468*160*145mm |
468*308*255mm |
592*308*460mm |
Tips: Does the dash cam still record video after the car is turned off?
It depends on whether the dash cam has a parking monitoring function. If not, it is of course not possible to record video after the car is turned off. Even the car dash cam with parking monitoring mode will only start recording when necessary.
First of all, the parking monitoring mode of the dash cam is not always on, because the recorder generally uses a step-down cable with low-voltage protection function to minimize the loss of the car battery. When the vehicle is stopped and turned off, the recorder will enter a low energy consumption state. Once the car is collided, or an object is detected to move, the system will immediately wake up the parking monitoring function, and then record the monitoring image. So as long as it is used scientifically, there is no need to worry too much about the power consumption of the front rear dash cam.
Will the parking recording cause low battery?
For the dash cam without screen, its own power consumption is not very high, coupled with the protection of the step-down cable, even if it is always on, it will not cause low battery. But for the recorder with a screen display, it not only costs a lot of electricity, but also is likely to lose electricity under the protection of the step-down cable, which will affect the start of the engine. So if the car is not used for more than a week, it is better to turn off the parking recording function of dash cam.
