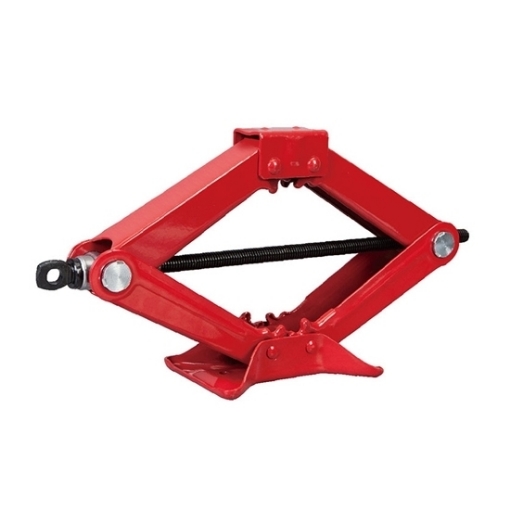

1 Ton Automotive Scissor Jack

1 ton scissor jack is an essential automotive tool. This easy lift scissor stabilizer offers versatility, enabling the lifting of a wide range of vehicles. Whether you need to raise cars, RVs, trucks, motorcycles, travel trailers, campers, or other small vehicles, this automotive scissor jack is up to the task.

Specification

• Model: T-T10102-GS
• Capacity: 1 Ton
• Min. Height: 88mm
• Max. Height: 380mm
• Total Length: 426mm
• Stroke with Rated Load: 200-370mm
• Net Weight: 2.5kg

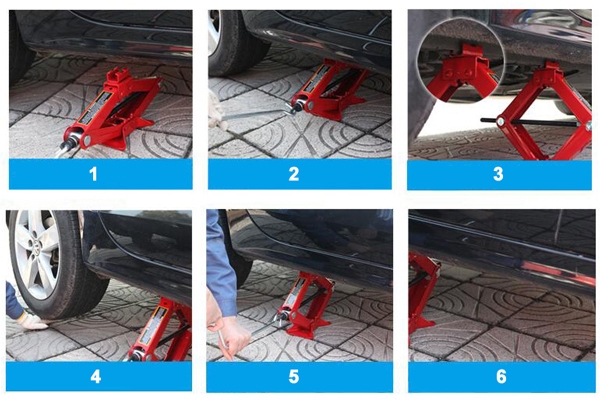

How to Use a Car Scissor Jack?

1. Position the lightweight scissor jack under the vehicle’s designated lifting point, ensuring it rests securely on a flat, stable surface.
2. Turn the mechanical handle clockwise to engage the industrial scissor jack mechanism, gradually raising the jack toward the chassis.
3. Once the stainless steel saddle makes firm contact, continue cranking to lift the vehicle safely off the ground.
4. With the tire elevated, use this high-quality scissor jack to perform maintenance or tire replacement.
5. After repairs, rotate the handle counterclockwise to lower the vehicle steadily, maintaining control throughout.
6. Collapse the low-profile jack fully, then store it in your trunk for emergency use or future projects.

Tips: What is a scissor jack used for?

A scissor jack is a mechanical device crafted for elevating substantial objects, mainly applied in automotive and industrial scenarios. It is made up of a compact, foldable framework, with a series of linked rods creating a scissor-like mechanism. When the user rotates a manual handle, the scissor jack either expands to lift the load or contracts to lower it.

In the auto field, portable scissor jacks are commonly included in vehicles. Their lightweight and low-profile design enables easy storage in the trunk, making them an essential scissor jack tool for drivers. They are typically used for activities like changing flat tires, carrying out minor fixes, or doing routine upkeep, offering a reliable way to lift one side of the car.

Universal stabilizer jacks, meanwhile, are robust and sturdy versions, fulfilling diverse functions in factories and warehouses. These large-sized scissor stabilizer jacks are utilized to hoist heavy machinery, support elevated work platforms, and provide stable elevation for various operations. Scissor jacks are valued for their simplicity, reliability, and capacity to offer controlled vertical movement within constricted spaces, whether for an automotive emergency or an industrial task.
