    190W 1/4" Electric Die Grinder

    Electric die grinder for sale. Mini size, pencil-type. Output power 190W, rated voltage 220V/50Hz, bits clamping range 0.6-6.5mm (1/4 inch). 6-level variable speed 15000~27000 rpm. Can matched with various grinding bits.
    SKU: T-ETDG-190
    Wholesale Price - The more you buy, the more you save
    Quantity
    20+
    50+
    100+
    200+
    Price
    3% OFF
    5% OFF
    7% OFF
    10% OFF
    $72.87
    This product has a minimum quantity of 2
    i h
    Free shipping
    Delivery date: 6-12 days

    The electric die grinder can be used to process materials with high hardness such as metal/jade/glass. Woodworking carving, peeling and polishing, handicraft gap cleaning, lettering, small stone cutting, rust removal, drilling, etc. Small size, compact structure, best quality and good price.

    Specification

    Model T-JD3321C
    Power Supply Mode Plug-in
    Rated Power 190W
    Rated Voltage 220V/50Hz
    Clamping Diameter 0.6-6.5mm (1/4 inch)
    No-Load Speed 15,000-27,000 rpm
    Attachment sesame drill bit*2, sandpaper roll (large)*10, copper clip core*10, twist drill*5, connection rod*1
    Size 270mm*56mm
    Weight 950g

    Electric Die Grinder Applications

    Application of 190W 1/4 Inch Electric Die Grinder

    Electric Die Grinder Attachment Diagram

    Configuration of 190W 1/4 Inch Electric Die Grinder

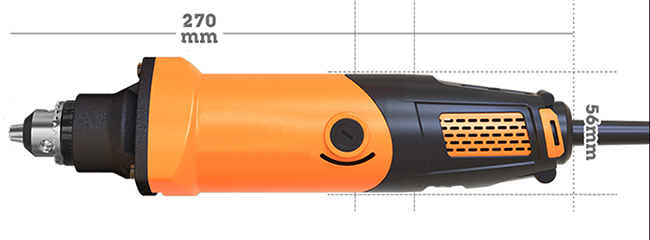

    Electric Die Grinder Dimension Diagram

    Dimension Diagram of 190W 1/4 Inch Electric Die Grinder

    Tips: Grinding bit installation for 190W cordless electric die grinder.

    Grinding bit installation of 190W cordless die grinder, step 1

    Insert the wrench used to rotate chuck into chuck round hole.

    Grinding bit installation of 190W cordless die grinder, step 2

    Turn the wrench counterclockwise to open chuck jaws.

    Grinding bit installation of 190W cordless die grinder, step 3

    Insert the grinding bit and tighten the chuck clockwise with a wrench.
