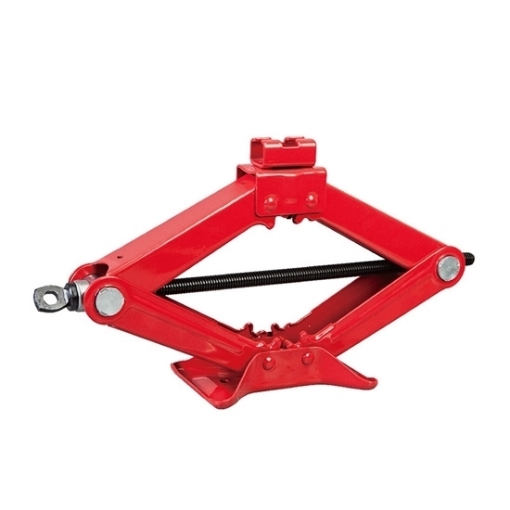

2 Ton Automotive Scissor Jack

Get a 2 ton scissor jack online. The compact size of the scissor stabilizer fits car trunks or RV storage. Easy to use and compatible with cars, trucks, bikes, and campers, it delivers secure, efficient lifting for all your automotive needs.

Specification

• Model: T-T10202-GS
• Capacity: 2 Ton
• Min. Height: 120mm
• Max. Height: 395mm
• Total Length: 450mm
• Stroke with Rated Load: 260-390mm
• Net Weight: 3.5kg

How to Use a Car Scissor Jack?

1. Position the lightweight scissor jack under the vehicle’s designated lifting point, ensuring it rests securely on a flat, stable surface.
2. Turn the mechanical handle clockwise to engage the industrial scissor jack mechanism, gradually raising the jack toward the chassis.
3. Once the stainless steel saddle makes firm contact, continue cranking to lift the vehicle safely off the ground.
4. With the tire elevated, use this high-quality scissor jack to perform maintenance or tire replacement.
5. After repairs, rotate the handle counterclockwise to lower the vehicle steadily, maintaining control throughout.
6. Collapse the low-profile jack fully, then store it in your trunk for emergency use or future projects.

Tips: Difference between bottle jack and scissor jack

Bottle jacks and scissor jacks are two commonly used auto lifting tools, but they differ significantly in design, application, and lifting capacity.

A bottle jack, also known as a hydraulic jack, operates using hydraulic pressure to lift heavy loads. It features a cylindrical body shaped like a bottle, with a piston that moves vertically. Bottle jacks are capable of lifting extremely heavy-duty vehicles, such as trucks or SUVs, with minimal effort. They offer high lifting capacity and are ideal for situations that require lifting large weights. However, bottle jacks are bulkier and require a higher minimum clearance under the vehicle, which may limit their use for low profile cars.

In contrast, a scissor jack tool is an universal jack that uses a lead screw mechanism to expand or contract the diamond-shaped frame. It is lightweight, compact, and often included as universal equipment in passenger cars. A scissor jack tool is commonly used during emergency roadside tire changes and can be easily stored in the trunk. However, it has a lower lifting capacity and requires more physical effort to operate compared to bottle jacks.

In summary, bottle jacks are more powerful and better suited for heavy-duty lifting, while scissor stabilizers are more portable and convenient for light-duty tasks and short-term use. Choosing between them depends on your vehicle type and lifting needs.
