    3/4" Corded Electric Drill, 1.6A

    Cheap corded electric drill for sale. Max drill bit diameter 3/4 inch (20mm) for wood, 10mm for metal, power supply 220V 1.6A or 240V 1.5A for selection, no-load speed 0-750 rpm. Torque adjustment, max 20 N.m. Low price with high quality.
    SKU: T-CDED-350
    *
    WHOLESALE PRICE - The more you buy, the more you save
    Quantity
    20+
    50+
    100+
    200+
    Discount
    3% OFF
    5% OFF
    7% OFF
    10% OFF
    $72.31
    Minimum purchase quantity: 2
    i h
    Free shipping
    Delivery date: 6-12 days

    Specification

    Model T-XJZ08-10A
    Max. Drill Bit Diameter wood: 3/4 inch (20mm)
    metal: 10mm
    Rated Voltage 220V/50Hz, 240V/60Hz
    Rated Power 350W
    Rated Current 1.6A, 1.5A
    No-Load Speed 0-750 rpm
    Chuck Capacity 10mm
    Max. Torque 20 N.m
    Weight 1.3 kg

    Corded Electric Drill Functions

    • Wood drilling
    • Metal drilling
    • Brick drilling
    • Tile drilling

    Corded Electric Dril Functions

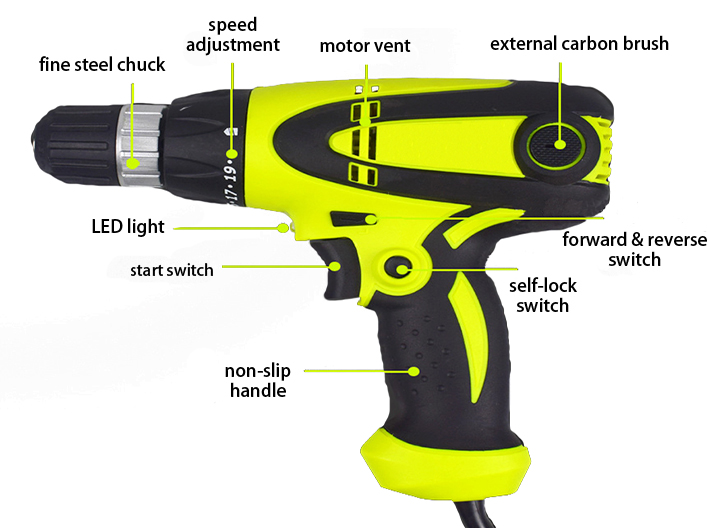

    Corded Electric Drill Structure Diagram

    Structure Diagram of 3/4 Inch Corded Electric Drill, 1.6A

    Drill Bit Installation

    1. Turn the chuck counterclockwise with your right hand to loosen the jaw core of chuck.
    2. Insert the drill bit.
    3. Fix the lower part of chuck with your left hand, turn clockwise with your right hand to clamp the drill bit firmly.

    Drill Bit Installation of 3/4 inch Corded Electric Drill, 1.6A

    Tips: What is a corded electric drill?

    Corded electric drill is a drilling tool powered by an AC power source. It needs to be used by connecting a cable to power source. It is a kind of hand-held power tool.

    Corded electric drill is widely used in construction, decoration, furniture and other industries to drill holes in metal materials, wood, plastics and other objects.

    Corded electric drill is mainly composed of drill chuck, output shaft, gear, rotor, stator, shell, switch and cable. When equipped with forward and reverse switch and electronic speed control device, corded electric drill can be used as an electric screwdriver.



    Existing reviews
    Hans 10/9/2020 6:18 PM
    Solutions to problems encountered in the operation of corded electric drills
    I cannot insert the drill bit with an electric drill because the chuck is too tight to open. I have followed the instructions in the manual, but it still has no effect. how to solve this problem?
    A manager responded to this review
    Hello, I am glad to help you solve the problem. You can try to put the drill bit upside down and release and open it while holding the chuck. If this doesn't work, you can always put the chuck in the vise and place the drill bit upside down. Either of these two suggestions can work. Hope my answer is helpful to you.
    Was this review helpful? Yes No (0/0)
