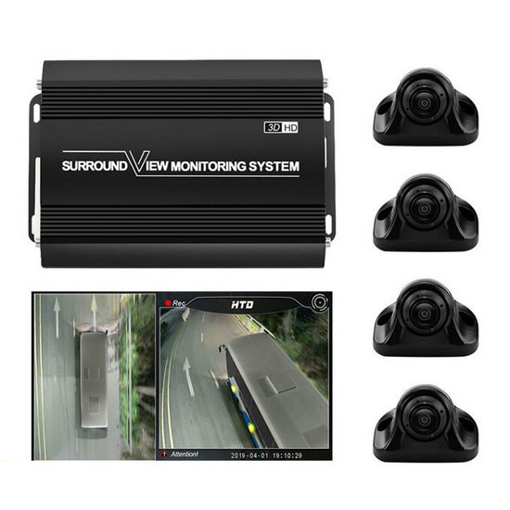

360-degree truck dash cam use 4 waterproof cameras for bird's eye view monitoring. It can be connected to AV monitor or VGA monitor with MDVR for outside & inside monitor on one display.
Features:
- 4 cameras recording
Front, rear, left & right cameras record real-time traffic status simultaneously. The angle of left & right cameras can be adjusted.
- 360 degree reverse image
4 car-level fish-eye cameras seamlessly compose a 360-degree panorama for a birds eye view on display. It helps the driver to clearly understand the surrounding environment of the vehicle and makes reversing more convenient.
- 3D vision
3D vision provides more field of view. 3D truck/bus model can be selected.
- G-sensor
Turn on collision sensing function. After an emergency brake or collision, 360 dash cam will automatically lock the current video without being deleted/ overwritten, and save it as the accident evidence.
- Replay viewing
Use the car dash cam to view the playback video anytime, anywhere, and observe the recorded content to quickly resolve driving disputes.
- Loop recording
Whenever the memory card is full, the dash cam will automatically loop cover the previously unlocked videos, which will save storage space and save the most recent videos at all times.
- Super night vision
In the absence of light, the night vision function is still powerful. Even in a very dark environment, cameras can still shoot a clear picture.
- Automatic calibration with tape
360 dash cam supports system one-key automatic calibration. Accurate algorithm will truly achieve zero deviation of the image, and ensure no blind area in the display. Adhesive tape splicing is more convenient to operate than traditional calibration map.
Specification:
Basic |
Model |
T-DV360-3DC |
Weight |
2.4kg |
Size |
300*250*100mm |
Supporting language |
English |
Certification |
CE |
Warranty |
12 months |
Packing included |
1 * 360 degree parking system host 4 * cameras (front, rear, left & right) 1 * remote control 1 * remote receiver 4 * extension cables for cameras 1 * wire harness 1 * video output cable 1 * calibration tape set 1 * installation accessories set 1 * user manual 1 * color box |
Display |
Display * |
No display (connect to car DVD reversing display) External display Note: If the reversing display is the original car own display, you need to install a decoder. If the reversing display is a non-original display on the market, you don't need a decoder. If there is no reversing display in vehicle, you can select our external display. |
Display mode |
3D 360° view & front view, 3D 360° view & rear view, 3D 360° view & left view, and 3D 360° view & right view |
Camera |
Type of lens |
Fish-eye lens |
Resolution |
1920*1080P@30fps |
Visual angle |
180° |
Protection class |
IP68 |
360 degree parking system host
|
Size |
122*72*25mm |
Working voltage |
9.6~33VDC |
Rated power |
7W |
Video output |
CVBS, AHD, VGA |
Vehicle model |
Truck/bus, maximum size 15*3m |
Supporting memory card |
Maximum 128G (TF card or USB card, above C10) |
Functions |
4 cameras recording synchronously 360 degree reverse image 3D vision G-sensor Replay viewing Loop recording Super night vision Automatic calibration with tape |
Calibration steps for 360-degree truck dash cam
Step 1: Paste the calibration tape
The length between the adjacent 2 red points is 0.5m. The frame size is 13*2.5m.

Step 2: Drive the vehicle and park it in the frame of tape

Step 3: Place calibration box (size: 90*25*10cm)
8 blue squares are the points where calibration boxes should be placed.

Step 4: Adjust camera angle and mark the calibration points

Step 5: Enter 360-degree view monitoring system to finish calibration
