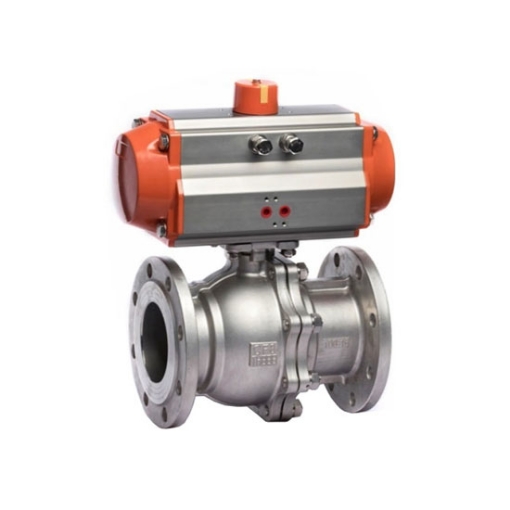

    6" Pneumatic Flanged Ball Valve, 2 Way

    Affordable price 6 inch 2 way full port ball valve with pneumatic actuator for sale, requires compressed air to work. Air actuated ball valve comes with 150mm (DN150) flanged type port, stainless steel body material, working temperature from -20 °C to 180 °C.
    SKU: T-PBV-150A
    $1,637.15
    i h
    Delivery date: 6-12 days

    Industrial 6 inch 2 way large full port ball valve with pneumatic actuator is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid service.

    Specification

    Model T-PBV-150A
    Power Source Compressed Air
    Actuator Type Double Acting
    Ball Valve Type 2 Way
    Port Size 6 inch (DN150, 150mm)
    Bore Size 160mm
    Pressure Range <=1000PSI (6.9MPa)
    Air Pressure 0.3 - 0.8MPa
    Air Supply Port 1/4 inch
    Environment Temperature -10 °C to 60 °C
    Medium Temperature -20 °C to 180 °C
    Seat Material Plastic (PTFE)
    Ball Valve Material Stainless Steel (SS 316/304)
    Actuator Body Material Aluminium Alloy
    Applicable Medium Water, Air, Hot Water, Steam, etc.

    Pneumatic Actuator Dimension

    Actuator Dimension of Pneumatic Actuated Ball Valve Actuator Dimension of Pneumatic Actuated Ball Valve 1 Q: Φ102/Φ125mm
    A: 450mm
    B: 193mm
    C: 89mm
    D: 104mm
    E: 226mm
    F: 197mm
    G: 30mm
    H: 80mm
    I: PF
    J: M6
    K: 1/4"
    O: 30mm
    P: 80mm
    S: 4mm
    T: 4mm
    U: 12mm
    V: 24mm
    W: 16mm
    X: 32mm

    Body Dimension

    2 Way 6 inch Pneumatic Actuated Flanged Type Ball Valve Body Dimensions

    Tips: How to Select a Pneumatic Actuated Ball Valve?

    1. Conveying material medium
    2. Temperature requirement for the medium
    3. Power source and body material
    4. Connection mode, port diameter and pressure requirement
    5. Other requirements of working conditions, such as anti-explosion, structure length, etc.
