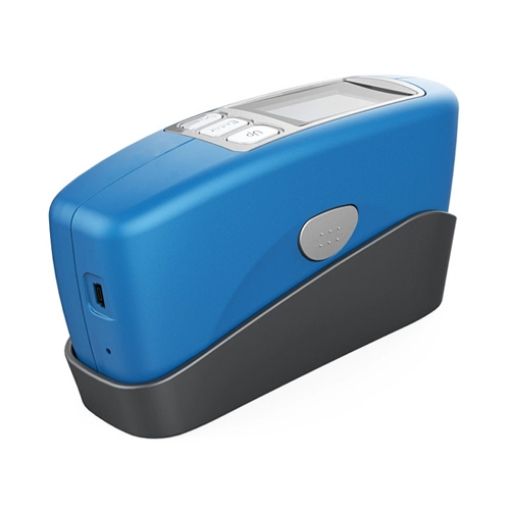

60 Degree Gloss Meter For Paint, 0~1000 GU

Tool shop offers a 60 degree gloss meter with fast readings in under 1 second and excellent repeatability of 0.2%GU. Portable design with USB interface and lithium battery ensures easy use. Works accurately in humidity below 85% non-condensing. Perfect for gloss measurement on car paint, marble, powder coating, and printing industry surfaces.

Specification

Features

• High-Precision Gloss Measurement: Experience professional precision with the JJG 696 Class 1 gloss meter. Equipped with premium Japanese and American hardware, it provides accurate 60° measurements from 0-1000 GU. Perfect for any surface, the gloss meter ensures reliable 0.1 GU resolution in a compact, durable design.
• Unmatched Stability: Extensive testing ensures 60 degree gloss meter delivers consistent performance with under 1s test time and 0.2%GU repeatability. 412 calibration tests, 43,200 stability tests, 110 hours of accelerated aging tests, and 17,000 vibration tests. It is built for high reliability in all conditions.
• Massive Data Storage: Easily manage large-scale projects with internal memory capable of storing 100 standard samples and up to 10,000 test samples, streamlining your glossiness measurement workflow.
• Long Battery Life: The digital gloss tester comes with a high-density 3000mAh lithium battery and enables up to 54,300 continuous tests, reducing frequent charging and ensuring reliable performance in high-volume testing.
• Wide Operational Range: Ideal for various environments, the gloss meter for paint operates smoothly in temperatures between 0~40°C and humidity levels under 85% without condensation.
• Certified Quality: Each unit comes with a metrology accreditation certificate, providing the documented proof of accuracy required for international trade and manufacturing standards.

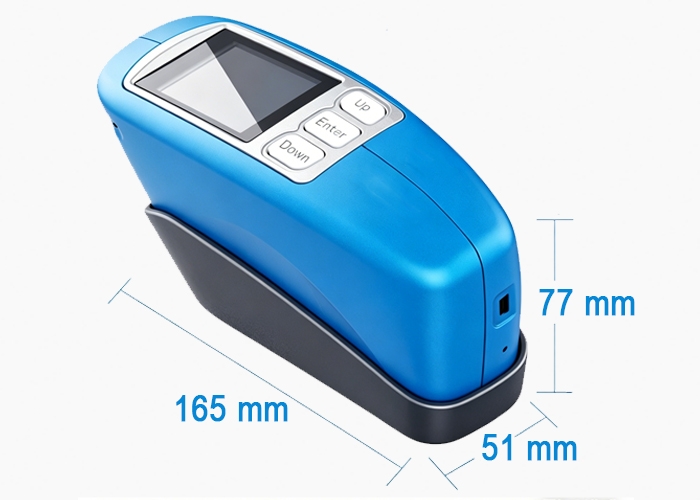

Dimension

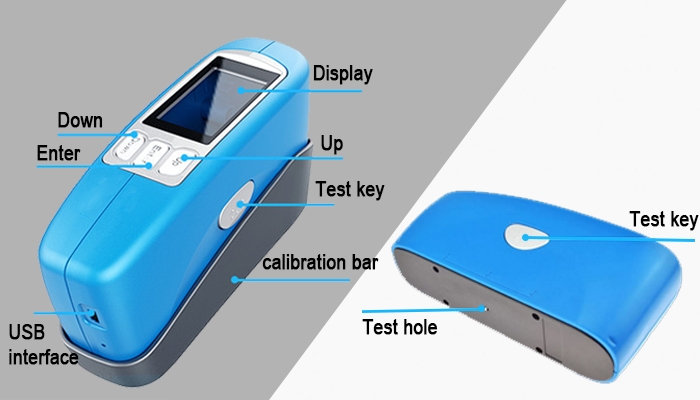

Detail

Applications

FAQs

Q1: What affects gloss measurement accuracy?
A: It can be affected by surface cleanliness, texture, measurement angle, and environmental conditions. Dust, oil, uneven coating, or vibration may reduce consistency in gloss meter readings. Proper positioning and stable operation help ensure reliable results.

Q2: Does the gloss meter for powder coating work in high-humidity environments?
A: Yes, the gloss meter can operate in normal industrial humidity conditions (<85% non-condensing). However, condensation or moisture on the surface may affect gloss measurement results, so dry surfaces are recommended for best accuracy.

Q3: How do I calibrate and measure with the gloss meter?
A: Operation is simple. Step 1: Calibrate the base. Step 2: Place the gloss meter on the sample surface and get gloss measurement data within 1 second.
