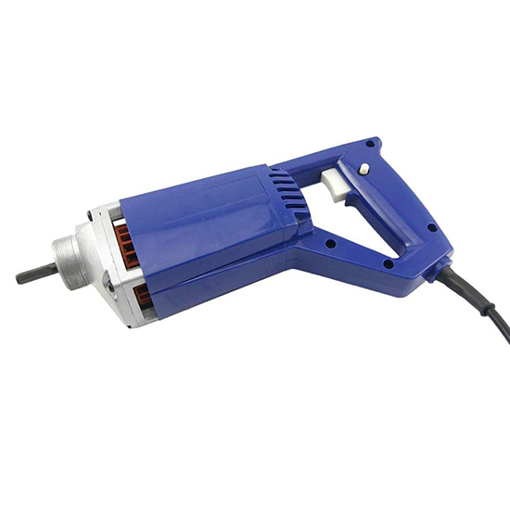

    Concrete Vibrator, 5600VPM, 800W

    Cheap price portable concrete vibrator features 5600VPM vibration frequency, 35mm vibration head length, 1-2m long shaft for easy use and long reach, it is applicable for construction, patching and other repair jobs as a useful tool.
    SKU: T-CV-5600
    *
    $128.19
    i h
    Free shipping
    Delivery date: 6-12 days

    Hand held electric concrete vibrator construction tool for sale, powered by 800W electric power, 5600 vibrations per minute, 1-2m long shaft, 220V 50Hz is available, it has high working efficiency and long service life and is widely used in construction, patching and other repair jobs.

    Description

    Mode T-ZID-35
    Power 800W
    Voltage 220V
    Frequency 50Hz
    Vibration Frequency 5600VPM
    Vibrator Head Length 35mm
    Vibrator Weight 2.3kg
    Shaft Length 1 / 1.5 / 2m
    Shaft Weight 2.35kg-4.3kg
    Certification CE
    Package Size  330*85*155mm
    Application construction, patching and other repair jobs

    Features

    1. High working efficiency: With an impressive vibration frequency of over 5600 vibrations per minute, the vibrator removes air bubbles and helps concrete settle faster.
    2. Unique design: The lightweight and compact design is easy to hold and ideal for consistent use.
    3. Long service life: The portable concrete vibrator features a handy lock-on button for extended use, it combines with steel woven shaft which is not easily broken and its full copper motor and less heat produced make its life more longer.
    4. Application: This concrete vibrator is ideal for construction, patching and other repair jobs.

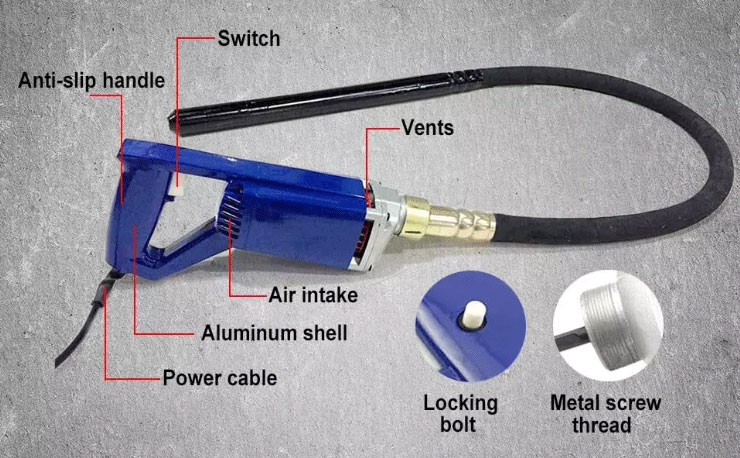

    Details

     Concrete vibrator 5600VPM 800 details

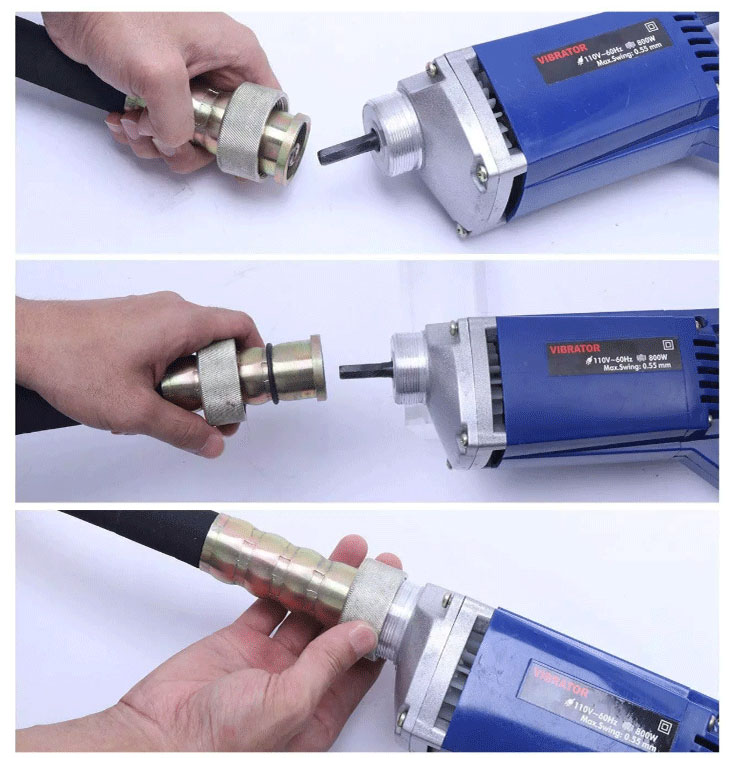

     procedure

     Concrete vibrator 5600VPM 800 procedure

    Tips: Trouble shooting of concrete vibrator

    Symptoms Possible cause Remedy
    Motor dose not rotate. The power socket is damaged or loose contacted. Repair or replace the socket.
    The plug is damaged or is not intact. Replace the plug.
    The cable is worn or broken. Bind up or replace the cable.
    The switch is not nimble or is damaged or loosened. Repaire or replace the switch.
    The brushes have been worn excessively. Replace the brushes.
    The inner connecting wire of the tool has loosened. Connect it tightly again.
    The stator or the armature is damaged. Replace the stator or the armature.
    Excess sparks occurs on the brush. There is conductive electricity matter in the hook groove of copper raft on the commutator. Cut off the electricity supply and remove foreign matter.
    Armature or stator winding is shorted circuit, or armature winding is opened circuit. It must be taken to the pro fissional for check and repair.
    Brush is contacted loosely. It should befit again.
    Speed is stopping apparently. Peculiar smell or abnormal noises appeare. Some parts in the tool have been damaged. Stop the operation immediately. And it must be taken to our professional service sections for check and repair.
    The vibrating head does not vibrate or its vibration is weak. There are dirt oil and water etc. inside the vibrating head. Clean and dry out the channel, rolling cone, head end and assemble them again.
    The oil-seal has been damaged. Replace the oil seal.
    The motor temperature rises. The air-drain has been stopped up. Clean the stopped things of the air drain.
