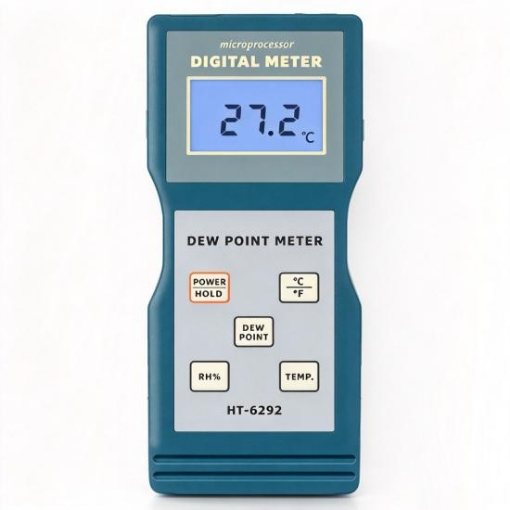

Digital Dew Point Meter for Temperature and Humidity Measurement

The portable dew point meter draws gas samples from pneumatic pipelines for moisture analysis and delivers rapid readings within 0.4 seconds. Fitted with a capacitive humidity sensor and a thermocouple, it achieves ±1°C dew point accuracy and ±0.5°C temperature accuracy. This sensing configuration supports stable evaluation of compressed air conditions.

Specification

Features

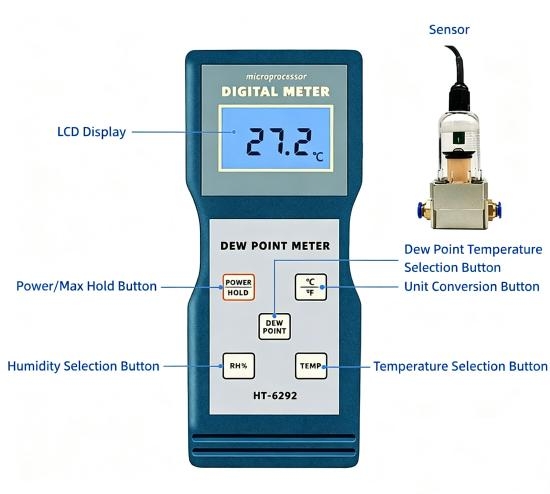

• Clear LCD Readout: Intuitive liquid crystal screen displays dew point, humidity, and temperature. It delivers stable readings within a dew point range of -40~40°C for on-site environmental checks.
• Auto Data Recording: Automatically captures maximum, minimum, and latest measurement values to simplify data review during inspections.
• Extended Battery Life: Powered by 4 AA batteries with low power consumption, supporting long hours of continuous field measurement without frequent battery replacement.
• Precision Timing Reference: Built with a quartz crystal timing base to deliver consistent time tracking and maintain stable measurement output during long testing cycles.
• Robust Construction: Solid structural housing improves durability and guards internal sensing components against minor bumps in field working environments.

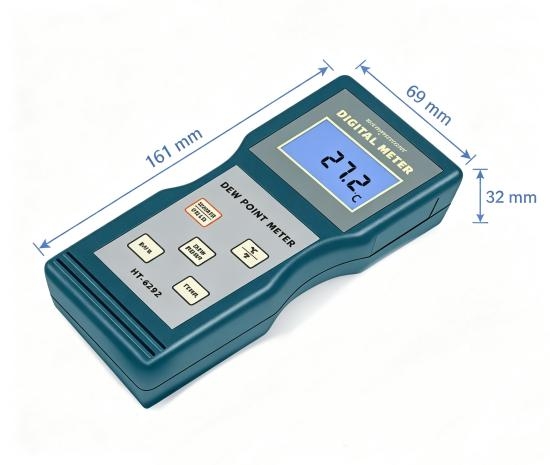

Dimensions

Applications

1. Office Environmental Monitoring: Track indoor dew point, temperature, and humidity to maintain comfortable and stable office air conditions.
2. Workshop Compressed Air Inspection: Test compressed air quality to prevent pipeline corrosion and protect industrial production equipment.
3. Laboratory Ambient Control: Capture accurate multi-parameter readings to keep stable environmental conditions for precision experiments.
4. Warehouse Storage Management: Monitor air moisture levels to avoid damp damage to stored goods and materials.

FAQs

Q: What parameters can this handheld dew point meter measure?

A: It simultaneously tests dew point, ambient temperature, and relative humidity for environmental monitoring.

Q: Does the dew point meter save measurement data automatically?

A: Yes. It automatically records maximum, minimum, and the last measured values for later checking.

Q: What environments is this dew point meter suitable for?

A: It fits spot inspections in workshops, warehouses, offices, laboratories, and agricultural sites.

Q: Is the dew point meter easy to carry for field work?

A: The compact handheld structure is lightweight and simple to operate during on-site testing.
