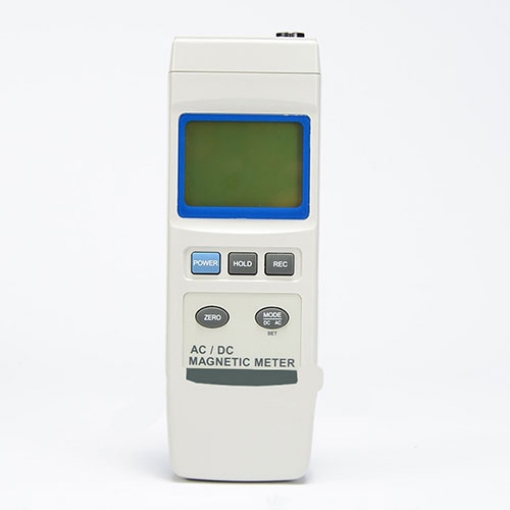

Digital Magnetic Field Gauss Meter, AC/DC, 200/200μT

Digital gauss meter measures AC/DC magnetic fields with an external probe. A magnetic Gauss meter tests magnet surface field and flux. Features zero adjustment and data hold for convenient operation. Portable, 9V battery powered. Gauss meter with probe for lab, factory, or field. Lightweight, easy to use, and ideal for routine inspections.

SKU: T-MG-3002

$602.53

This product has a minimum quantity of 5

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

A magnetic gauss meter provides accurate readings for laboratory and field measurements. An induction probe measures flux density of permanent magnets, electromagnets, and coils. Switchable Gauss/mT units. Gauss meter magnet function offers N/S polarity detection for DC fields. AC frequency 30-1000Hz. Data export to PC via optional cable. Reliable gauss meter with probe for quality control and R&D.

Specifications

Model	T-MG-3002
Measurement Range	0~2000mT / 0~20000Gs (typical)
Resolution	0.1mT / 1Gs
Accuracy	±(2% of reading + 3 digits)
Field Types	AC & DC
Frequency Response	30~1000Hz (AC mode)
Units	Gauss / mT (switchable)
Display	LCD with backlight
Functions	Data hold, Record (min/max), Zero adjustment
Probe Type	External induction coil
PC Connection	Optional cable (RS232/USB)
Power Supply	1 × 9V battery
Battery Life	approx. 30 hours
Operating Environment	0°C ~ 50°C, <80% RH
Dimensions	180 × 85 × 35 mm
Weight	300g (with battery)

Features

Hall effect sensing: Hall effect gauss meter uses an external probe for precise AC/DC field measurement.
AC & DC versatility: Works as ac gauss meter and dc gauss meter for static and dynamic magnetic sources.
Magnet testing: A reliable gauss meter magnet tool for measuring the surface field of NDFeB, ferrite, and alnico.
Digital dual-unit display: Digital gauss meter features a backlit LCD with Gauss/mT toggle.
Portable with external probe: A portable Gauss meter with a probe offers convenient field operation.

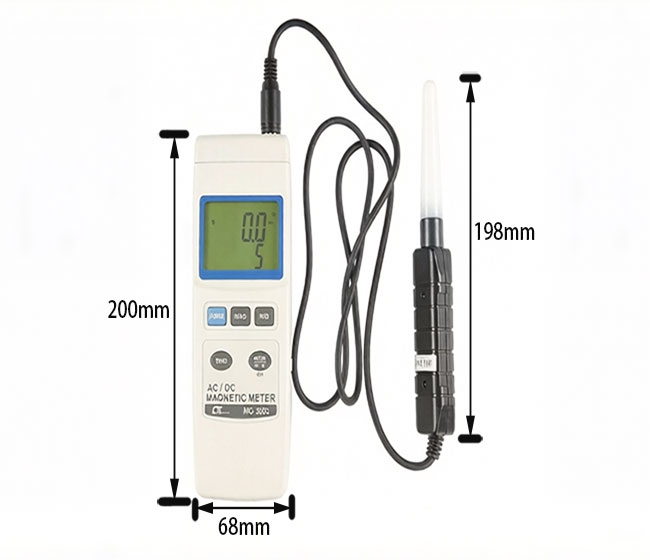

Dimension (Unit: mm)

Digital Magnetic Field Gauss Meter Dimensions

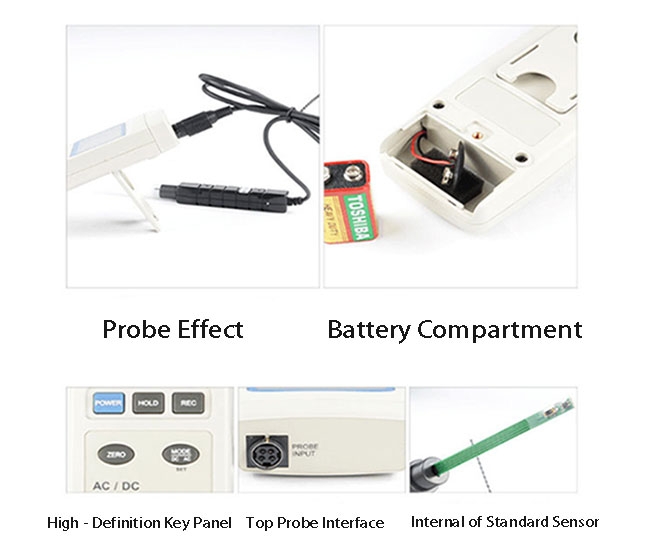

Details

Digital Magnetic Field Gauss Meter Details

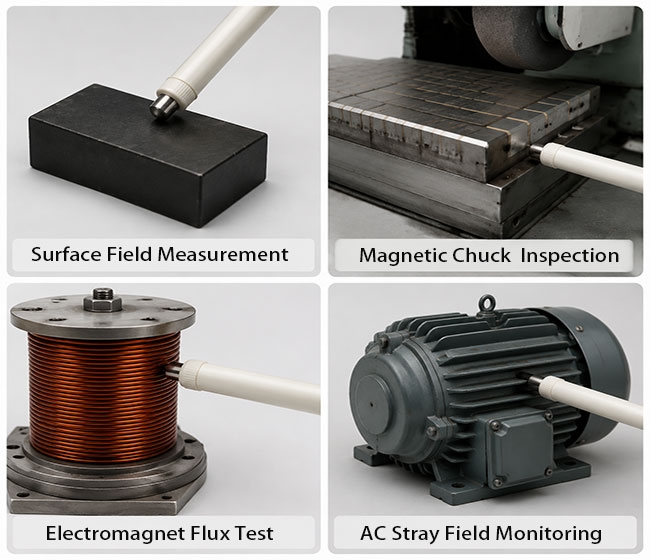

Applications

Gauss meter magnet tasks include measuring surface fields of permanent magnets, inspecting magnetic chucks and separators, testing electromagnet flux, evaluating residual magnetism on steel parts, and monitoring AC stray fields from transformers, motors, and induction heaters, making the Hall effect gauss meter ideal for QC labs, production floors, and field maintenance.

Digital Magnetic Field Gauss Meter Applications

FAQs

How to zero a magnetic gauss meter before use?
Move the probe away from magnetic sources, press ZERO. Dc gauss meter mode then reads zero.
Can this gauss meter with probe measure AC fields?
Yes. Press the AC/DC button for AC mode. An ac gauss meter measures up to 2000mT at 30?1000Hz.
Difference between Gauss and mT on a digital gauss meter?
1mT = 10 Gauss. Press the UNIT button. Hall effect gauss meter displays both units.
How to export data from a portable gauss meter?
Connect to the PC using the optional cable. A gauss meter for testing magnetic data can be logged and analyzed.
Can I use this gauss meter magnet for neodymium magnets?
Yes. Place the probe on the magnet surface. A magnetic field gauss meter shows strength in mT or G.
