Flexible Coil Clamp Current Meter, 0.00A-10000A AC

Flexible coil large current clamp meter is a loop coil uniformly wound on non-ferromagnetic materials, with no hysteresis effect, almost zero phase error, no magnetic saturation, high linearity and strong anti-interference ability. The output signal is the differential of the current with respect to time. By integrating the output voltage signal, the input current can be truly restored. The measured current ranges from 0A up to ten thousands of amperes. Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable.

SKU: T-CM-ETCR6920

$205.00

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

Flexible coil large current clamp meter is designed and manufactured for field testing of AC large current. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. Especially suitable for the flat cable dense place, current test of transformer grounding core , thick wire and cable, relay protection, silicon controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion.

Details

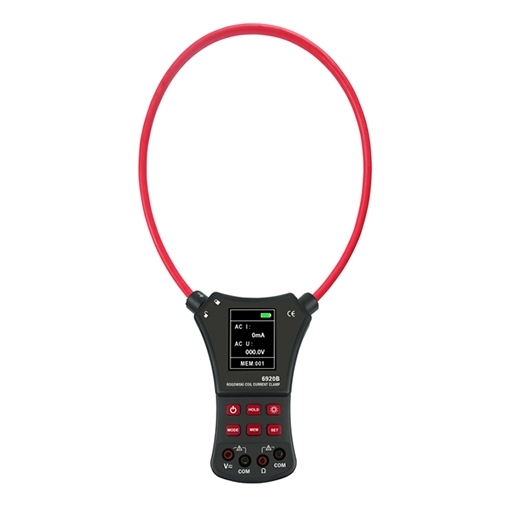

10000a flexible coil clamp meter detail

The flexible coil does not have any exposed metal conductors, non-contact measurement, safe and reliable. It is small in size, light in weight, soft and flexible, and is suitable for use in narrow environments and places with dense cables, as well as for measuring the current of conductors with large sizes or irregular shapes. The inner diameter of the flexible coil is φ200mm/φ300mm, and the size can be customized according to user requirements. Display multiple measurement parameters on the same screen for easy operation. Can be used as an ordinary multimeter. Equipped with a USB port, the stored data can be uploaded to the computer through software for easy viewing, storage and printing of data.

Specifications

Model	T-ETCR6920
Current Range	0.00mA-10000.00A
Resolution	1mA
Accuracy	±2%rdg±5dgt
CT Size	φ200mm
Meter Dimension	200mm×370mm×35mm
AC Voltage Measurement	Range: AC 0.1V~750V; Accuracy: ±1.5%rdg±3dgt; Resolution: 0.1V
DC Voltage Measurement	Range: DC 0.1V~1000V; Accuracy: ±1.5%rdg±5dgt; Resolution: 0.1V
Resistance Measurement	Range: 0Ω~2kΩ; Accuracy: ±2%rdg±5dgt; Resolution: 1Ω
Weight	266g
Power Supply	6V DC (LR03*4 PCS Alkaline dry cell)
LCD Size	35mm×21.5mm; Display domain: 32mm×15mm, with backlight, convenient to use in dark site
Sampling Rate	2 times/second
Electric Field Interference	No hysteresis effect, strong anti-interference ability
Continuity Test	Yes, in the resistance measurement interface press the "SET" key, display the symbol to open this function and the buzzer will make out the sound "bee---".
Data Storage	600 groups, display the "FULL" symbol to indicate storage full
Data Hold	The "DH" symbol display
Overflow Display	Exceed measure range overflow function: "OL" symbol display
Communication Terminal	With a USB terminal, upload stored data to a computer, convention analysis data, communication cable length 1.8m
Auto Shut Down	About 10 minutes after start-up, the meter will automatically shut down without any operation, to reduce battery consumption
Battery Voltage	While the battery voltage is lower than 4.8V, the meter will display the symbol and remind to replace the battery
Working Current	Backlight on: 80mA; Backlight off: 40mA
Working Temperature	-10℃ ~40℃ ;below 80%rh
Backlight	Yes, Press "*" key to control
Accessories	Meter: 1PCS; Pen probe test line: 2PCS(Red & Black); USB communication cable: 1PCS; Tool bag: 1PCS

Applications

The tool's clamp current meter is available with a measuring range of 0.00A-10000A AC. The flexible coil current clamp meter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.

Applications of clamp current meter 10000a
