    Hydraulic Crimping Pliers, 16~300mm², 11 Dies

    Good price hydraulic crimping pliers for sale. Crimping dies can select 16~300mm² 11 dies or 16~400mm² 9 dies. Crimping force 11 ton or 9 ton, hexagon crimping type, stroke 17~38mm. Best hydraulic crimper for cable, terminal, hose.
    SKU: T-HCPT-HT
    *
    *
    *
    $479.69
    i h
    Free shipping
    Delivery date: 6-12 days

    The hydraulic crimping pliers is hand tool used for crimping terminal, hose and cable wire. It is an integrated hydraulic crimper.

    Specification

    Model T-HT-300 T-HT-12030 T-HT-12032 T-HT-12038
    Crimping Range 16~300mm² 16~300mm² 16~400mm² 16~400mm²
    CrimpingForce 6 Ton 12 Ton 12 Ton 12 Ton
    Stroke 17mm 32mm 32mm 38mm
    Overall Length 460mm 545mm 552mm 560mm
    Weight 3.7 kg 6.5 kg 6.5 kg 6.8 kg
    Die Quantity 11 11 9 9

    Crimping Dies Configuration

    T-HT-300 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
    T-HT-12030 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
    T-HT-12032 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
    T-HT-12038 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

    Dies of Hydraulic Crimping Pliers, 16~400mm², 9~11 Dies

    Structure Diagram

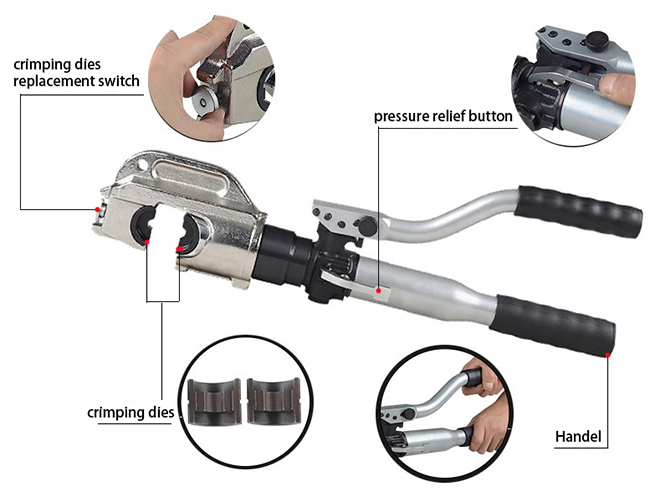

    Structure of Hydraulic Crimping Pliers, 16~400mm², 9~11 Dies

    Features

    • The hydraulic crimping pliers use hexagonal dies, tightly crimping, good electrical conductivity and not easy to fall off.
    • 2-speed high and low pressure design, quick oil intake and convenient oil return, simple operation.
    • The crimping head can be rotated 180°.
    • It is suitable for crimping cable, copper/aluminum terminal, and hose.

    Copper Terminals Crimping Effect Diagram

    Copper Terminals Crimping Effect

    Tips: Hydraulic oil replacement method for crimping pliers.

    To ensure service life of the hydraulic crimping tool, hydraulic oil in the tool must be replaced once a year. Hydraulic oil must be filtered through an oil filter before being injected. The filter must have a filter screen of 120 mesh or more, or a filter accuracy of more than 30μm. At the same time, prevent any impurities from entering the tool oil reservoir and ensure cleanliness of the hydraulic oil.

    Specific steps:

    1. Unscrew the fixed handle.
    2. Reset the piston to the end.
    3. Clamp the tool on bench vise.
    4. Unscrew the oil plug.
    5. Squeeze out the waste oil.
    6. Inject new hydraulic oil.
    7. Drain the air and insert the oil plug.
    8. Turn back the handle.
