    Hydraulic Crimping Pliers, 16~400mm², 9 Dies

    Affordable price hydraulic crimping pliers for sale. Crimping dies 16~400mm² 9 dies or 16~300mm² 11 dies for selection. Output force 12 ton/ 13 ton. Hexagon crimping type. Stroke 32~38mm. Best hydraulic crimping tool for cable, terminal, hose.
    i h
    Free shipping
    Delivery date: 6-12 days

    Wholesale hydraulic crimping tools at competitive price. The hydraulic tool comes with 16~400mm² and 16~300mm² crimping range, 38 stroke, 9 crimping dies and its max. crimping force is up to 12 ton. Perfect for hose, cable and copper / aluminum terminal crimping.


    Model T-EP-430 T-EP-410 T-EP-510
    Crimping Range 16~400mm² 16~300mm² 16~400mm²
    Crimping Force 12 Ton 12 Ton 13 Ton
    Stroke 32mm 32mm 38mm
    Weight 6.5 kg 6.4 kg 6.8 kg
    Die Quantity 9 9 9
    Crimping Dies Configuration 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

    Dies of Hydraulic Crimping Pliers, 16~400mm², 9 Dies


    • The hydraulic crimping pliers can be used in crimping power cable, copper/aluminum terminal, and hose.
    • 2-speed high and low pressure design. High pressure, low speed. Low pressure, high speed.
    • Handle rotates and squeezes, and the oil returns quickly.
    • When reaching the maximum pressure, safety valve will automatically open to avoid damage to the crimping machine.

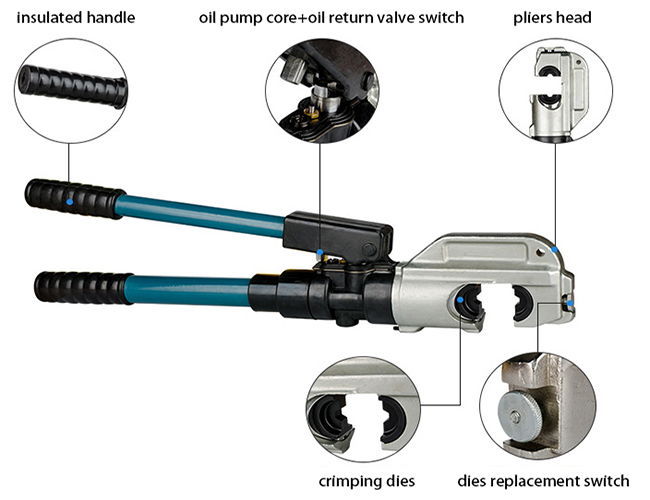

    Structure Diagram

    Hydraulic crimping tool 9 dies structure diagram

    Pressure Relief Method

    Pressure relief method of hydraulic crimping pliers

    1. Rotate 45° clockwise to adjust the direction of oil return valve switch.
    2. Lightly hit the oil return thimble to complete the pressure relief.

    Dimension Diagram (Unit: mm)

    Dimension of Hydraulic Crimping Pliers, 16~400mm², 9 Dies

    Model L1 L2 L3 L4 L5 L6
    T-EP-430 620 102 30 32 450 165
    T-EP-410 613 120 35 30 450 160
    T-EP-510 635 105 30 38 450 165

    Tips: Hydraulic crimping pliers maintenance.

    • If hydraulic crimping pliers will not be used for a long time, please loosen the oil return bolt and reset the piston to the end. Wipe the crimping pliers surface clean, and apply anti-rust grease to crimping dies and the metal surface of crimping pliers. Put them in a special tool box and store in a dry environment.
    • After hydraulic crimping pliers are used for a period of time, the sealing elements may be worn to varying degrees. Replace the sealing elements in time.
    • If there is a large amount of hydraulic oil leakage, it should be repaired by professional maintenance personnel or replace the sealing element.
