    M10~M24 Hydraulic Nut Splitter, 12 Ton, 18V, 3Ah

    Hydraulic nut splitter for sale, electric cordless type. Powered by 18V 3Ah lithium battery, output force 12 ton, nut splitting capacity M10~M24 (thickness 1/3~5/6 inch). Best portable tool with affordable price, for nut splitting and cutting.
    SKU: T-HNS-1024
    $1,099.92
    i h
    Free shipping
    Delivery date: 6-12 days

    The hydraulic nut splitter is operated by 18V rechargeable battery, used in nut splitting and cutting, portable and powerful.

    Specification

    Model T-EC-2432A
    Output Force 12 Ton
    Splitting Nut Range M10-M24
    Stroke 32mm
    Battery Voltage 18V
    Battery Capacity 3.0Ah
    Charge Voltage 220V
    Charge Time About 2 hours
    Configuration Lithium Battery*2, Charger*1, Cutter Head*1
    Weight 5.8 kg

    Hydraulic Nut Splitter Structure Diagram

    Structure of M10~M24 Hydraulic Nut Splitter, 12 Ton, 18V, 3Ah

    Features

    • The hydraulic nut splitter has an open ended and 360° rotatable cutter head.
    • 2-stage hydraulic system, fast speed and power stroke.
    • The hydraulic nut splitter has an electronic brake function, which can automatically retract and reset during multiple operations, convenient for positioning control and splitting operation monitoring.
    • After the operation is completed, automatically reset, or it can be reset manually.

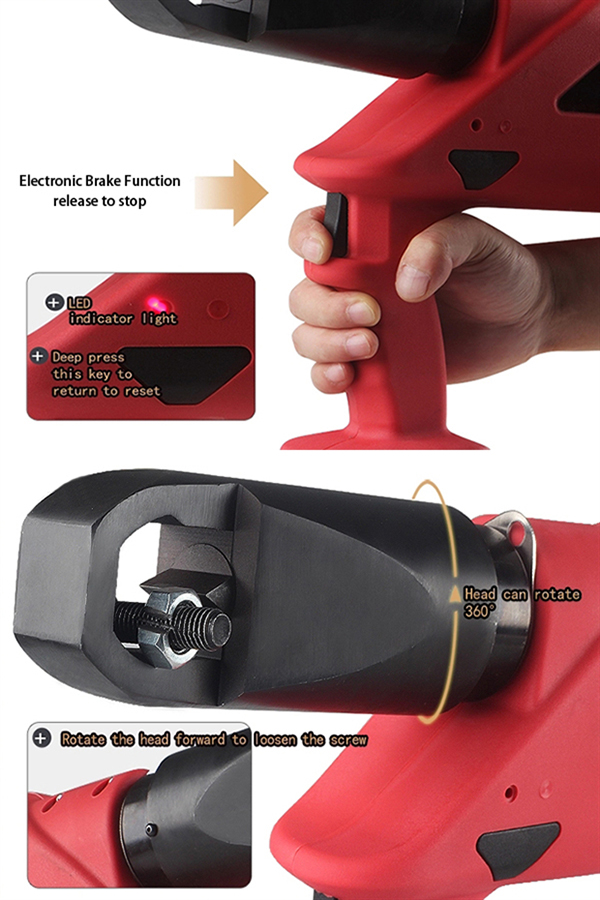

    Hydraulic Nut Splitter Details

    Details of M10~M24 Hydraulic Nut Splitter, 12 Ton, 18V, 3Ah

    Hydraulic Nut Splitter Dimensions (Unit: mm)

    Dimensions of  M10~M24 Hydraulic Nut Splitter, 12 Ton, 18V, 3Ah

    Operation Steps

    Operation Steps of Hydraulic Nut Splitter

    1. First, split the first side. Align the cutter head at the middle of nut to split it. (As shown in Figure 1)
    2. Split the opposite side. Adjust direction, align the cutter head at the middle of nut, to cut the other side. Both sides need to be symmetrical. (As shown in picture 2)
