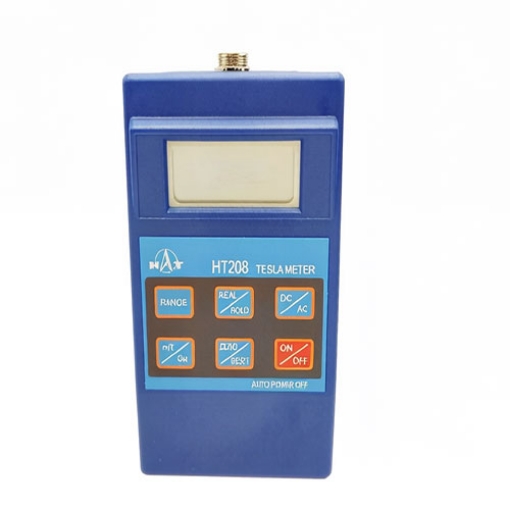

Magnetic Hall Effect Gauss Meter, 200/2000mT, AC/DC

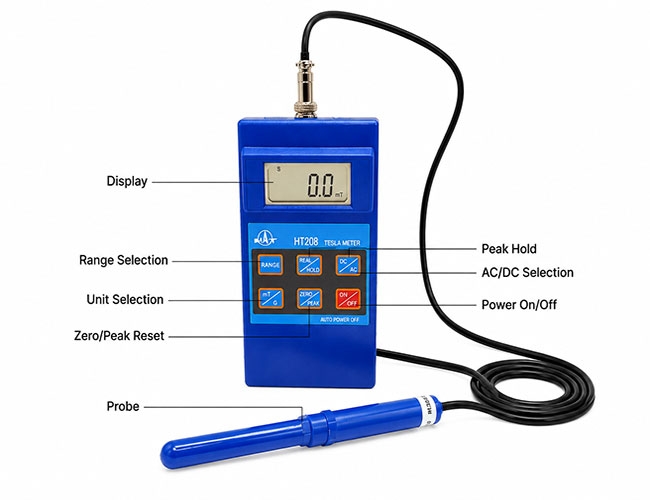

The hall effect gauss meter with probe is built around a sensitive Hall sensor that translates magnetic flux changes into a stable digital output. The measurement system supports both dc gauss meter and ac gauss meter operation for different field types. Signal processing includes peak hold for transient capture, N/S polarity identification for directional indication, and one-key zero calibration for baseline correction. Internal circuit design ensures low drift and consistent response in a magnetic field gauss meter configuration.

Specifications

Features

1. Hall effect sensor: The built‑in probe makes this hall effect gauss meter fast and accurate for both AC and DC fields.
2. Dual range & high resolution: Switch between 200mT and 2000mT. Magnetic gauss meter captures subtle field changes with 0.01mT resolution.
3. Peak hold: Freezes the maximum reading, ideal for measuring impulse or moving magnetic sources.
4. N/S polarity display: During DC measurement, the gauss meter magnet function instantly shows north or south pole.
5. Auto zero & unit toggle: One‑button zeroing removes the background field. This magnetic field gauss meter also lets you switch between mT and Gs.
6. Portable & battery powered: Works as both an ac gauss meter and dc gauss meter for field use. Runs on 4 AA batteries, compact enough for a tool bag. A practical gauss meter for testing magnets, too.

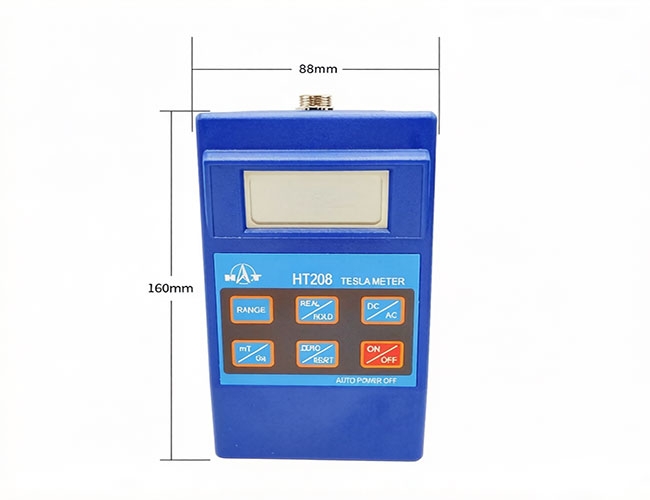

Dimension (Unit: mm)

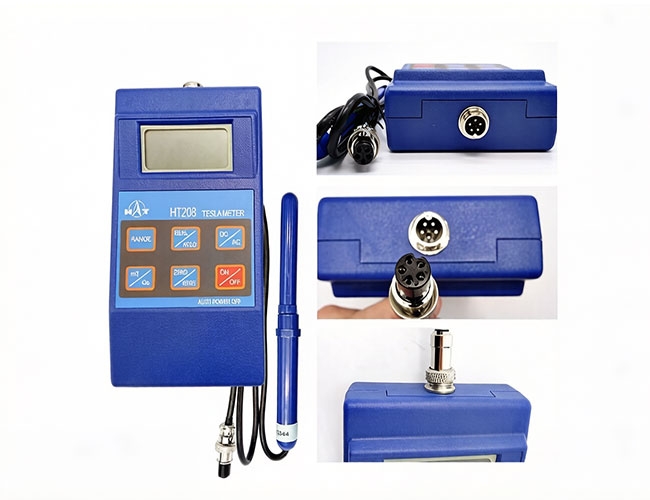

Details

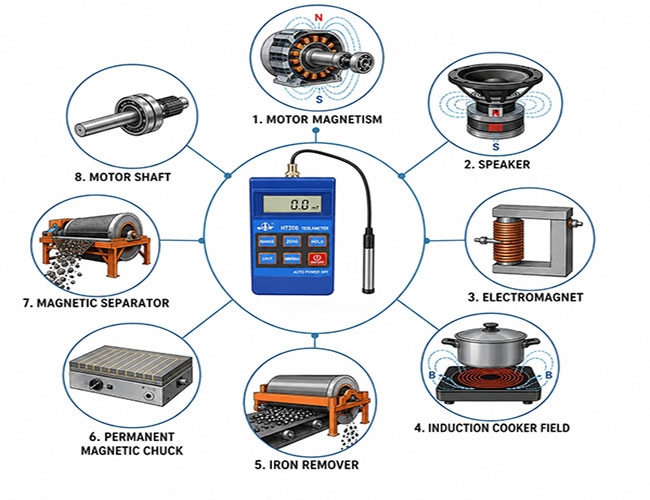

Application

FAQs

1. Q: How to zero a magnetic gauss meter before use?
   A: Move the probe away from any magnetic source (at least 1 meter), then press the “ZERO” button. The display will read zero.

2. Q: Can gauss meter with a probe measure AC magnetic fields?
   A: Yes, it works as an ac gauss meter and also measures DC fields. The frequency range for AC is 10Hz to 200Hz. The meter auto‑detects, or you can select AC mode.

3. Q: What is the difference between mT and Gs on this hall effect gauss meter?
   A: 1mT = 10Gs. Press the unit button to toggle between mT and Gs on the LCD. This applies to both ac gauss meter and dc gauss meter measurements.

4. Q: What is the battery life of a portable gauss meter?
   A: Approximately 30-40 hours continuous use with fresh AA batteries. The low battery indicator warns when replacement is needed. It’s a reliable magnetic field gauss meter for field work.
