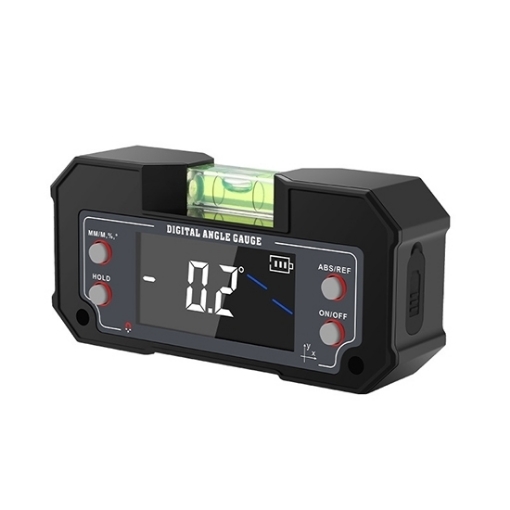

Mini Digital Inclinometer with Level Bubble, Single/Dual Axis

The high precision 2 axis digital inclinometer with level bubble represents the next generation of digital clinometer technology, designed for professionals who demand exceptional accuracy and reliability. This calibrated inclinometer features advanced dual-axis sensors capable of simultaneous measurement with high precision inclinometer accuracy. The built-in strong magnetic base ensures secure attachment to ferrous surfaces, making it superior to traditional mechanical inclinometers. With absolute zero referencing and clear digital display, this instrument is perfect for those seeking the best digital inclinometer for machining, construction, and geotechnical monitoring applications.

Feature

• Dual-axis inclinometer with simultaneous measurement capability
• High-precision sensors with ±0.2° accuracy (single axis)
• Strong magnetic base for secure attachment
• Type-C charging interface for convenient power supply
• Absolute zero calibration based on horizontal plane
• Clear digital LCD display with 0.1° resolution
• Compact design functioning as a miniature inclinometer
• Automatic power saving mode
• Durable construction suitable for workshop environments
• Portable size for easy handling and storage

Specification

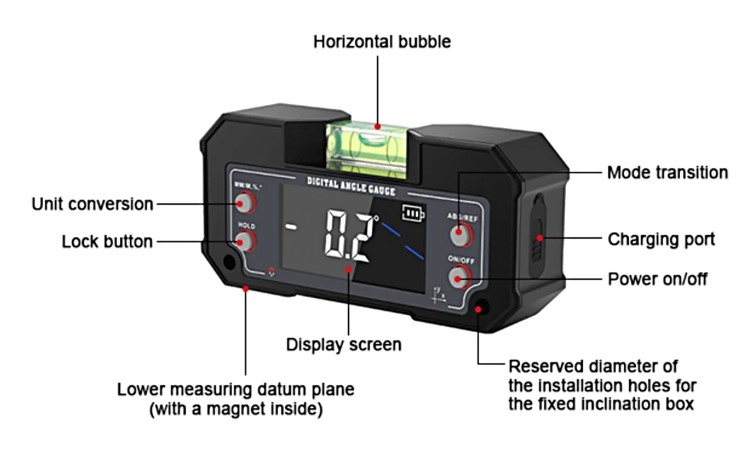

Detail

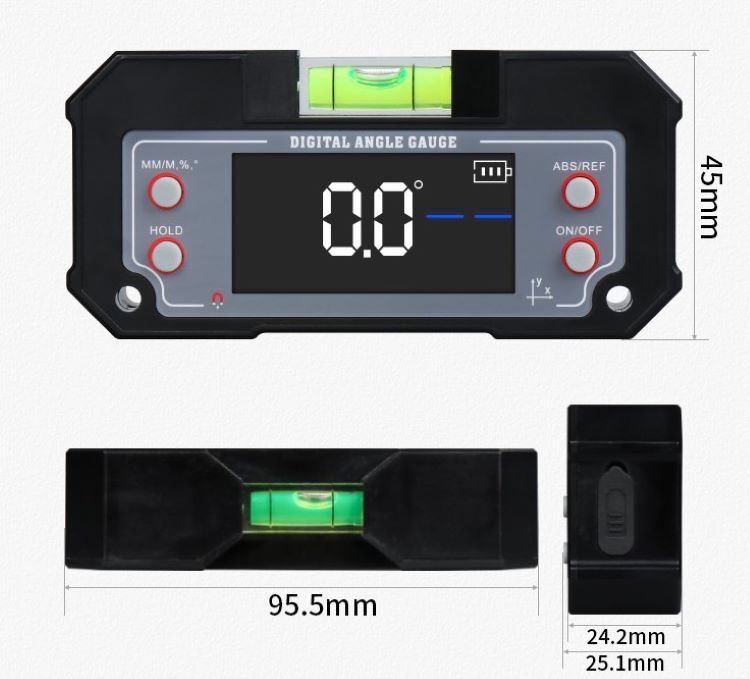

Dimension (Unit: mm)

Application

3 Tips for Use Mini Digital Inclinometer with Level Bubble

1. Maximizing Magnetic Base Effectiveness
   Ensure the measurement surface is clean and free of debris to guarantee strong magnetic adhesion. When working on non-ferrous materials, use an auxiliary steel plate as an intermediate base. Avoid sliding the instrument on rough surfaces to prevent damage to the magnetic base.

2. Ensuring Measurement Accuracy
   Allow the small inclinometerto with level bubble stabilize for 2-3 seconds after placement before taking readings. Regularly perform zero calibration on a known level surface. Avoid taking measurements in environments with strong vibrations or magnetic interference to maintain the high accuracy tilt sensor performance.

3. Proper Battery Charging and Storage
   Use only the recommended 5V power adapter for charging. Avoid complete discharge of the lithium battery to extend its lifespan. If not used for extended periods, store the device with about 50% charge in a dry environment at room temperature, ensuring your digital slope indicator inclinometer remains ready for future use.
