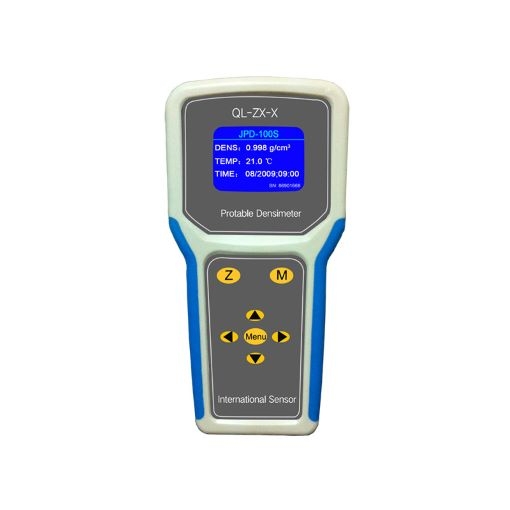

Portable Online Density Meter for Liquid, 0~3.0g/cm³

Online density meter for liquid is portable and digital, which has a high-precision imported density sensor inside, with stable performance and easy use, measuring depths of 0.12m~25m. The measurement range is 0~3.0g/cm³, an accuracy of ±0.001g/cm³.

SKU: T-PDM-QLZX

Maximum operation length *

$2,683.54

Qty:

i h

Free shipping

Overview
Reviews

Overview

Portable online density meter for liquid has high precision imported density sensor, stable performance and is easy to use. It is widely used and can remembers the most recent 200 sets of measured data.

Specification

Model	QLZX-X (Cable type)	QLZX-G (Pole type)
Measure depth	300mm~25.0m	190mm~670mm
Measurement span	Density0~3.0g/cm³, temperature-25~110℃
Accuracy	Density±0.001g/cm³, temperature±0.5℃
Probe outer diameter	P25mm
Liquid measurement depth	Minimum measurement depth 190 mm, maximum measurement depth 25 meters
Instrument box	1m
Ambient temperature	(0~85)℃
Ambient humidity	(5~90)%RH
Power supply	24VDC (V\HZ)
Working voltage	Powered by rechargeable batteries (4 No. 5 batteries)
Display	Color screen digital display, showing density value, temperature, and time/date
Memory storage	200 sets of measurement data
Measurement method	Handheld vertical measurement
Measuring Principle	Differential pressure method

Application

This online density meter for liquid is a portable device used to measure density indicators of various liquids or liquid mixtures. It has been widely used in various industries such as water treatment, petrochemicals, food processing, pharmaceuticals, dairy products, archaeology, mining, and shipping.

Application liquid density meter

Working principle

The portable online density meter for liquid mainly consists of built-in density sensors, temperature sensors, signal lines, intelligent controllers, etc. It measures the density and temperature signals of the liquid through a built-in sensor probe. The signals are transmitted to the intelligent controller through a signal line, and the raw signals are processed into multiple parameters such as density and temperature values that can be read through signal conditioning circuits, multi-channel AD conversion circuits, and CPU intelligent processing units. It also remembers the most recent 200 sets of measured data.
