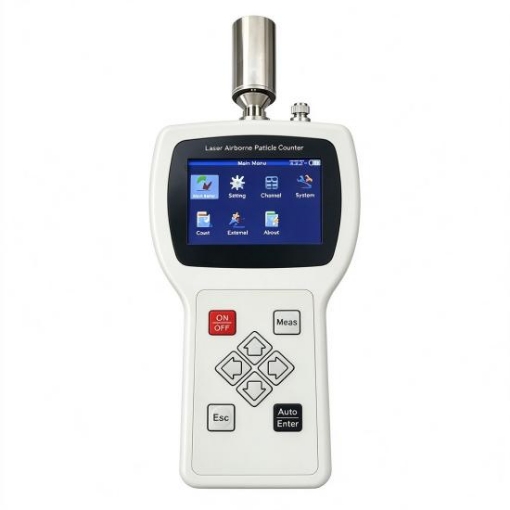

Portable Laser Particle Counter, 2.83L/min

The portable laser particle counter uses the laser scattering method to capture floating particles in the air. It features a 3.5-inch color touch screen to clearly display test data. The built-in air pump keeps a stable 2.83L/min sampling flow. Weighs only 0.9kg for easy hand carry. Built-in lithium battery supports over 8 hours of continuous measurement. Optional external probes can detect temperature, humidity, wind speed, and pressure difference.

Specification

Features

• 2.83L/min sampling flow, six particle size channels for multi-size particle counting.
• Large storage space saves a maximum of 260,000 test records for later review.
• 3.5-inch color touch display with a high-resolution screen shows clear test results and supports real time particle counter reading.
• Built-in rechargeable lithium battery supports more than 8 hours of continuous work.
• Mini USB communication port exports saved data to a computer as Excel files.
• Optional external probes to measure temperature, humidity, wind speed, and pressure difference.
• Adjustable test period from 1min to 15min, fits different on-site inspection needs for clean room particle measurement.

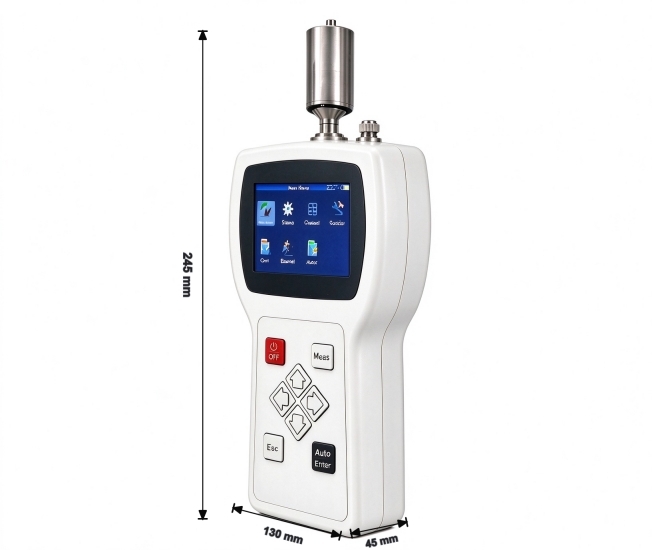

Dimensions

Applications

1. Metallurgy: Check air particle levels inside metallurgy workshops to reduce particle pollution during production, and support reliable air particle counter testing.
2. Construction: Monitor suspended particles on construction sites and test indoor air cleanliness for new buildings with a handy portable particle counter.
3. New Energy: Count fine particles in new energy production workshops to protect precision production equipment.
4. Light Industry: Measure airborne particles in light-industry workshops and maintain a clean production environment.
5. Aerospace: Carry out air cleanliness inspections to meet strict standards in aerospace component workshops for cleanroom particle monitoring.
6. Environmental Protection: Track airborne particles for environmental monitoring and air quality assessment.
7. Research Institutes: Run regular particle tests for research experiments and collect reliable air data for professional particle measuring tasks.
8. Laboratories: Detect airborne particles in lab rooms to maintain a qualified, clean testing environment.

FAQs

Q: What is the charging time of this particle counter?
A: Full charging takes about 3 hours. This handheld particle counter can work continuously for over 8 hours after fully charged.

Q: Can I clean the sampling inlet by myself for regular maintenance?
A: Yes. Simple cleaning of the sampling head helps keep stable performance of this air particle detector. Do not take apart the internal laser sensor.

Q: Does the particle counter need regular calibration?
A: Periodic calibration is recommended to keep particle count testing results accurate, which meets clean room inspection requirements.

Q: Can users export test data to a computer?
A: Yes, connect through the Mini USB port. Matching software exports data into Excel format for easy particle count analysis.
