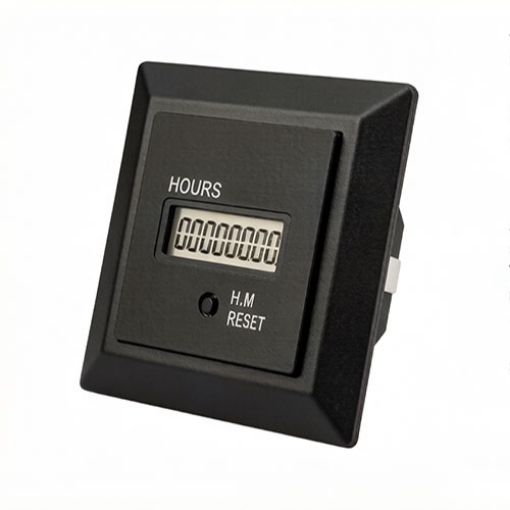

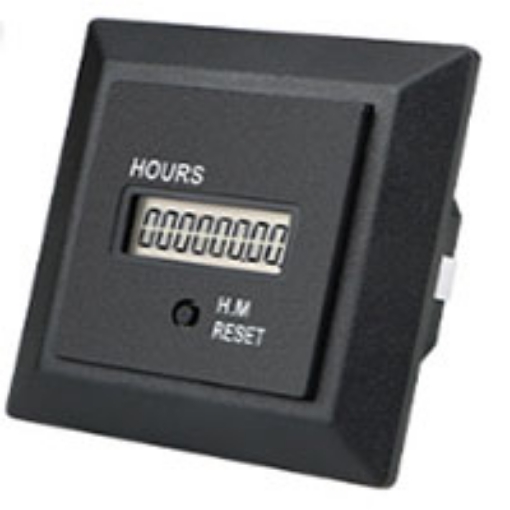

Resettable Digital Hour Meter, AC 100-240V

AC 100-240V powers this resettable digital hour meter. Featuring H.M display (hours/minutes up to 999,999H59M, ±0.01 accuracy) and memory save, this reset-equipped hour meter retains data after power loss. The reset button clears totals. Ideal for generators, compressors, and industrial equipment. A reliable digital hour meter with reset for OEM and rental fleet runtime tracking.

SKU: T-EHM-LCD

$42.64

This product has a minimum quantity of 5

Qty:

i h

Free shipping

Overview
Reviews

Overview

The resettable digital hour meter runs on AC 100-240V. This resettable digital hour meter features (hours/minutes up to 999,999H 59M, ±0.01), memory save, and a reset button. Use it for generators, compressors, and industrial machinery. Thanks to its reset button, this resettable digital hour meter is ideal for OEM and rental fleets. Reliable runtime tracking in a compact panel-mount design.

Specification

Parameter	Value
Model	HM-1R
Time Range	0 – 999,999 hours 59 minutes
Timing Method	Start timing when power is turned on
Timing Accuracy	±0.01
Reset Function	With reset button (resettable)
Ambient Temperature	-10°C ~ +50°C
Operating Voltage	100 – 240V AC (wide voltage)
Weight	0.068 kg
Application	Home generators, industrial generators, air compressors, etc.

Features

Wide voltage input: The HM-1R resettable digital hour meter accepts AC 100-240V, making it compatible with home generators, industrial generators, and air compressors.
Reset & memory save: A front panel reset button allows manual zeroing, while the digital hour meter with reset automatically retains accumulated time after power loss (no battery needed).
H.M dual-unit display: Shows hours and minutes up to 999,999H 59M with ±0.01 accuracy, giving operators a clear view of total runtime on this resettable hour meter.
Compact panel mount: Easy installation in standard square cutouts; the reset-equipped digital hour meter operates reliably from -10°C to +50°C.
OEM & maintenance ready: Ideal for tracking runtime on rental fleets, compressors, and industrial machinery,choosing the resettable digital hour meter for long-term reliability.

Dimension(Unit: mm)

Digital Hour Meter Dimension For Machine

Applications

The HM-1R resettable digital hour meter is designed for home generators, industrial generators, and air compressors. This reset-equipped hour meter also fits pumps, agricultural machinery, and OEM equipment requiring wide AC 100-240V and memory save.

Resettable Hour Meter Generator Compressor Application Scenes

Tips:What to know before using HM-1R resettable digital hour meter?

Wiring voltage: Connect the resettable digital hour meter to AC 100-240V only. Wrong voltage may damage the unit.
Reset operation: Press the front reset button to zero display, and memory stays after power off.
Mounting position: Install the reset-equipped hour meter in a dry panel. Avoid moisture and direct sunlight to prolong LCD life.
Power off memory: The resettable hour meter saves accumulated time even after power loss. No battery backup is needed.
Cleaning: Use a soft dry cloth. Do not use solvents or spray water on this resettable digital hour meter.
