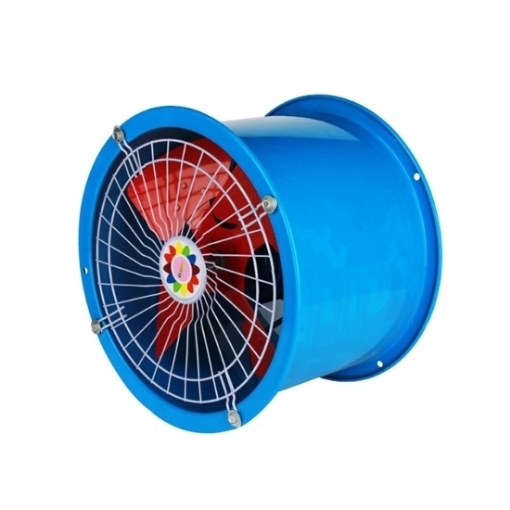

Tube Axial Fan, 220V/380V/110V

Equipped with high-volume and powerful motors rated at 110V, 220V, or 380V, these Axial flow fans meet your needs, whether you need to circulate air in a large industrial space or keep a small room cool and fresh.

Specification

Features

• Tube axial fan ensures powerful and efficient performance, thanks to its full copper motor, which minimizes heat, reduces energy use, and extends lifespan.

• Designed for durability, the tube axial fan features high-strength blades that resist deformation and undergo precise dynamic balancing to ensure stable airflow.

• Quiet operation is a key advantage of the tube axial fan, achieved through aerodynamic design and minimal dust disturbance even at high speeds.

• To maintain stability under high-speed conditions, the tube axial fan is supported by a securely mounted duct bracket.

• The housing of the tube axial fan stands out for its robustness, crafted from thick carbon steel and cut with high-precision laser equipment.

• With safety in mind, the tube axial fan features a mesh cover at the air outlet to block foreign objects and protect internal components.

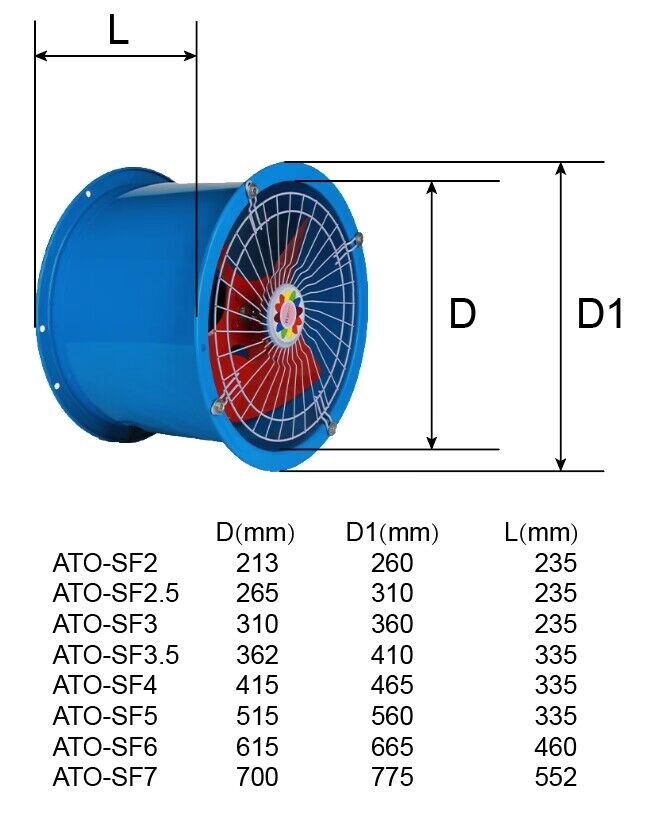

Dimension

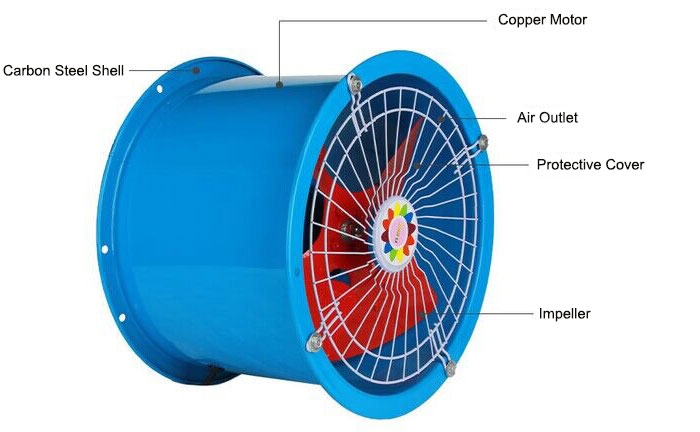

Details

Applications

Axial fan blowers are commonly utilized across multiple sectors, including building ventilation, data center cooling, automotive and aerospace air conditioning, as well as in power plants and industrial operations like chemical and food processing.

Tips: How to install a tube axial fan?

Installing a tube axial fan generally involves the following steps:

• Choose the installation spot: Identify the area where ventilation is needed, such as a bathroom, kitchen, or utility room. This will be the location for installing the axial tube fan.
• Measure the designated space: Use a tape measure to determine the dimensions of the space where the axial fan will be placed. Ensure that the tube axial fan matches the dimensions for a proper fit.
• Create an opening if necessary: If a suitable hole doesn’t already exist, carefully cut one using a saw or drill that fits the tube axial fan’s size requirements.
• Mount the axial blower: Position the tube axial fan within the opening and fasten it securely using appropriate mounting hardware like screws or brackets to ensure it stays firmly in place.
•  Attach the duct system: Connect the axial fan to the ventilation ducting. Be sure to seal all joints properly to avoid any air leaks that could reduce efficiency.
• Add a protective grille: Install a front grille over the exposed part of the tube axial fan. This prevents debris from entering and ensures user safety by covering the fan blades.
• Test and adjust: Power on the blower and check for proper operation. Adjust airflow direction or speed if necessary to meet your ventilation needs.
