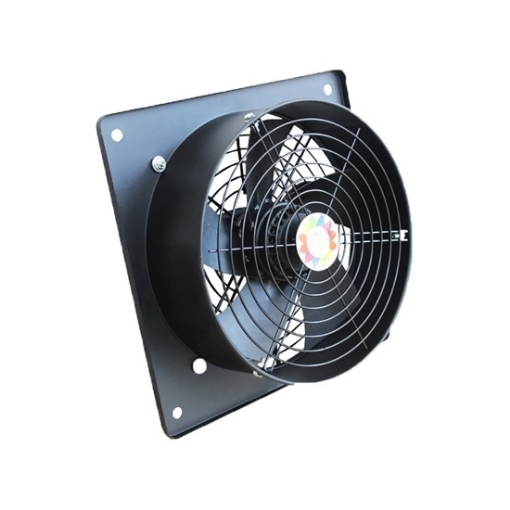

Wall Mounted Axial Plate Fan, 8/10/12/16/20/24 inch

The wall-mounted axial plate fan is designed for effective air circulation in both industrial and commercial environments. Featuring axial impellers in sizes of 8, 10, 12, 16, 20, and 24 inch, this fan is mounted on a flat plate and serves reliably in ventilation, cooling, and airflow applications.

SKU: T-PMAF-FZW

Impeller Diameter *
Rated Voltage *

$173.59

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

Affordable wall-mounted axial plate fan for sale, with impeller diameters of 8, 10, 12, 16, 20, and 24 inch, designed to operate on 220V or 380V AC. This plate-mounted axial fan features durable construction and strong airflow performance, making it ideal for exhausting heat, smoke, and airborne particles in various industrial and commercial settings.

Specification

Model	T-FZW-4E/D200	T-FZW-4E/D250	T-FZW-4E/D300	T-FZW-4E/D350	T-FZW-4E/D400	T-FZW-4E/D500	T-FZW-4E/D600
Impeller Diameter	8 inch (200mm)	10 inch (250mm)	12 inch (300mm)	14 inch (350mm)	16 inch (400mm)	20 inch (500mm)	24 inch (600mm)
Rated Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Pole	4 Pole
Current	0.20A	0.22A	3.33A/0.23A	0.7A/0.42A	0.80A/0.51A	1.78A/0.85A	3.20A/1.62A
Input Power	40W	50W	70W/80W	150W/145W	185W/180W	340W/310W	700W/820W
Rated Speed	1450rpm	1400rpm	1350rpm/1400rpm	1360rpm	1360rpm	1390rpm/1395rpm	1310rpm/1350rpm
Air Volume	510m³/h	1300m³/h	2200m³/h	2950m³/h/3100m³/h	4350m³/h/4450m³/h	7100m³/h/7200m³/h	10600m³/h/12600m³/h
Total Pressure	70Pa	80Pa	160Pa	130Pa	140Pa	140Pa/160Pa	270Pa/260Pa
Noise	53db(A)	553db(A)	613db(A)	653db(A)	683db(A)	753db(A)	783db(A)
Environment Temperature	-40℃~+55℃
Altitude	55 Kpa (2500m)
Relative Humidity	90%~95%RH

Dimension (Unit: mm)

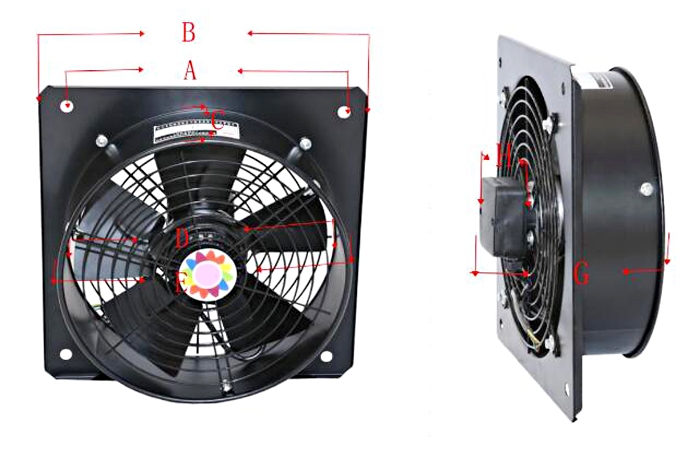

Plate mounted axial fan dimension

Model	A	B	C	D	E	G	H
T-FZW-4E/D200	218	275	100	210	225	150	45
T-FZW-4E/D250	274	325	102	260	275	155	45
T-FZW-4E/D300	325	375	107	315	330	160	40
T-FZW-4E/D350	370	425	132	365	378	190	50
T-FZW-4E/D400	428	480	140	415	430	195	50
T-FZW-4E/D500	525	590	157	515	530	215	50
T-FZW-4E/D600	620	686	183	625	640	235	50

Tips: Square plate mounted axial fan applications

Wall-mounted axial plate fans are commonly utilized across industrial and commercial sectors due to their capability to efficiently move large volumes of air with minimal pressure. These fans are usually mounted on walls, ceilings, or ducts and are engineered to support ventilation, cooling, and airflow circulation in diverse environments.

In industrial environments, they play a key role in extracting heat, smoke, and airborne particles from production areas, contributing to safer and more comfortable workplace conditions. Within commercial buildings, these axial fans are integrated into HVAC systems to enhance indoor air quality and help maintain consistent temperature levels. In agricultural settings, they are used to ventilate barns and greenhouses, helping to eliminate noxious gases and support the well-being of crops and livestock.

With their durable construction, easy installation, and high airflow capability, plate-mounted axial fans serve as a reliable and adaptable choice for meeting diverse ventilation requirements.
