If you need a air screwdriver tool that will give long reliable service in industrial production situations, our 65Nm max torque, 7000rpm no load speed pistol grip pneumatic screwdriver is your best choice. It offers superior industrial quality at reasonable prices, has an ergonomic handle mechanism resistant and it is reversible.
Specification
| Model |
T-KP-840P |
| Type |
Pistol grip air screwdriver |
| Max Torque |
65Nm |
| No Load Speed |
7000rpm |
| Air Inlet |
1/4" (6.35mm) |
| Collet Size |
1/4" |
| Bolt Capacity |
5-8mm |
| Air Hose Inner |
6.5mm |
| Working Pressure |
90 psi |
| Average Air Consumption |
0.22m3/min |
| Overall Length |
190mm |
| Weight |
1.3kg |
| Packing Included |
1 * Air Screwdriver
1 * Mini Screwdriver Bit
1 * Adjustable Air Valve (Can be connected to the air inlet, used for adjusting speed and torque)
1 * Steel Ring |

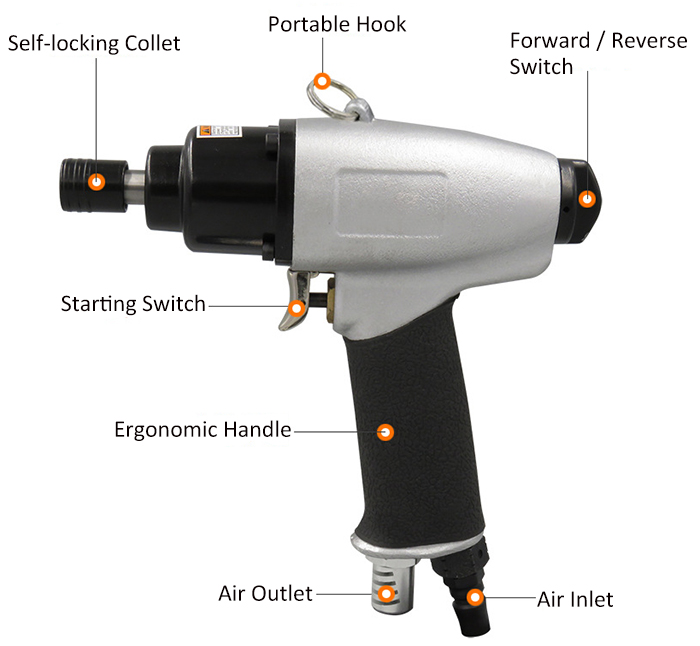

Details
Tips: Air Screwdrivers Advantages on Tool.com
1. No load Speed: The no load speed of air pneumatic screwdriver is generally within 500-8000r/min. Because the motor is driven by high-pressure air, the high-pressure air will take away the heat generated by the friction of the parts during operation, so it will not get hot during long-term and high-frequency operation.
2. Torque accuracy: Pneumatic screwdrivers use mechanical braking, and changes in air pressure will affect the torque stability of the screwdriver, so the error is relatively large, and the repeatability is about 5%-3%. (It would be better if you install an air regulator.)
3. Energy consumption: Using compressed gas as the actuation source, as long as the air pipeline is properly installed, the air consumption of each screwdriver is about 0.22m3/min, which is relatively more energy-saving and environmentally friendly.
4. Maintenance cost: There are fewer consumables. As long as you pay attention to regular refilling of special pneumatic maintenance and refueling, there is generally no need to replace parts within one year.
