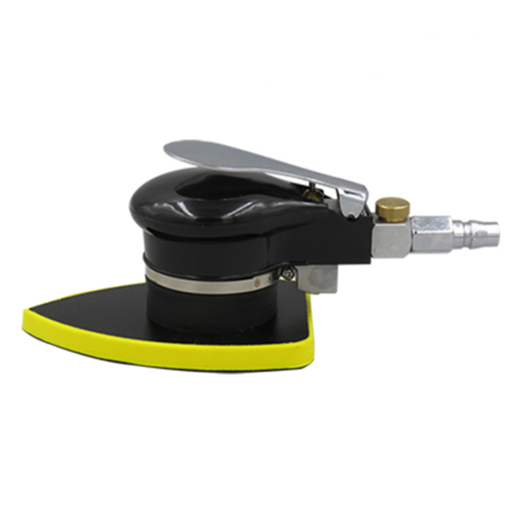

    90X130mm Air Triangle Sander

    Good price air triangle sander for sale. No load speed 12000rpm, air inlet size 1/4 inch (6.35mm), 10cfm gas consumption. Hand-held fuselage, sensitive speed-control switch, convenient and easy to operate. Best choice for your polishing work.
    SKU: T-KP-6762
    WHOLESALE PRICE - The more you buy, the more you save
    Quantity
    50+
    100+
    200+
    500+
    Discount
    5% OFF
    7% OFF
    10% OFF
    14.5% OFF
    $217.39
    i h
    Free shipping
    Delivery date: 6-12 days

    Best air sander designed with the no load speed of 12000rpm, 90X130 mm chassis diameter and unique triangle. The movement is precisely matched by the deflecting spindle, rotor, cylinder and bearing. Turn fast and smoothly, has strong strength and long life.

    Specification

    Model T-KP-6762
    No Load Speed 12000rpm
    Chassis Diameter 90x130mm
    Orbit Diameter 2.5mm
    Tool Size 95*210mm
    Gas Consumption 10cfm
    Working Pressure 90 psi
    Air Inlet Size 1/4 Inch (6.35mm)
    Net Weight 0.73 kg
    Packed Weight 1.0 kg

    Details

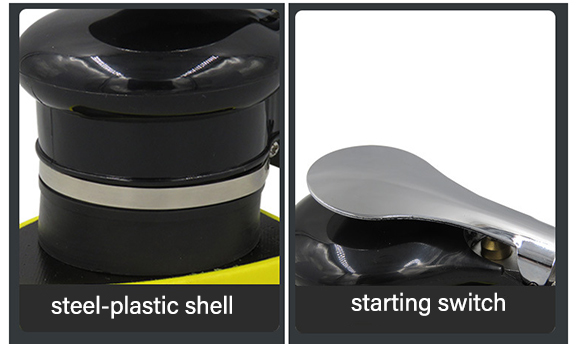

    Part 3 of air triangle sander

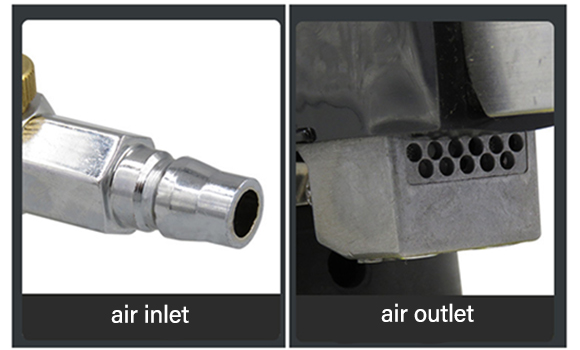

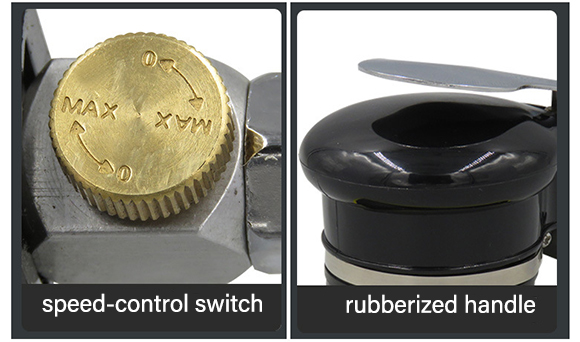

    Part 1 of air triangle sanderPart 2 of air triangle sander

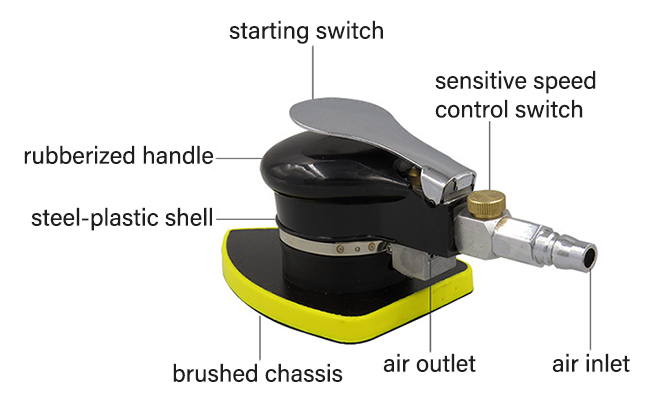

    Details of 90x130mm air triangle sander

    Tips: Operation tips of air triangle sander

    1. When working with the air triangle sander, no one is allowed to stand or work in front of and on both sides of the triangle air sander. The operator must wear protective glasses or take other protective measures.
    2. When the grinding wheel needs to be replaced, the air valve should be closed first, and then replaced. The tightening screw of the grinding wheel should be tightened appropriately, not too tight or too loose.
    3. After installation, the grinding wheel should be started after the manual test is normal. After the idling and slow test operation, check that there is no problem before using it.
    4. When the pneumatic sander is working, it is forbidden to use incorrect operation methods to grind the workpiece.
    5. During the operation of the air triangle polisher, always pay attention to check whether the joint between the wind belt and the grinder is loose. If it is loose, tighten it in time.
