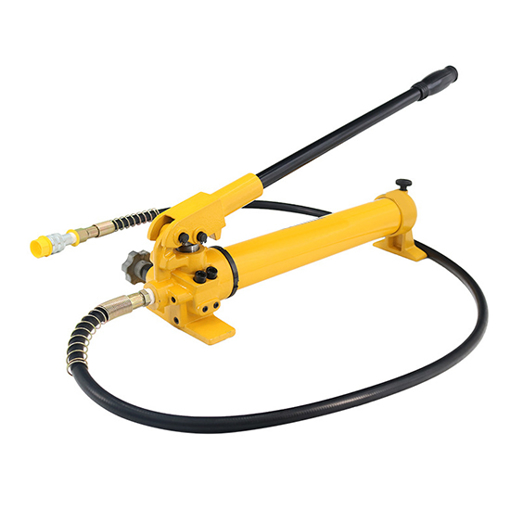

Double-acting hydraulic hand pump is a manual portable tool, oil output is 2-stage of high and low pressure. It can be used with hydraulic pliers, cutting machine, bending machine, punching machine, Jack and other split hydraulic tools.
Specification
Model |
T-CP-700 |
T-CP-700B |
T-CP-700A |
Max. Output Pressure |
kg/cm² |
700 |
psi |
10,000 |
bar |
689 |
Pressure Rating |
Low Pressure |
20 kg/cm² |
High Pressure |
700 kg/cm² |
Oil Amount/min |
Low |
13cc |
High |
2.3cc |
Oil Reservoir Capacity |
900 cc |
1,200 cc |
3,200 cc |
Default Oil Pipe Length |
2m |
2m |
2m |
Size |
mm |
660*180*180 |
750*180*270 |
770*180*180 |
inch |
26*7*7 |
29.5*7*10.6 |
30*7*7 |
Weight |
9.5 kg |
10 kg |
12 kg |
Features
- The hydraulic hand pump has high and low pressure 2-stage design, with fast oil delivery speed. The working pressure and function are the same as the electric pump.
- Manual operation mode, oil pipe can be lengthened, with quick joint, pressure gauge (optional).
- Pressure can be stopped in the middle of operation, built in high-pressure safety protection hydraulic valve.
- Oil tube joint is adapted to PT3/8" thread.

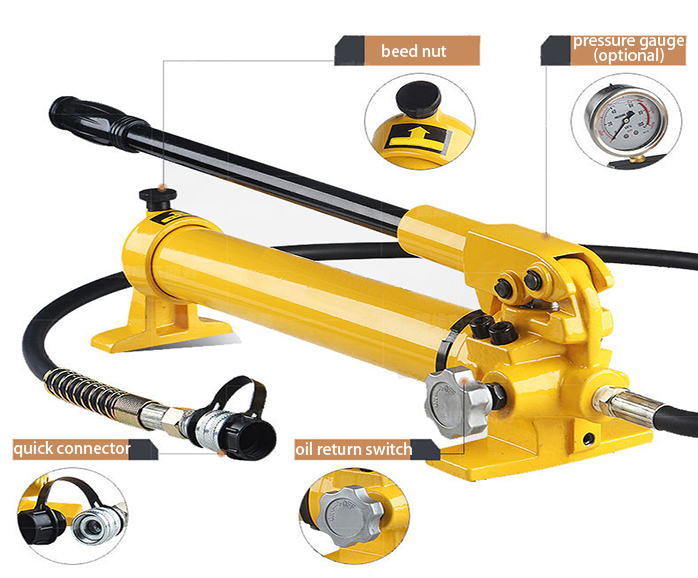

Hydraulic Hand Pump Structure Diagram

Hydraulic Hand Pump Usage
- Connect the high-pressure oil pipe female joint of the main pump and the male joint of the sub-machine oil pressure cylinder, and tighten them.
- Tighten the oil return switch of the pump clockwise, shake the handle repeatedly to advance piston until the work is completed.
- After completion, loosen the oil return switch counterclockwise to reset the piston.
Tips: Solutions to the failure of oil output and pressure for hydraulic hand pump.
Malfunction |
Cause |
Solution |
When using hydraulic hand pump, there is a sudden drop in oil delivery and pressure. |
1. The high-pressure spring or the low-pressure valve spring is permanently deformed or broken. |
Replace with a new high-pressure valve spring or low-pressure valve spring. |
2. The low-pressure valve contains impurities, which destroys the sealing performance of check valve and low-pressure valve. |
Disassemble the oil pump and clean it with gasoline. Then reassemble oil pump and inject clean oil. |
Delivery volume of the oil pump is reduced, and the pressure is insufficient or no pressure at low pressure. |
1. Low-pressure valve spring is damaged or loses its elasticity. |
Replace the low-pressure valve spring. |
2. Low-pressure valve port is slightly worn. |
Correct the valve port. |
