    Pneumatic Pop Rivet Gun, 3/32" - 3/16", 85 PSI

    Pneumatic pop rivet gun for sale at wholesale price, suitable for 3/32”, 1/8", 5/32", 3/16" aluminum rivets, steel rivets and iron rivets. Working pressure 85 PSI, air inlet 1/4 inch, air consumption 5 CFM. Air hydraulic riveter made from high quality alloy material and designed for ergonomic handle, comfortable to operate.
    SKU: T-PRG-316
    WHOLESALE PRICE - The more you buy, the more you save
    Quantity
    20+
    50+
    100+
    Discount
    2% OFF
    5% OFF
    10% OFF
    $151.39
    i h
    Free shipping

    The original diameter of nozzle on the pneumatic pop rivet gun is 3/16” (4.8mm), 3/32” (2.4mm), 1/8" (3.2mm) and 5/32" (4.0mm) nozzles are included in the package. You could replace different sizes of nozzles according to the diameter of rivets. 2 PCS combination wrenches are included in the package to help you change the nozzle.
    Our low price air powered hydraulic riveter is a professional fastening tool designed for plate metals, pipe materials, cabinets, cases among other things. The rivet tool is as well as widely used in home decoration, luggage production, automobile manufacture, and electrical appliance assembly.

    Specification

    Model T-PPRG-316
    Rivet Capacity 3/32", 1/8", 5/32", 3/16" (2.4mm, 3.2mm, 4.0mm, 4.8mm)
    Power Source Air Powered
    Working Pressure 85 PSI (0.6 MPa)
    Air Inlet Size 1/4 inch (6.35mm)
    Air Consumption 5 CFM
    Pulling Power 18000N
    Maximum Stroke 20mm
    Body Dimension 190m * 235mm
    Weight 1.08kg
    Package Included 1 PC Pneumatic Riveter
    3 PCS Nozzles
    1 PC Oil Injector
    1 PC Oil
    2 PCS Combination Wrench
    1 PC Hex Key

    Dimension

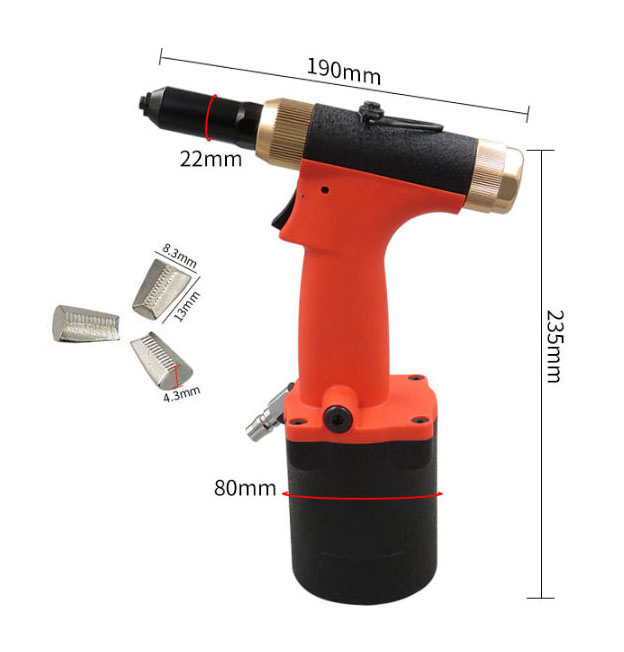

    Dimension of Pneumatic Pop Rivet Gun

    Details

    1. Nozzle
    2. Oil Filling Port
    3. Starting Switch
    4. Ergonomic Handle
    5. Air Source Switch
    6. Universal Joint
    7. Air Outlet
    8. Air Cylinder

    Details of Pneumatic Pop Rivet Gun

    7 tips for using an air riveter

    1. Before using a pneumatic rivet gun, inject a small amount of lubricating oil into the air inlet in order to extend its working life.
    2. Keep the specified air pressure. The air pressure below 0.6MPa (85 PSI) will reduce the power of the air rivet gun and decrease in work efficiency.
    3. Press the starting switch or trigger only after the rivet firmly on the nozzle. Otherwise, the piston will produce back and forth movement and hit the shell, so that the pneumatic riveter damage.
    4. Hold ergonomic handle with right hand, and press the starting switch with the index finger to use the air rivet gun. The compressed air size can be adjusted with the starting switch to ensure it works steadily.
    5. Riveting different sizes of rivets must use corresponding size nozzles. The nozzle and the rivet don’t match, which not only decreases in work efficiency, but also damages the air riveter.
    6. Don’t press the starting switch without rivets in use to avoid damaging the air rivet tool.
    7. Strictly prohibit the pneumatic rivet gun against people.
