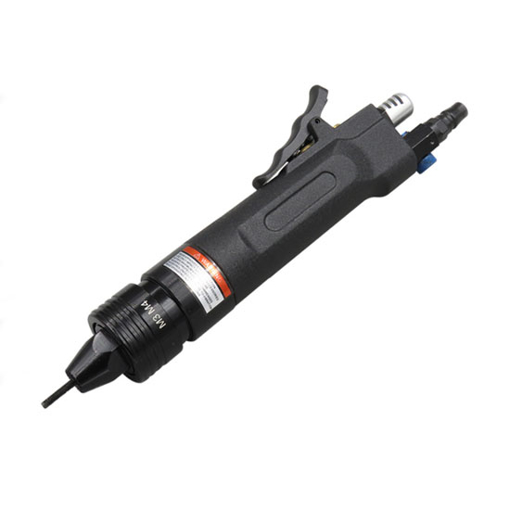

Pneumatic rivet nut gun can spin automatically M3 and M4 nutserts onto the thread mandrel tip, which helps you rivet sheet metal, plastic pipe, wood and other thick material in your workplace. The air nut riveter is applied to various fields, such as decoration, automobile industry, chassis manufacturing and so on. Designed with self-locking collet, it is simple and convenient to operate, which allows you to improve work efficiency. It is your best choice to buy our air rivet nut tools.
Specification
Model |
T-PRNG-M34 |
Threaded Size |
M3/M4 |
No Load Speed |
1500rpm |
Working Pressure |
0.6 - 0.8MPa |
Air Consumption |
5CFM |
Air Inlet Size |
1/4 inch |
Body Dimension |
300 * 41mm |
Weight |
1kg |
Body Dimension

Tips: How to Install the Thread Mandrel Tip of the Pneumatic Rivet Nut Gun?
1. Insert the connecting rod into the self-locking collet of the air rivet nut tool.
2. Press the self-locking ring of the air powered nut riveter inward.
3. Point the thread mandrel tip of the air rivet nut gun at the connecting rod and put in in.
4. Release the self-locking ring and lock the thread mandrel tip to finish the installation.
