    RV TPMS with 6 Tire Sensors, Solar Power

    RV tire pressure monitoring system contains a color LED display, optional 6 external or internal sensors, a hex wrench and some installation accessories. RV TPMS display with solar cell & built-in a explosion-proof lithium battery, solar powered or USB charging, real-time monitoring & different alarms for tire pressure/temperature/leakage and low-battery, best choice for RV, trailer or cars.
    SKU: T-TPMS-RV1
    *
    Wholesale Price - The more you buy, the more you save
    Quantity
    10+
    20+
    50+
    Price
    3% OFF
    5% OFF
    10% OFF
    $247.68
    i h
    Free shipping
    Delivery date: 6-12 days

    RV TPMS with a solar-powered or USB charging LED display and 6 tire sensors (external or internal sensors), adopts wireless remote sensing technology to realize every tire pressure & temperature monitoring in real-time.

    Features:

    • TPMS for RV can real-time monitor the tire pressure and temperature of your car and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
    • RV TPMS provides five types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm and sensor low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
    • TPMS display comes with two charging methods, namely, solar power and USB power. The display can automatically perform the solar charging and automatically adjust the brightness. Don’t worry about running out of power on the road.
    • With built-in explosive-proof lithium battery and charging protection, there is no need to worry about charging at the high temperature. It provides a safe guard for TPMS and extend its service life.
    • The RV tire pressure monitor comes with 6 tire sensors, suitable for RV, trailer and car, and the display can show 4 tire or 6 tire pressure and temperature just with one-key to change.
    • Adopting advanced chip, TPMS features high sensing accuracy, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop and anti-theft.

    Specification:

    Basic Model T-T650-WF1 T-T650-WI1 T-T650-WF2 T-T650-WI2 T-T650-TL T-T650-NF+ T-T650-TJ T-T650-TK
    Weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
    Pressure range 0-8 bar 0-8 bar 0-8 bar 0-8 bar 0-8 bar 0-8 bar 0-8 bar 0-8 bar
    Accuracy <0.01 bar <0.01 bar <0.01 bar <0.01 bar <0.01 bar <0.01 bar <0.01 bar <0.01 bar
    Packing included 1 * LED display with solar cell;
    6 * silver tire sensors;
    6 * theftproof nuts;
    1 * hex wrench;
    1 * USB power cable;
    2 * wrenches for sensor;
    1 * non-slip mat
    1 * LED display with solar cell;
    6 * silver tire sensors;
    6 * theftproof nuts;
    1 * hex wrench;
    1 * USB power cable;
    2 * wrenches for sensor;
    1 * non-slip mat
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * theftproof nuts;
    1 * hex wrench;
    1 * USB power cable;
    2 * wrenches for sensor;
    1 * non-slip mat
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * theftproof nuts;
    1 * hex wrench;
    1 * USB power cable;
    2 * wrenches for sensor;
    1 * non-slip mat
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * theftproof nuts;
    1 * hex wrench;
    1 * USB power cable;
    2 * wrenches for sensor;
    1 * non-slip mat
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * air taps;
    1 * hex wrench;
    1 * USB power cable;
    1 * non-slip mat;
    1 * installation note;
    4 * paster
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * air taps;
    1 * hex key;
    1 * USB power cable;
    1 * non-slip mat;
    1 * installation note;
    4 * paster
    1 * LED display with solar cell;
    6 * black tire sensors;
    6 * air taps;
    1 * hex key;
    1 * USB power cable;
    1 * non-slip mat;
    1 * installation note;
    4 * paster
    Function Wireless remote sensing technology, predict air leakage, prevent tire burst, detect swelling, reduce wear, prevent running deviation
    LED display Size (L*W*H) 120*45*34mm
    Data update frequency 1 time/3 second
    Battery Explosion-proof lithium battery with 5-6 years warranty
    Power supply Solar cell, USB charger
    Working temperature 0-80℃
    >70℃, LED display will stop charging
    >80℃, LED display will stop working
    When LED display gets back to normal temperature, it will restore real-time monitoring status
    Function High-pressure alarm (4 bar), low-pressure alarm (2 bar), high-temperature alarm (65℃), air leakage alarm, tire sensor low-battery alarm, battery charging protection, optional 6 tires detection or 4 tires detection
    Tire sensor Installation mode External External External External External Built-in Built-in Built-in
    Size Diameter: 23mm, Height: 15mm Diameter: 18mm, Height: 13mm Diameter: 23mm, Height: 15mm Diameter: 18mm, Height: 13mm Diameter: 23mm, Height: 15mm L*W*H: 69*32*15mm L*W*H: 60*30*15mm L*W*H: 69*32*15mm
    Dynamic balance detection No need No need No need No need No need Need Need Need
    Battery warranty 2-3 years 1-2 years 2-3 years 1-2 years 2-3 years 5-6 years 2-3 years 5-6 years
    Battery replacement By user By user By user By user By user By user By manufacture By user

    TPMS Display:

    RV Tire Pressure Monitoring System Display Sizes and Details

    TPMS Sensors:

    • Mini External Sensor (WI Version) | Standard External Sensor (WF Version)

    TPMS External Sensors Sizes

    • Standard Internal Sensor (TJ Version) | Upgraded Internal Sensor (NF+ Version)

    TPMS Built-in Sensors Sizes

    Package Included:

    • T-T650-WF1 TPMS w/ External Sensors (Silver)
    • T-T650-WI1 TPMS w/ Mini External Sensors (Silver)
    RV TPMS with external silver sensors packing list RV TPMS with Mini External Silver Sensors Packing List
    • T-T650-WF2 TPMS w/ External Sensors (Black)
    • T-T650-WI2 TPMS w/ Mini External Sensors (Black)
    RV TPMS with External Black Sensors Packing List RVTPMS with Mini External Black Sensors Packing List
    • T-T650-TL TPMS w/ External Sensors (Black)
    • T-T650-NF+ TPMS w/ Upgraded Internal Sensors

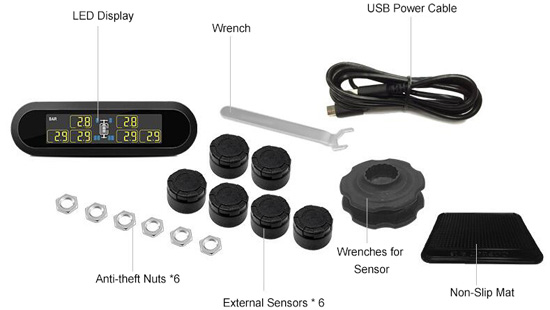

    6-Tire TPMS with External Black Sensors Packing List RV TPMS with Built-in Black Sensors Packing List
    • T-T650-TJ TPMS w/ Internal Sensors
    • T-T650-TK TPMS w/ Internal Sensors
    6-tireRV TPMS with Built-in Black Sensors Packing List 6-tire TPMS with Built-in Black Sensors Packing List

    Tips: How to replace the tire pressure sensor battery of TPMS
    First of all, confirm that the battery of the tire sensor can be removed by the car owner. Otherwise, the tire pressure sensor should be sent back to the TPMS manufacture.
    Then confirm the type of tire sensor. The tire pressure sensor of TPMS is divided into two types: external tire sensor and internal tire sensor.
    Below we respectively introduce how to replace the batteries of these two kinds of sensors.

    1. External sensor:
      1. Take out the theftproof nut, put the external sensor into one of the sensor wrench, and use another sensor wrench to unscrew the shell.
      2. Remove the old battery and put in the new battery.
      3. Install the shell and the theftproof nut back to complete the battery replacement.
    2. Internal sensor:
      1. Use a screwdriver to remove the battery compartment cover and remove the battery plate.
      2. Take out the old battery and put in the new battery.
      3. Install the battery plate and the battery compartment cover back to complete the battery replacement.
