Solar Power Car TPMS with 4 Tire Sensors

Solar powered TPMS for car has a solar cell on the top of LED display. Optional external/ internal 4 tire sensors can real-time monitor all the 4 tire pressure & temperature.

Features:

• TPMS can real-time monitor the tire pressure and temperature of your car and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
• Solar power TPMS provides five types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm and sensor low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
• TPMS display comes with two charging methods, namely, solar power and USB power. The display can automatically perform the solar charging and automatically adjust the brightness. Don't worry about running out of power on the road.
• With internal explosive-proof lithium battery and charging protection, there is no need to worry about charging at the high temperature. It provides a safe guard for TPMS and extend its service life.
• Adopting advanced chip, TPMS features high sensing accuracy, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop off and anti-theft.

Specification:

TPMS Display:

TPMS Sensors:

• Mini External Sensor (WI Version) | Standard External Sensor (WF Version)

• Standard Internal Sensor (TJ Version) | Upgraded Internal Sensor (NF+ Version)

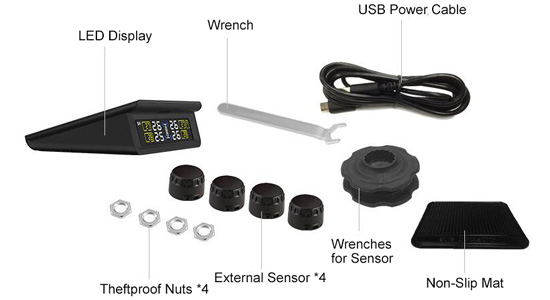

Package Included:

T-T86-WF1	T-T86-WI1
T-T86-WF2	T-T86-WI2
T-T86-TL	T-T86-NF+
T-T86-TJ	T-T86-TK

Tips: Types of Tire Pressure Monitoring System

1. Wheel-Speed ​​Based TPMS is an indirect tire pressure monitoring system, which is also called WSB. WSB needs to compare the speed difference between tires through the wheel speed sensor of the car's ABS system to achieve the purpose of monitoring tire pressure. ABS uses the wheel speed sensor to determine whether the wheels are locked, thereby determining whether to activate the anti-lock braking system. When the tire pressure decreases, the weight of the car will make the tire diameter smaller, and then the car speed will change. Once the car speed is changed, it will trigger the WSB's alarm system to remind car owners to pay attention to insufficient tire pressure. Therefore, indirect TPMS is a passive mode TPMS.
2. Pressure-Sensor Based TPMS is a direct tire pressure monitoring system, generally shortened to PSB. PSB uses a pressure sensor installed on the tire to measure the tire pressure, and uses a wireless transmitter to send pressure information from the tire to the monitoring system central receiver, and then display the tire pressure data on the LCD display. When the tire pressure is over-high, over-low or leaks, the system will alarm. Therefore, direct TPMS belongs to active mode TPMS.
3. In addition to PSB and WSB, there is also a composite TPMS on the market, which has the advantages of both PSB and WSB. Equipped with direct sensors in two diagonal tires, and install a four-wheel indirect system. Compared with the direct system, this composite system can reduce the cost and overcome the shortcoming that the WSB TPMS cannot detect the simultaneous low air pressure of multiple tires. However, this composite TPMS still cannot provide real-time data display of the actual pressure of all tires like PSB.

Therefore, we still recommend that car owners purchase PSB TPMS. Our PSB system can not only monitor the pressure and temperature of all tires, but also monitor the battery level of the sensors, which is most cost-effective.
