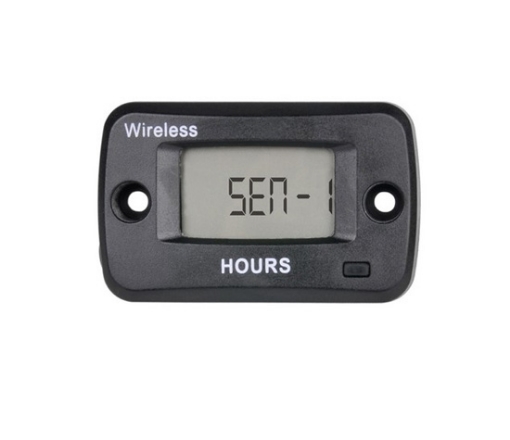

Wireless Vibration Hour Meter for Dirt Bike

Wireless Vibration Hour Meter for Dirt Bike from TOOL Store is the ultimate solution for hassle-free maintenance tracking. Engineered with advanced vibration-sensing technology, this digital hour meter eliminates complex wiring, making it the perfect engine timer for any small engine, including motocross bikes, generators, and lawn mowers. Featuring an IP68 waterproof design, it ensures reliable performance in the toughest outdoor conditions.

Specs

Pro Tip: For the most accurate vibration sensing, install the meter as close to the cylinder head or engine block as possible. If you're transporting your bike, remember to activate the Transport Lock to prevent false hour logging caused by trailer movement.

Features

1. 100% Wireless Installation

• No Wiring Needed: High-sensitivity vibration sensor automatically tracks engine hours.
• Peel-and-Stick: Heavy-duty 3M VHB adhesive for quick mounting on any engine surface.

2. Dual Maintenance Tracking

• TOT Mode: Non-resettable lifetime hour counter for total equipment age.
• JOB Mode: Resettable timer for oil changes and routine engine maintenance.

3. IP68 Waterproof & Rugged

• Power-Wash Safe: Fully epoxy-sealed to withstand mud, rain, and high-pressure cleaning.
• Extreme Durability: Impact-resistant housing built for dirt bikes, ATVs, and mowers.

4. Transport Lock & Smart Sensing

• Anti-False Timing: Built-in lock mode prevents phantom hours during transport.
• Adjustable Sensitivity: 2-level vibration detection to match any engine type.

5. Extended Battery & Clear LCD

• 5-Year Life: Long-lasting CR2450 battery with ultra-long standby performance.
• Backlit Display: Ensures clear reading of hour meter data in any lighting conditions.

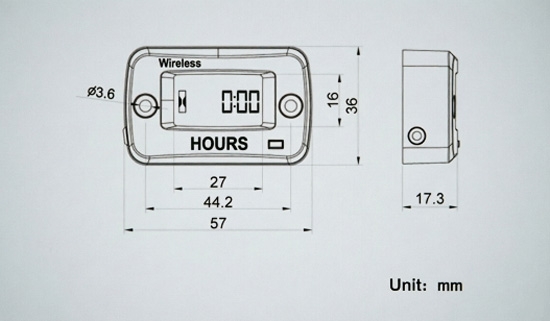

Dimension

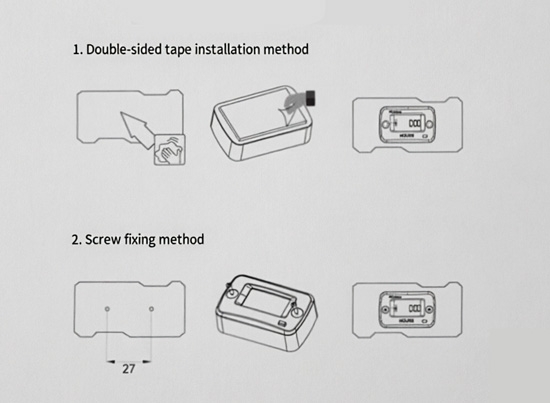

Installation

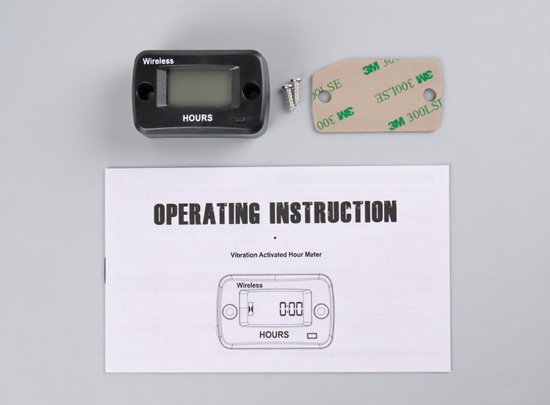

Packing List

• Wireless Hour Meter x 1
• CR2450 Battery (Pre-installed)
• 3M Adhesive Strip x 1
• User Manual (English) x 1

Applications

The wireless vibration hour meter tracks usage from rugged off-road riding to marine and industrial applications. Suitable for motorcycles, ATVs, lawn mowers, generators, and construction equipment, the device delivers precise engine hour tracking through motion sensing, even in harsh, wet, and high-vibration conditions.

FAQs

Q1: How do wireless hour meters track engine hours?

A: Wireless hour meter technology utilizes an internal vibration sensor to detect machine movement. Once vibration is sensed, recording of engine hours begins automatically without induction wires or external power.

Q2: Are vibration hour meters waterproof for marine use?

A: Yes. Featuring an IP68 waterproof rating and fully sealed epoxy housing, vibration hour meter models operate reliably on marine jet skis, dirt bikes, and equipment subject to high-pressure washing.

Q3: Do wireless vibration hour meters record "false hours" during transport?

A: No. Transport Lock mode prevents sensors from recording unintended data caused by trailer or truck vibrations during transit. Activating this function ensures accuracy by logging only actual machine runtime.
