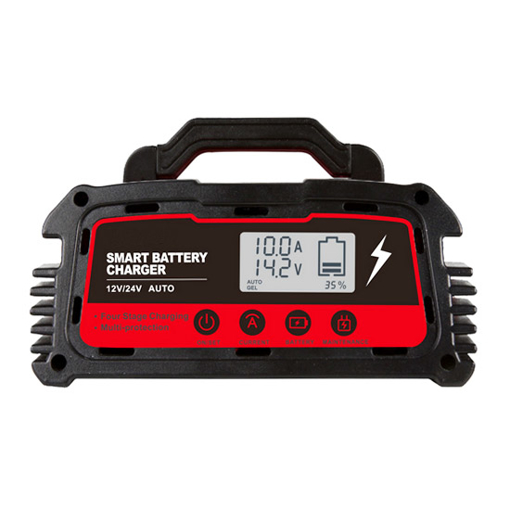

    10 Amp Battery Charger, 6/8/10A 12V, 6A 24V

    Cheap price 10 amp battery charger for all lead-acid batteries, AC 110V~220V 50/60Hz input, 6A-8A-10A (12V) or 6A (24V) output, aluminum alloy shell, optional power plugs, automatically recognizing types of battery, supporting automatic charging mode and manual charging mode.
    SKU: T-BAC-3
    Wholesale Price - The more you buy, the more you save
    3% OFF
    5% OFF
    10% OFF
    i h
    Free shipping
    Delivery date: 6-12 days

    Portable 10 amp battery charger with foldable handle on the top, adopts 4-step charging processes of constant current mode, constant voltage mode, floating charge mode and full charging stop mode.


    Model T-DC-100
    Shipping weight 2kg
    Size (L*W*H) 195*145*115mm
    Display LCD display with backlight shows battery current/ voltage/ level, battery type and recognition mode.
    Applicable battery 12VDC/24VDC lead-acid batteries, including AGM, GEL, sealed lead acid battery, dry-charged battery, maintenance-free battery.
    Note: Lithium battery is forbidden.
    Input voltage AC 110V~220V ± 20V
    Input frequency 50Hz/60Hz
    Output voltage DC 14.8V/29.6V ± 0.3V
    Output current 6A-8A-10A (12V), 6A (24V)
    Note: Current can be manually selected or automatically charged at the default current value.
    Peak power 230W
    Types of power plug * US, EU, UK, Germany, Australia, Japan, South Africa, Brazil, or other customized plugs.
    Input cable length 133cm
    Output cable length 75cm
    Transformer coil material Pure copper
    Shell material Aluminum alloy
    Charging function Constant current mode, constant voltage mode, floating charge mode and full charging stop mode
    Protection function Overcharge protection, low voltage protection, overvoltage protection, reverse connection protection, short circuit protection, high-temperature protection.
    Maintainer function Apply for the batteries idled for a long time, batteries with poor starting ability and old batteries.
    Note: It can't repair short-circuit batteries and open-circuit batteries. It also can't repair a battery back to 100% new.
    Certification CE, RoHS, FCC

    Charging time table:
    There are 3 optional charging currents for choosing: 6A/8A/10A.

    Battery capacity Charging time
    6A 8A 10A
    20Ah 3h~5h 2h~3h 1h~2h
    36Ah 6h~8h 4h~5h 2h~3h
    60Ah 8h~10h 6h~7h 3h~4h
    80Ah 12h~15h 8h~9h 4h~5h
    100Ah 18h~20h 10h~11h 6h~8h
    160Ah ≥22h 13h~15h 8h~12h
    200Ah ≥22h ≥18h ≥14h

    Note: The above data is the actual reference charging time for battery under the normal state. For the vulcanized battery with large internal resistance, the charging time is not as the reference standard.

    Tips: Battery charging/maintaining operation steps

    1. Connect the positive and negative poles correctly and turn on the power key (the first button on the left).
    2. The data on the LCD screen flashes, indicating that it is in the standby state.
    3. Select the required current according to the battery capacity (the second button on the left).
    4. Select the battery type, there are two types of AGM and GEL to choose (the third button on the left).
    5. Press and hold the first button on the right for about 8 seconds, a snowflake sign will appear, and it will enter the battery repair mode.

    Except AGM/GEL batteries, other batteries can be charged directly by pressing the power key.
