The digital overhead stirrer is an electric laboratory mixer, suitable for beaker or other container with maximum volume of 10L/20L. Stirring materials are liquid-liquid or liquid-solid (powder), including reagent, dye, paint, coating, etc.
Specification
Model |
T-OSC-10L |
T-OSC-20L |
T-OS-10L |
Max. Stirring Volume |
10L |
20L |
10L |
Motor Input Power |
72W |
200W |
72W |
Motor Output Power |
60W |
180W |
60W |
Rated Power |
80W |
210W |
80W |
Display |
LCD Digital Display |
LCD Digital Display |
- |
Speed Display Resolution |
±1 rpm |
±1 rpm |
- |
Maximum Torque |
20N.cm |
40N.cm |
20N.cm |
Maximum Viscosity |
10000mPas |
30000mPas |
10000mPas |
Rated Voltage |
100-240V, 50/60Hz |
Speed |
100-2000 rpm |
Speed Increment/Decrement |
20 rpm |
Clamping Chuck Diameter |
0.5-10mm |
DIN EN60529 Protection Mode |
IP42 |
Allowable Ambient Temperature |
5-40℃ |
Allowable Ambient Humidity |
80% |
Timing Range |
0-999min |
Overall Size |
200*315*600mm |
Weight |
9kg |
Attachment |
Non-slip base, cross bracket, condensation clamp, wrench, stainless steel bracket, 2-blade stirring paddle, 3-blade stirring paddle |
Features
- The laboratory overhead stirrer uses a DC permanent magnet motor, which has strong power and can work continuously for a long time, with low noise, large torque, large stirring force and stable operation.
- Speed regulation and timing function. The control panel can control the stirring time and mixing speed.
- Stirring paddle of the laboratory digital overhead stirrer is made of stainless steel, which is not easy to rust and is acid and alkali resistant. Machine shell is made of ABS high-strength plastic, which is resistant to high temperature and corrosion.

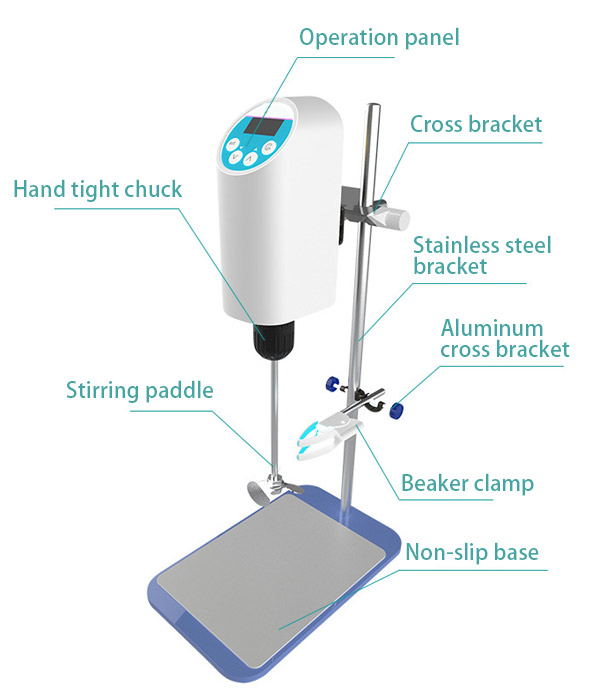

Laboratory Digital Overhead Stirrer Structure Diagram


Laboratory Digital Overhead Stirrer Attachment
