Laboratory overhead stirrer is an electric laboratory mixer with LED digital display for selection. Stirring liquid-liquid or liquid-solid (powder) with low, medium and high viscosity. Applicable materials include reagent, dye, paint, coating and others.
Specification
Model |
T-ES-60SH |
T-ES-60 |
T-ES-120SH |
T-ES-120 |
T-ES-200SH |
T-ES-200 |
Max. Stirring Volume |
20L |
40L |
60L |
Digital Display |
LCD |
- |
LCD |
- |
LCD |
- |
Recommended Stirring Amount |
5L |
10L |
15L |
Speed |
100-2000 rpm |
100-2000 rpm |
100-2000 rpm |
Motor Input Power |
72W |
120W |
200W |
Motor Output Power |
60W |
100W |
150W |
Rated Power |
72W |
120W |
192W |
Maximum Viscosity |
10,000mPas |
30,000mPas |
50,000mPas |
Maximum Torque |
20N.cm |
40N.cm |
60N.cm |
Speed Display Resolution |
±10 rpm |
- |
±10 rpm |
- |
±10 rpm |
- |
Rated Voltage |
100-240V, 50/60Hz |
Speed Increment/Decrement |
10 rpm |
Clamping Chuck Diameter |
0.5-10mm |
DIN EN60529 Protection Mode |
IP42 |
Allowable Ambient Temperature |
5-40℃ |
Allowable Ambient Humidity |
80% |
Overall Size |
160*230*600mm |
200*315*600mm |
200*315*600mm |
Weight |
9kg |
10kg |
12kg |
Features
- Laboratory digital overhead stirrer adopts DC permanent magnet motor, which is low noise and maintenance-free. Starts smoothly, effectively preventing the stirring material from overflowing.
- The torque can be automatically adjusted according to the sample viscosity, and the set speed can be maintained.
- Automatically stop running when overloaded, and automatically switch the circuit when encountering abnormal conditions to ensure safe operation.
- Digital overhead stirrer has a color LED,displaying the set value and actual value of the speed, which is convenient for real-time observation and ensures the accuracy of experimental data.
Laboratory Digital Overhead Stirrer Structure Diagram

Note: The beaker in the diagram is not included in packing list, it is only for display effect.
Laboratory Digital Overhead Stirrer Details
 |
 |
Digital LED display Digital display of speed set value and actual value, real-time observation of running time. |
The overhead stirrer without digital display is controlled by the knob. 100-2000 rpm is adjustable, no timing and digital display, quick and simple operation. |
 |
 |
Motor fixing clip/beaker fixing clip Prevent the laboratory overhead stirrer from shaking during operation. Fix the beaker to prevent shaking. |
Stirring paddle The stirring paddle is made of stainless steel. Standard configuration is a 2-blade stirring paddle. |
 |
 |
Hand-tight chuck Manual tightening, good tightening effect, clamping range 0.5-10mm. |

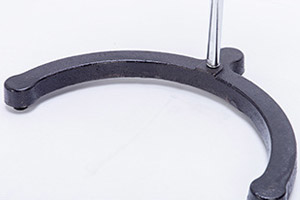

Cast iron base Surface of the base is painted, rust-proof and aggravated, with high stability. |
