    4L~20L 2500 rpm Laboratory Overhead Stirrer

    Competitive price laboratory overhead stirrer for sale. Optional stirring volume 4L/6L/10L/12L/20L, corresponding power 40W/60W/100W/120W/200W, stepless variable speed 0-2500 rpm, maximum stirring viscosity 10000mPas, power supply 220V. Precision type overhead mixer.
    SKU: T-LOS-42025
    *
    Wholesale Price - The more you buy, the more you save
    Quantity
    20+
    50+
    100+
    200+
    Price
    3% OFF
    5% OFF
    7% OFF
    10% OFF
    $177.15
    i h
    Free shipping
    Delivery date: 6-12 days

    Laboratory overhead stirrer is a precision electric overhead mixer, with mechanical timing function. Especially suitable for stirring liquid-liquid/liquid-powder with large volume. It is the best mixing instrument for petroleum, chemical industry, metallurgy, textile, food, medicine and health, environmental protection, biochemical laboratory, analysis room, education and scientific research.

    Specification

    Model T-JJ-1
    Max. Stirring Volume 4L 6L 10L 12L 20L
    Recommended Stirring Amount 0.1-0.3L 0.1-0.5L 0.1-1L 0.1-1L 0.25-2L
    Rated Power 40W 60W 100W 120W 200W
    Maximum Torque 20N.cm 20N.cm 30N.cm 30N.cm 60N.cm
    Speed 0-2500 rpm
    Rated Voltage 220V
    Maximum Viscosity 10000mPas
    Timing Range 0~120min
    Overall Size 400*280*630mm 400*280*630mm 400*280*630mm 400*280*630mm 450*350*860mm
    Weight 8kg 8kg 9kg 9kg 16kg

    Features

    1. Stirring rod of the laboratory overhead stirrer is made of stainless steel, high corrosion resistance.
    2. Motor of the laboratory overhead stirrer is powerful, accurately and stably stirring high-viscosity liquids and solutions in a wide range of speeds. Closed shell to prevent liquid from splashing into the machine and corroding the circuit, ensuring safe operation.
    3. The laboratory overhead stirrer has stepless speed regulation and mechanical timing functions, the stirring time is controlled by the knob.
    4. The 4L-12L laboratory overhead stirrer has a split controller, which can be operated away from the workbench.
    5. The 20L laboratory overhead stirrer has an overhead control cabinet for more convenient operation.

    4L~12L Laboratory Overhead Stirrer Structure Diagram

    Structure of 4L~12L 2500 rpm Laboratory Overhead Stirrer

    20L Laboratory Overhead Stirrer Structure Diagram

    Structure of 20L 2500 rpm Laboratory Overhead Stirrer

    Laboratory Overhead Stirrer Details

    4L~12L Laboratory Overhead Stirrer 20L Laboratory Overhead Stirrer
    Split Controller of 4L~12L 2500 rpm Laboratory Overhead Stirrer Overhead Controller of 20L 2500 rpm Laboratory Overhead Stirrer
    Split controller
    Stepless variable speed, 120 minutes timing.
    Overhead controller
    Stepless variable speed, 120 minutes timing.

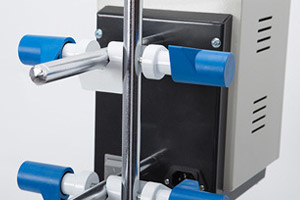

    Cross Connector of 4L~12L 2500 rpm Laboratory Overhead Stirrer Cross Connector of 20L 2500 rpm Laboratory Overhead Stirrer
    Cross connector
    Strong and durable, not easy to slip.
    Cross connector
    Strong and durable, not easy to slip.
    DC Motor of 4L~12L 2500 rpm Laboratory Overhead Stirrer Stirring Rod Connector of 20L 2500 rpm Laboratory Overhead Stirrer
    DC motor
    All-copper core DC motor, runs smoothly and has low heat.
    Stirring rod connector
    Easy to replace the stirring rod
    Universal Clamp of 4L~12L 2500 rpm Laboratory Overhead Stirrer Stirring Paddle of 20L 2500 rpm Laboratory Overhead Stirrer
    Universal clip
    Fix the container, non-slip.
    Stainless steel stirring paddle
    The stirring rod is made of 304 stainless steel, which is not easy to corrode.
    Base of 4L~12L 2500 rpm Laboratory Overhead Stirrer Lifting Rod of 20L 2500 rpm Laboratory Overhead Stirrer
    Cast iron base
    Anti-rust, aggravation, high stability.
    Lifting rod
    The lifting stroke is large, suitable for a variety of experiments.
