    25~55 Ton Hydraulic Crimper Head, 16~1000mm²

    Best price 25 ton/35 ton/55 ton hydraulic crimper head for crimping copper & aluminum terminal connectors. Optional crimping range 16~400mm²/ 16~500mm²/ 150~630mm²/ 400~1000mm², available with 12 dies/ 13 dies/ 7 dies/ 5 dies respectively, stroke 25mm/ 28mm. Used with manual or electric hydraulic pump.
    SKU: T-HCPT-FYQ
    *
    $262.08
    i h
    Free shipping
    Delivery date: 6-12 days

    Remote-powered hydraulic crimping head with dies, are available with 16~400 mm², 16~500mm², 150~630mm², 400~1000mm² crimping range for choice, driven by a hydraulic pump (hand hydraulic pump or electric hydraulic pump). Best crimping tool for copper & aluminum terminals and cables.

    Specification

    Model T-FYQ-400 T-FYQ-500 T-FYQ-630 T-FYQ-1000
    Crimping Range 16~400mm² 16~500mm² 150~630mm² 400~1000mm²
    CrimpingForce 25 Ton 25 Ton 35 Ton 55 Ton
    Stroke 25mm 25mm 25mm 28mm
    Weight 10 kg 10 kg 17 kg 26 kg
    Crimping Die Quantity 12 13 7 6
    Crimping Die Specification 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 mm² 150, 185, 240, 300, 400, 500, 630 mm² 300, 400, 500, 630, 800, 1000 mm²
    Recommended Pump* Hydraulic Hand Pump: T-CP-700
    Hydraulic Electric Pump: T-DYB-63A, T-HHB-700A, T-QQ-700

    *Note: The hydraulic crimper head needs to be used with a hydraulic pump.

    Features

    • For use with hydraulic pump. Hydraulic hand pump is recommended in case of no electricity, portable and easy to carry. The crimping head can also be equipped with electric hydraulic pump to achieve higher crimping efficiency and save time and effort.
    • Crimping force. Maximum pressure up to 25 Ton, 35 Ton or 55 Ton.
    • Hexagonal crimping pattern. Best for crimping copper and aluminum cable terminals, good crimping effect.
    • Crimping dies included. Thickened and compact design, securely installed and not easy to fall off.
    • Humanized handle design. With handle on the top of hydraulic crimper head, user friendly and easy to carry.
    • Connector with plastic dust cap. Hydraulic crimping head comes with a male connector for quick connection to hydraulic pump. The plastic dust cap protect the crimping head from dust.

    Structure Diagram

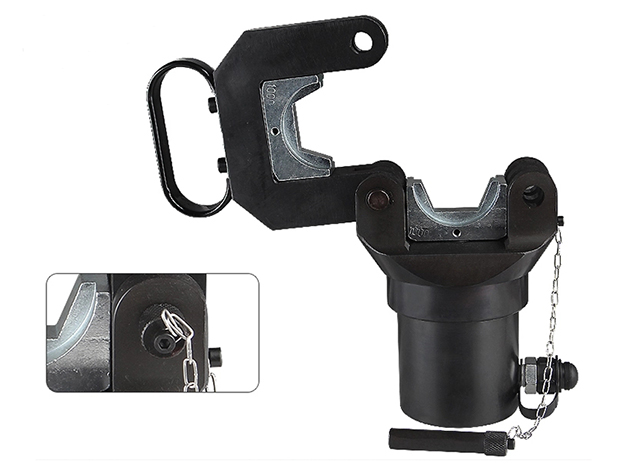

    25 ton 55 ton Hydraulic Crimper Head DetailsCrimping Head of 25~55 Ton Hydraulic Crimper Head, 16~1000mm²

    Dimension Diagram

    Dimension of 25~55 Ton Hydraulic Crimper Head, 16~1000mm²

    Model Ф d1 Ф d2 H L
    T-FYQ-400 79mm 79mm 260mm 49mm
    T-FYQ-500 79mm 79mm 260mm 49mm
    T-FYQ-630 150mm 100mm 300mm 60mm
    T-FYQ-1000 105mm 105mm 360mm 80mm
    Existing reviews
    Todd 11/6/2020 2:20 AM
    The best quality hydraulic clamp
    Although the factory where I work is out of power today, the hydraulic pliers can still be used normally. You only need to use the hydraulic pliers head in conjunction with the hydraulic hand pump to perform crimping without powering on. Even if the power fails, it will not affect the normal operation.
