    3/8" Air Operated Double Diaphragm Pump, 5 GPM

    Miniature air operated double diaphragm (AODD) pump for sale with wholesale price, 5 GPM, selectable cast steel, aluminum alloy and non-metallic body material, 3/8 inch fluid inlet/outlet, 1/4 inch air inlet, suction lift 8 – 10 ft., max. air consumption 9 SCFM, max working pressure 100 PSI.
    SKU: T-AODD-10
    *
    WHOLESALE PRICE - The more you buy, the more you save
    Quantity
    10+
    20+
    50+
    Discount
    2% OFF
    5% OFF
    10% OFF
    $226.39
    i h
    Free shipping
    Delivery date: 6-12 days

    3/8 inch miniature air operated double diaphragm pump has a great many uses, such as such as pumping a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, paint, rubber and paint binders. AODD pump can transport high temperature media up to 150 ℃. The pneumatic dual diaphragm pump is also a useful air tool for cleaning sediment contaminants in shaft, tunnels and sewers.

    Specification

    Model T-AODD-10
    Max. Flow 5.0 GPM (18.9 LPM)
    Max. Working Pressure 100 PSI (0.7 Mpa)
    Fluid Inlet Size 3/8 inch (15mm) NPT
    Fluid Outlet Size 3/8 inch (15mm) NPT
    Air Inlet Size 1/4 inch NPT
    Suction Lift (Dry Suction) 8 - 10 ft. (2.5 - 3m)
    Max. Permitted Grain 0.06 in. (1.5mm)
    Max. Air Consumption 9.0 SCFM
    Every Stroke Flow 0.006 gal. (23cc)
    Every Reciprocating Flow 0.012 gal. (46cc)
    Max. Reciprocating Speed Dry Running 320 cpm
    Wet Running 250 cpm
    Body Structure Material Cast Steel/Aluminum Alloy/Non-Metallic

    Features

    • Air operated double diaphragm pump adopts pilot operated type air valve to eliminate the air tool downtime and extend its service life. All the parts can be replaced when the liquid chamber is not opened.
    • Designed for multiport, the pneumatic dual diaphragm pump can be installed easily.
    • It structures with non-porous embedded diaphragm to improve the usage rate of diaphragm and make it more compact.
    • Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
    • AODD pump can be externally connected to electromagnetic valve for remote control. And the reversing valve requires no lubrication.

    Details

    3/8 inch Air Operated Diaphragm Pump 5 gpm Details 1. Air valve cover
    2. Air valve cover O-ring
    3. Discharge outlet
    4. Colum
    5. Feed inlet
    6. Plug
    7. Small slider
    8. Auxiliary shaft
    9. Auxiliary shaft O-ring
    10. Piston
    11. Piston V-Ring
    12. Pitman shaft O-ring
    13. Air valve chamber gasket
    14. Baffle
    15. Inner clamp
    16. Poly rubber diaphragm
    17. PTFE diaphragm
    18. Outer clamp
    19. Sliding plate
    20. Sliding plate gasket
    21. Pitman shaft
    22. Air valve chamber
    23. Muffler
    24. Ball valve
    25. Ball seat O-ring
    26. Ball seat

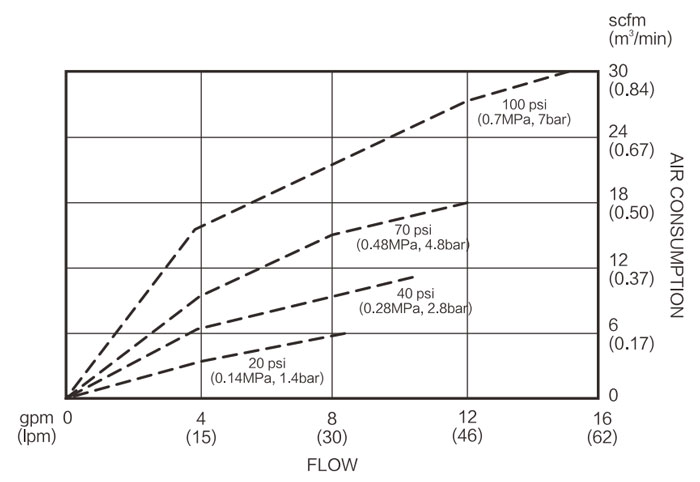

    Diagram of Air Consumption

    3/8 inch Air Operated Diaphragm Pump 5 gpm Diagram of Air Consumption

    Diagram of Fluid Flow

    3/8 inch Air Operated Diaphragm Pump 5 gpm Diagram of Fluid Flow

    Dimension Drawing

    Units: mm

    3/8 inch Air Operated Diaphragm Pump 5 GPM Dimension Drawing

    Applications

    Air Operated Diaphragm Pump Applications

    Tips: Why Choose our 3/8” Air Operated Double Diaphragm Pump?

    Our 3/8” air operated double diaphragm pump has many advantages, which can be applied to various fields, such as sewage disposal, petrochemical industry, food, construction, pharmaceutical, furniture and paint industry. Miniature pneumatic dual diaphragm pump also can be used in the household, such as pumping color paint if you need to paint your house. Here are reasons why you choose our 3/8 inch AODD pumps. 1. The air powered diaphragm pump requires compressed air to work, which will not overheat. Exhaust is the process of heat absorption, the working temperature is reduced with no harmful gas discharge. 2. AODD pump is no need electric power, so it will not generate and electric spark and static spark. 3. Due to AOD pump is the positive displacement type works and the fluid inlet is a ball valve, it is not easy to be blocked. 4. Our pneumatic double diaphragm pump is designed for self-suction, and the fluid flow is adjustable. 5. It can transport fluid in an extremely wide range, from low to high viscosity and from corrosive to viscous. 6. Our pump will be productive all the time, it will not decrease work efficiency as it wears out.
