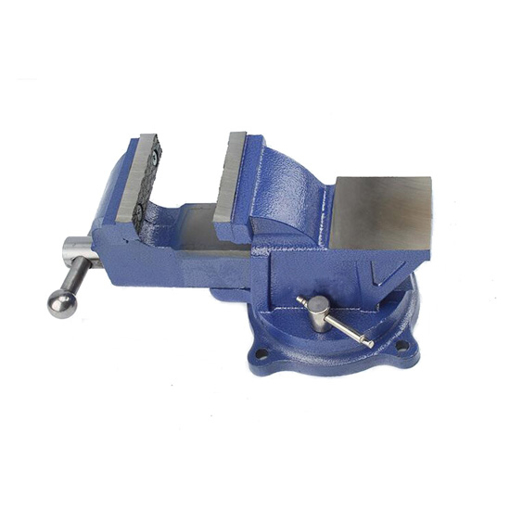

    Swivel Bench Vise, 3-in./4-in./5-in./6-in.

    Light duty bench vise with 360° swivle base, optional sizes 3 inch/4 inch/5 inch/6 inch, cast iron cosntruction with surface finish, high strength and toughness, forged high carbon steel jaw, good hardness and strong clamping force, also comes with an large anvil for convenient use, best bench vice for home use and other light duty use.
    SKU: T-VISE-BV
    *
    WHOLESALE PRICE - The more you buy, the more you save
    Quantity
    20+
    50+
    100+
    Discount
    2% OFF
    5% OFF
    8% OFF
    $147.76
    i h
    Free shipping
    Delivery date: 6-12 days

    Light duty bench vise with selectable sizes 3 in./4 in./5 in./6 in. is constructed with high quality cast iron for added toughness and impact resistance. Designed with heat-treated high carbon steel jaw, it provides tight clamping ability, wear-resistant. The 360 degree swivel base and large anvil make the vice very convenient to use, suitable for home use and other light duty use.

    Specification

    Model T-THQ-3 T-THQ-4 T-THQ-5 T-THQ-6
    Material Cast Iron
    Size 3 inch 4 inch 5 inch 6 inch
    Jaw Width 75mm 100mm  125mm 150mm
    Jaw Depth 50mm 50mm 55mm 65mm
    Jaw Opening 90mm 90mm 90mm 110mm
    Overall Length 235mm 235mm 280mm 280mm
    Overall Height 135mm 135mm 145mm 155mm
    Anvil (L*W) 60*60mm 60*60mm 70*70mm 85*85mm
    Weight 4.4kg 4.6kg 6.2kg 7.9kg

    Note: The sizes are approximate.

    Dimension Drawing

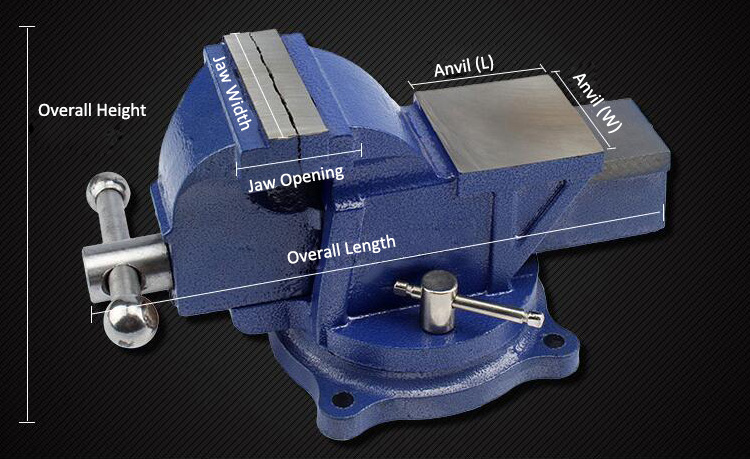

    Swivel Base Bench Vise Dimension Drawing

    Installation Steps

    * The bench vise body and base are separated to avoid the damage during the shipment. Please assemble these parts as follows.

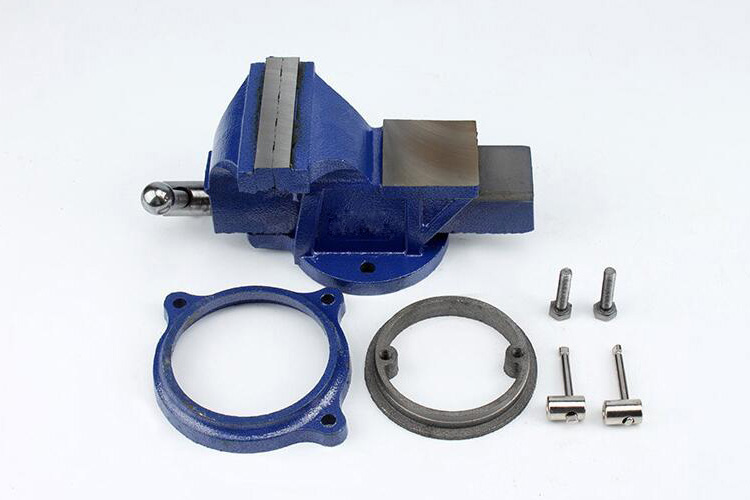

    Swivel Base Bench Vice Parts

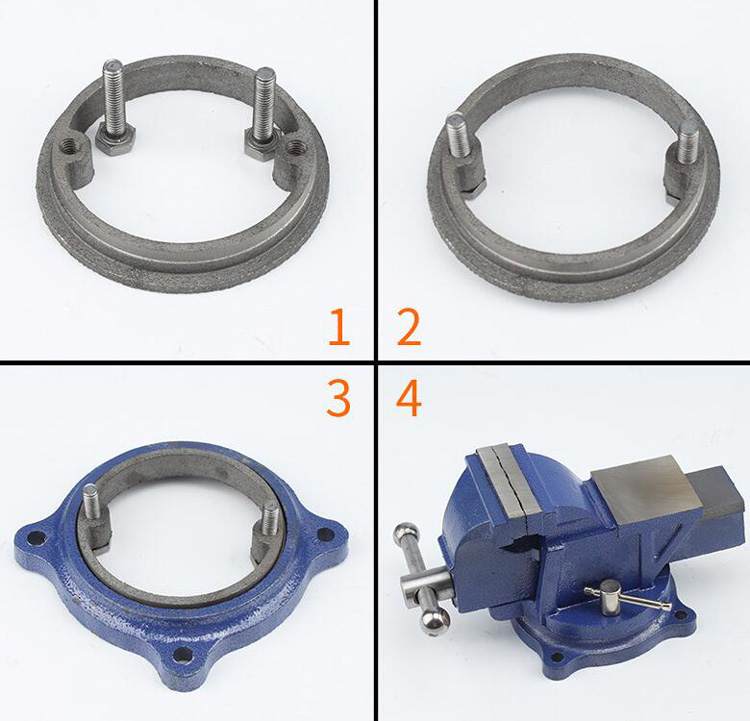

    Light Duty Bench Vise Installation Steps

    Tips: The use of swivel base bench vise

    Except fixed base bench vise, there is also swivel base bench vise. The structure of this swivel base bench vise is basically the same as that of a fixed base bench vise, including a movable jaw, a fixed jaw, a screw rod, a guide nut, a compression ring, a base and a cranking handle. The big difference between this two types of bench vices is the base which is fixed or swivel. The swivel base bench vise is fixed on the workbench to hold the work piece. After loosening the bolts with handles on both sides, the vise can be rotated to any angle required. And then the bolt is tightened to make the vice immobile. When the shape of the workpiece is irregular or the workpiece is not suitable for processing along the vertical vise table, use this swivel base bench vise is more convenient.
